Steel Plate Vacuum Lifter Equipment

Herochu’s reputation for industrial excellence is backed by rigorous third-party validation: every unit is CE, EU, and ISO 9001 certified, ensuring compliance with global safety and quality standards. For workshops operating in regulated industries—from automotive manufacturing to aerospace component production—this certification eliminates compliance risks and guarantees that the equipment meets the strictest performance benchmarks. Whether you’re loading CNC machining centers, unloading laser cutting machines, or managing in-house logistics for large-format panels, you can trust Herochu’s lifter to deliver consistent, reliable results.

Steel Plate Vacuum Lifter Equipment

Herochu Steel Plate Vacuum Lifter Equipment: Elevate Your Workshop Efficiency with Certified, Customizable Solutions

In modern manufacturing and logistics operations, the demand for safe, efficient, and flexible material handling has never been higher. Herochu’s Steel Plate Vacuum Lifter Equipment addresses this need head-on, combining rugged construction, advanced pneumatic technology, and tailored design to streamline the handling of metal sheets, glass panels, PVC boards, and more. Starting at just $1,698, this equipment is not just an investment in productivity—it’s a commitment to workplace safety, operational continuity, and long-term cost savings.

Why Herochu Steel Plate Vacuum Lifter Equipment Stands Apart

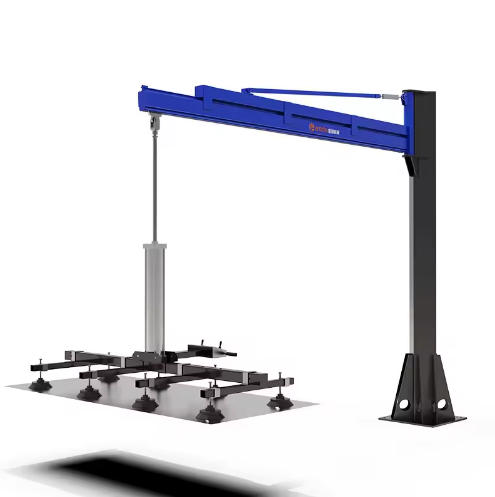

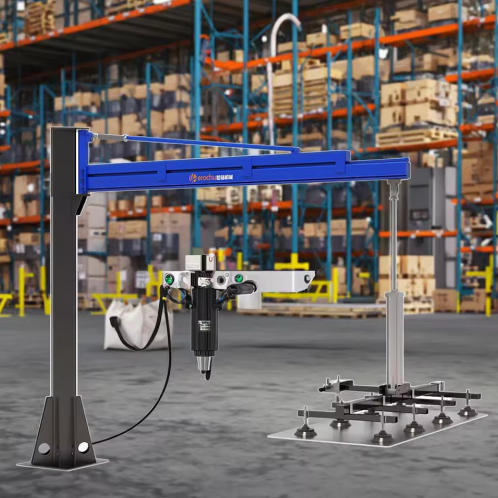

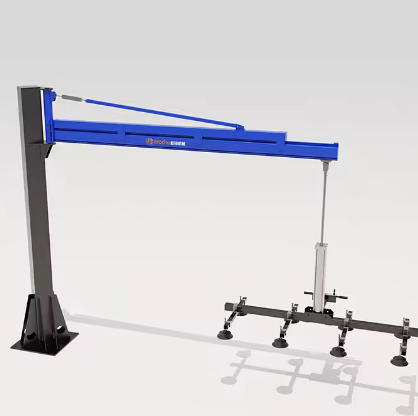

At the core of this equipment is its pneumatic cantilever loading manipulator—a design engineered for lightweight flexibility without compromising strength. Unlike rigid-arm alternatives, Herochu’s manipulator uses flexible cables (wire ropes) and precision pneumatic cylinders to connect its boom, gripper, and suction cup system, enabling faster lifting speeds within the same height constraints. This translates to shorter handling cycles: where manual or outdated systems might struggle to move heavy plates efficiently, Herochu’s lifter completes tasks quickly, reducing downtime and keeping production lines moving.

Operational ease is another defining feature. The manipulator’s lightweight structure requires operators to apply only minimal force, giving them full control over the workpiece’s position in any spatial orientation. This not only reduces operator fatigue—a critical factor in long-shift environments—but also minimizes the risk of human error that can lead to damaged materials or workplace accidents. Additionally, the equipment can be stopped at any position mid-operation, allowing for precise alignment when loading machines or stacking panels, further enhancing process accuracy.

Tailored to Your Workshop: Customization That Fits Your Needs

No two workshops are the same, which is why Herochu’s Steel Plate Vacuum Lifter Equipment is fully customizable to your specific requirements. Whether you’re handling small 1250x1250mm plates or large 4000x1250mm sheets, Herochu offers a range of models designed to match your load capacity, plate thickness, and operational space. Let’s break down the key specifications to help you find the perfect fit:

Model	Feeding Plate Thickness	Max Feeding Width	Min Feeding Width	Max Plate Weight	Number of Suction Cups	Suction Cup Diameter	Power Mode
HC-PR3015-300	8mm	3000*1250mm	1250*1250mm	300kg	8	200	Pneumatic/Electric
HC-PR3015-500	12mm	3000*1250mm	1250*1250mm	500kg	8	200	Pneumatic/Electric
HC-PR3015-1000	20mm	3000*1250mm	1250*1250mm	1000kg	10	250	Pneumatic/Electric
HC-PR4020-300	8mm	4000*1250mm	1250*1250mm	300kg	8	200	Pneumatic/Electric
HC-PR4020-500	12mm	4000*1250mm	1250*1250mm	500kg	8	200	Pneumatic/Electric

Each model features scientifically configured suction cups that adapt to various weight ranges, ensuring secure grip on even the heaviest plates (up to 1000kg for the HC-PR3015-1000). The suction cup diameter—200mm for most models, 250mm for the 1000kg-capacity unit—is optimized to distribute pressure evenly, preventing damage to delicate surfaces like glass or polished metal. For workshops with unique needs, Herochu’s team works directly with you to adjust components such as gripper type (pneumatic, mechanical, or vacuum cup) or control systems, ensuring the equipment integrates seamlessly with your existing workflow.

Safety First: Built to Protect Your Team and Materials

Workplace safety is non-negotiable, and Herochu’s Steel Plate Vacuum Lifter Equipment is engineered with multiple layers of protection. The system includes an air cut-off protection feature: if pneumatic pressure drops unexpectedly, the lifter maintains its grip on the workpiece, preventing accidental drops that could injure operators or damage expensive materials. An integrated anti-collision device further reduces risk by detecting obstacles in the manipulator’s path and triggering a safe stop, avoiding impacts with machinery, walls, or other equipment.

The manipulator’s structure also contributes to safety: its easy disassembly design allows for quick maintenance and inspection, ensuring all components remain in optimal condition. Unlike bulky, hard-to-service lifters, Herochu’s model can be taken apart and reassembled with minimal tools, reducing maintenance downtime and extending the equipment’s lifespan.

Control Systems Designed for Your Operational Style

Herochu recognizes that different workshops rely on different control methods, which is why the Steel Plate Vacuum Lifter Equipment offers three distinct control system options:

Electrical Control System: Ideal for workshops that prioritize precision and automation. This system uses PLC or industrial computer programming to control the manipulator’s movement, lifting, and lowering, allowing for repeatable, error-free tasks. It’s perfect for high-volume operations where consistency is key, such as assembly lines or mass production facilities.

Air-Only Control System: A simplified, reliable option for environments where electrical components may be less practical (e.g., damp or dusty workshops). This system uses pneumatic pressure alone to operate the manipulator, offering straightforward controls that are easy to learn and maintain.

Electric Combined with Pneumatics: The best of both worlds, this hybrid system combines the precision of electrical controls with the ruggedness of pneumatic power. It’s versatile enough to handle complex tasks—like aligning plates for laser cutting—while remaining durable in harsh industrial settings.

Real-World Applications: Where Herochu’s Lifter Makes a Difference

Herochu’s Steel Plate Vacuum Lifter Equipment is designed for versatility, making it a valuable asset across multiple industries:

Metal Fabrication: Handle steel, aluminum, and stainless steel sheets with ease, from raw material storage to CNC machining center loading. The lifter’s secure suction ensures plates stay in place during transport, reducing scrap rates caused by misalignment.

Glass and PVC Manufacturing: Delicate materials like glass panels or PVC sheets require gentle handling—Herochu’s suction cups distribute pressure evenly, preventing cracks or scratches.

Automotive and Aerospace: These industries demand high precision and compliance with strict safety standards. Herochu’s CE/EU/ISO 9001 certified lifters ensure that heavy components (such as car body panels or aerospace parts) are moved safely and accurately.

Invest in Efficiency: Start at $1,698

For workshops looking to boost productivity, reduce labor costs, and enhance safety, Herochu’s Steel Plate Vacuum Lifter Equipment offers unmatched value. Starting at just $1,698, this equipment is an affordable investment that delivers long-term returns—faster handling cycles, fewer material defects, and a safer workplace.

Herochu’s commitment to quality doesn’t end with the sale. Every unit comes with comprehensive support, including installation guidance, operator training, and ongoing maintenance services. Whether you’re a small workshop or a large manufacturing facility, Herochu works with you to ensure your lifter is optimized for your unique needs, helping you stay ahead in today’s competitive industrial landscape.

Don’t let outdated material handling hold your workshop back. Choose Herochu’s Steel Plate Vacuum Lifter Equipment—the certified, customizable solution that elevates efficiency, safety, and performance.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
