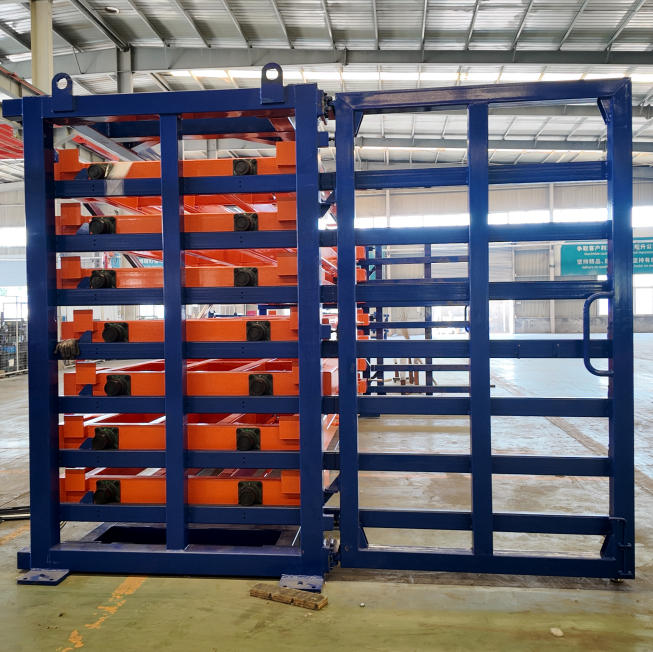

For metal fabrication shop owners, managing cut steel sheets, aluminum remnants, and stainless steel pieces is more than a daily task—it’s a critical factor in controlling costs, maximizing space, and keeping operations running smoothly. Scattered, unorganized metal sheets lead to wasted time, lost materials, and cluttered workspaces that hinder productivity. That’s where the Herochu Steel Plate Racking System comes in: a purpose-built, CE, UE, and ISO 9001 certified solution designed to transform how you store, access, and utilize your sheet metal inventory. Whether you’re a small workshop or a large-scale fabrication facility, this racking system isn’t just storage—it’s an investment in long-term efficiency, cost savings, and professional operations.

Steel plate racking system Sheet metal storage Rack design

Specification

Specifications	Load (single layer)	Size	Layers	Overall dimensions
HC-B3015-63	3t	3000x1500mm	5+1	3505x2280x2000mm
HC-B4015-63	5t	4000x1500mm	5+1	4505x2280x2000mm
HC-B4020-65	5t	4000x2000mm	5+1	4505x2280x2500mm
HC-B6020-66	5t	6000x2000mm	5+1	6505x2280x2500mm
Note: Both manual and electric can be customized, and the load-bearing capacity, length, number of layers, and layer height can be customized.

Herochu Steel Plate Racking System: Elevate Your Fabrication Shop’s Efficiency with Customizable Sheet Metal Storage

What Makes the Herochu Steel Plate Racking System Unique?

Herochu’s HC-B2513-62 model is engineered specifically for the demands of metal fabrication. Unlike generic warehouse racks that struggle to support heavy, flat materials, this sheet metal storage solution is constructed from high-grade steel—ensuring durability, stability, and resistance to the wear and tear of industrial environments. Every component is powder-coated for superior corrosion protection and anti-rust performance, while ESD (Electrostatic Discharge) protection safeguards sensitive metal sheets from damage caused by static buildup. This attention to material quality means your racking system will withstand years of heavy use, even in busy shops where sheets are loaded, unloaded, and moved daily.

But what truly sets Herochu apart is flexibility. We understand no two workshops are the same—your space, inventory size, and workflow are unique. That’s why our Steel Plate Racking System is fully customizable to your workshop’s needs. Choose from multiple configurations: 4-layer, 5-layer, or 8-layer designs to match your storage volume; layer lengths ranging from 2.5m to 6m to accommodate small cut pieces or full-size sheets; and standard sizes including 25001300mm, 30001500mm, 4000x2000mm, and 6000*2000mm (with custom dimensions available upon request). Whether you need cantilevered racks for easy side access, mobile shelving for flexible layout changes, or industrial shelving for stationary storage, Herochu has a setup that aligns with how you work.

Key Benefits: More Than Just Storage—A Game-Changer for Your Shop

1. Maximize Space, Minimize Clutter

Floor space is a precious resource in fabrication shops, and stacking sheets flat wastes it fast. Herochu’s vertical rack design leverages your shop’s height (up to 10-15 feet, depending on ceiling clearance) to free up 30-40% of your floor area—space you can repurpose for machinery, workstations, or additional inventory. Unlike bulky pallet racks that take up unnecessary room, our cantilevered and drive-in pallet rack options tuck neatly into corners or along walls, turning unused vertical space into valuable storage. One mid-sized fabrication client reported reconfiguring their workshop to add two new welding stations after installing Herochu racks—all without expanding their facility.

2. Easy Access, Faster Workflows

Every minute your team spends digging through stacks of metal sheets is a minute lost to production. Herochu’s Steel Plate Racking System eliminates this hassle with intuitive, user-friendly design. Slots and pull-out trays hold sheets securely while keeping them visible and accessible—no more moving heavy piles to find the right piece. Label each slot by size (e.g., “12×24 steel, 1/8” thick”) or material type, and your team can grab what they need in seconds, not minutes. A local fabricator specializing in custom metal parts told us their daily prep time dropped by 15 minutes after installing Herochu racks—adding up to over 60 hours of extra production time per year.

3. Reduce Waste, Boost Cost Savings

Leftover metal sheets are only valuable if you can find and use them. In unorganized shops, these remnants often get forgotten, rusted, or tossed—costing your business hundreds or thousands of dollars annually in wasted materials. Herochu’s racking system keeps every piece visible and organized, so you can maximize the use of cut sheets instead of buying new material. Clients report reducing metal waste by 10-15% within the first year of use. For a shop spending $50,000 annually on steel, that’s $5,000-$7,500 back in your budget—money that can go toward new equipment, employee training, or expanding your services.

4. Durable, Safe, and Compliant

Safety and compliance are non-negotiable in industrial settings—and Herochu’s Steel Plate Racking System delivers on both. With a 2T/Layer capacity, each level easily supports heavy steel sheets without bending or warping, reducing the risk of accidents from falling materials. The powder-coated surface resists scratches, chips, and corrosion, ensuring the rack stays stable and safe even in damp or dusty shop environments. Plus, all Herochu racks are CE, UE, and ISO 9001 certified—meeting strict international standards for quality and safety. This compliance isn’t just a checkbox; it’s peace of mind that your storage solution is built to protect your team and your inventory.

Versatile Designs for Every Workshop Need

Herochu offers multiple rack types to fit your specific storage requirements:

Cantilevered Racks: Ideal for long, heavy sheets (e.g., 6m length) that need side access. Perfect for shops working with large metal plates for construction or industrial projects.

Automated Retrieval Racks: For high-volume facilities, automated systems use mechanical arms to load and unload sheets—reducing manual labor and increasing efficiency.

Drive-In Pallet Racks: Maximize density for bulk storage, allowing forklifts to drive directly into the rack to access sheets. Great for shops with large inventories of standard-size sheets.

Mobile Shelving: If your layout needs to change, mobile racks roll on tracks, letting you create temporary aisles or reconfigure storage as projects demand.

Start Customizing Your Herochu Racking System Today

Every workshop deserves a storage solution that works as hard as your team. Herochu’s Steel Plate Racking System is customizable to your space, budget, and workflow—with prices starting at $9,800. Whether you need a 4-layer rack for small remnants or an 8-layer automated system for bulk storage, we’ll work with you to design a solution that meets your needs.

Invest in a storage system that reduces waste, saves space, and speeds up workflows. Choose Herochu—where quality, efficiency, and customization come together to help your fabrication shop thrive.

Contact our team today to schedule a free workshop assessment and get a personalized quote for your custom Steel Plate Racking System.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
