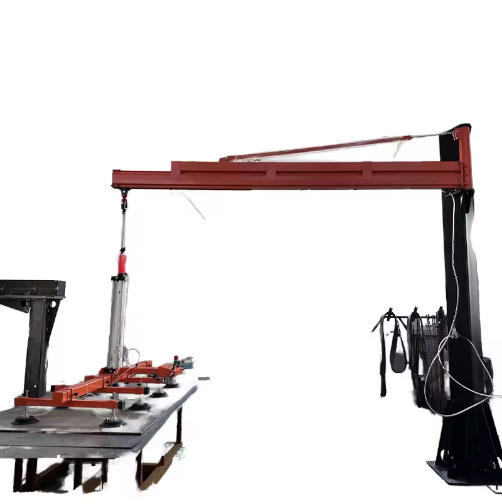

Herochu’s Steel Plate Pneumatic Cantilever Loading and Unloading Arm Handling Manipulator stands out for its precision-engineered design, versatility, and focus on solving real-world industrial challenges. At its core, this pneumatic manipulator features a cantilever retractable structure— a game-changer for space-constrained facilities—paired with reliable pneumatic/electric power modes that ensure smooth, consistent operation. Unlike rigid, one-size-fits-all material handling equipment, Herochu’s solution is built to adapt: it can be fully customized to match your workshop’s layout, material types, and production volume, making it ideal for small-scale workshops and large manufacturing plants alike.

Steel plate pneumatic cantilever loading and unloading arm Handling Manipulator

Herochu Steel Plate Pneumatic Cantilever Loading and Unloading Arm Handling Manipulator: Redefine Industrial Material Handling

In the competitive landscape of industrial manufacturing—from metal fabrication to large-scale sheet processing—efficient, safe, and space-saving material handling is the backbone of productivity. Manual loading and unloading of steel plates, pipes, or profiles not only drains labor resources and extends production cycles but also exposes workers to heavy lifting injuries and costly material damage. Enter the Herochu Steel Plate Pneumatic Cantilever Loading and Unloading Arm Handling Manipulator—a CE, UE, and ISO 9001 certified solution engineered to automate material handling, slash labor costs, and maximize space utilization, all while delivering consistent, reliable performance.

With customizable designs tailored to your workshop layout and production needs, and prices starting from just $3,200, this pneumatic manipulator is not just an equipment upgrade—it’s a strategic investment for businesses looking to scale, reduce waste, and meet the demands of high-volume, time-sensitive orders.

What Sets the Herochu Pneumatic Cantilever Handling Manipulator Apart?

Certified to CE, UE, and ISO 9001 standards, every component undergoes rigorous quality testing to meet global safety and performance benchmarks. This means you get a manipulator that not only boosts efficiency but also minimizes operational risks—critical for maintaining compliance and protecting your team.

Key Technical Specifications: Built for Versatility and Durability

Herochu offers a range of models (HC-RP3015-300, HC-RP3015-500, HC-RP3015-1000, HC-RP4020-300, HC-RP4020-500) to suit diverse material handling needs, each designed to handle steel plates, pipes, profiles, and even non-metallic materials like wood or plastic. Below is a breakdown of their core specifications, aligned with real-world production demands:

Model	Feeding Plate Thickness	Maximum Feeding Width	Minimum Feeding Width	Maximum Plate Weight	Number of Suction Cups	Suction Cup Diameter	Power Mode
HC-RP3015-300	8mm	3000*1250mm	1250*1250mm	300kg	8	200	Pneumatic/Electric
HC-RP3015-500	12mm	3000*1250mm	1250*1250mm	500kg	8	200	Pneumatic/Electric
HC-RP3015-1000	20mm	3000*1250mm	1250*1250mm	1000kg	10	250	Pneumatic/Electric
HC-RP4020-300	8mm	4000*1250mm	1250*1250mm	300kg	8	200	Pneumatic/Electric
HC-RP4020-500	12mm	4000*1250mm	1250*1250mm	500kg	8	200	Pneumatic/Electric

Across all models, the manipulator maintains a maximum feeding format of 40001500mm and a minimum of 12501250mm, ensuring compatibility with most standard industrial materials. The high-quality suction cups (8–10 per model, with diameters up to 250mm) provide strong, stable grip—even for heavy 1000kg plates—while the pneumatic/electric power mode balances speed and energy efficiency.

Core Benefits: Transform Your Production Workflow

The Herochu Steel Plate Pneumatic Cantilever Loading and Unloading Arm Handling Manipulator isn’t just about moving materials—it’s about redefining how your facility operates. Here’s how it delivers tangible value:

1. Unmatched Space Utilization: Maximize Every Inch

Traditional fixed shelves waste valuable floor space, especially when storing long materials like pipes, profiles, or timber. Herochu’s cantilever retractable design solves this by allowing shelves to adjust to different material lengths. Whether you’re storing 3-meter pipes or 1.5-meter steel plates, the manipulator’s flexible structure ensures you use every inch of available space—reducing clutter, improving workshop organization, and eliminating the need for costly facility expansions. For businesses operating in compact spaces, this feature alone can increase storage capacity by up to 30%.

2. Automated, Continuous Operation: Cut Cycle Times

Time is money in manufacturing, and manual loading/unloading is a major bottleneck. Herochu’s manipulator integrates seamlessly with laser cutting machines and other production equipment to deliver fully automated, continuous loading operations. It uses pneumatic or vacuum adsorption (paired with mechanical precision) to grip, carry, and place materials with zero human intervention. The system can even automatically identify material position, size, and shape via preset programs, ensuring accurate positioning for laser cutting—cutting loading time by 50% or more. This means faster production cycles, higher unit output, and the ability to meet tight deadlines for urgent orders.

3. Superior Safety: Protect Your Team and Materials

Manual handling of heavy steel plates (up to 1000kg) poses significant risks—strains, cuts, and material drops are common hazards. Herochu’s manipulator eliminates these risks with built-in safety features: air cut-off protection (prevents sudden drops if air pressure fails) and anti-collision devices (avoids damage to materials or equipment). The light structure and easy disassembly also reduce maintenance-related injuries, while the consistent mechanical operation minimizes material scratches or dents—saving you from costly rework or waste.

4. Versatility: Handle All Your Material Needs

One of the biggest advantages of this manipulator is its flexibility. It easily copes with all types of sheet and pipe loading needs: whether you’re handling thin 1mm steel plates, thick 20mm metal sheets, or non-metallic materials like wood or plastic, the adjustable suction cups and customizable settings ensure stable, efficient handling. This eliminates the need to invest in multiple specialized machines—saving you money and simplifying your workflow.

5. Dramatic Labor Cost Savings: Do More with Less

Manual material handling requires a dedicated team to lift, carry, and position heavy loads—often with one worker per machine. Herochu’s manipulator replaces this labor-intensive process with automation: operators only need to set up preset programs, monitor operations, and perform simple start/stop actions. The result? One person can manage multiple machines, reducing your labor force requirements by up to 70%. For example, a facility that previously needed 4 workers to handle 2 laser cutting machines can now operate 4 machines with just 1 operator—slashing labor costs while increasing output.

Customization: Built for Your Workshop

No two workshops are identical, and Herochu understands that off-the-shelf equipment often falls short. Our team of experienced engineers works closely with you to assess your unique needs: whether you have limited floor space, specialized material sizes, or specific integration requirements with existing equipment, we customize every aspect of the manipulator—from shelf adjustability to suction cup configuration—to ensure optimal performance. And with customized pricing starting at $3,200, this solution is accessible to businesses of all sizes, from small fabricators to large-scale manufacturers.

Why Choose Herochu?

Herochu has a decades-long track record of delivering high-quality, reliable industrial automation solutions to clients worldwide. Our Steel Plate Pneumatic Cantilever Loading and Unloading Arm Handling Manipulator is backed by:

Global Certifications: CE, UE, and ISO 9001 compliance, ensuring safety and quality.

End-to-End Support: From design and customization to installation, training, and after-sales service, our team is with you every step of the way.

Proven Performance: Thousands of clients have used Herochu’s manipulators to reduce costs, increase efficiency, and scale their operations.

Ready to Elevate Your Material Handling?

Don’t let manual labor, wasted space, and slow production cycles hold your business back. The Herochu Steel Plate Pneumatic Cantilever Loading and Unloading Arm Handling Manipulator is your ticket to a more efficient, safe, and profitable operation. Whether you’re looking to streamline laser cutting workflows, reduce labor costs, or maximize storage space, this certified, customizable solution delivers results—fast.

Contact Herochu today to discuss your workshop’s unique needs, request a personalized quote, and take the first step toward transforming your material handling process. Your more efficient future starts here.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
