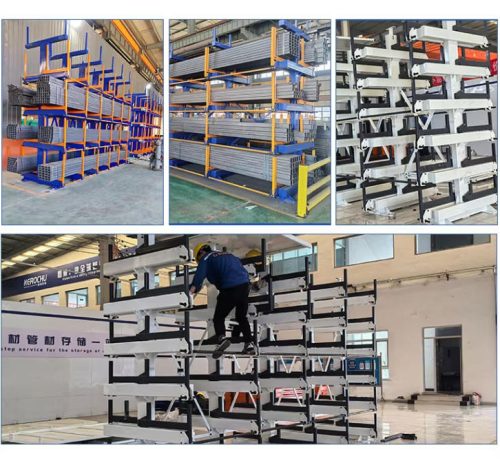

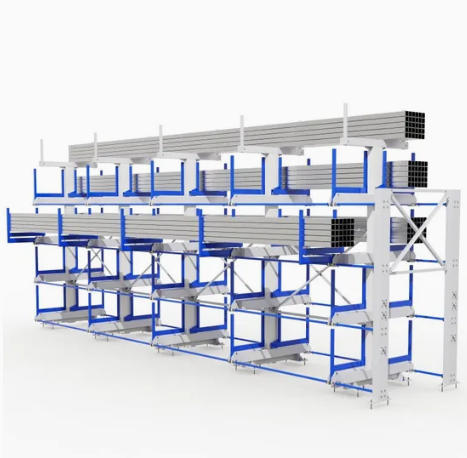

Herochu’s steel pipe racking system is built around the proven cantilever design, a structure optimized for horizontal, elongated items that defy standard pallet storage. Unlike conventional shelving, which relies on horizontal beams spanning between uprights, our cantilever racks feature sturdy, extended arms mounted to vertical columns—eliminating front-facing supports that block access to pipes and profiles. This design ensures direct, unobstructed access to every stored item, whether you’re retrieving a single steel pipe for a fabrication job or organizing hundreds of plastic tubing lengths for a plumbing project.

Category Pipe Storage Rack Tags Pipe storage rack design, Steel pipe racking system

Steel pipe racking system Pipe storage rack design

Herochu Steel Pipe Racking System: Customizable Cantilever Storage for Industrial Efficiency

In industrial workshops, logistics centers, and manufacturing facilities, storing long, bulky items like steel pipes, metal profiles, and plastic tubing often presents a unique challenge—traditional shelving fails to accommodate their length, while disorganized storage wastes space and risks damage. Herochu’s steel pipe racking system solves this problem with precision-engineered pipe storage rack design tailored to the unique demands of long-load storage. Certified to CE, EU, and ISO 9001 standards, our industrial cantilever racks deliver the durability, accessibility, and flexibility modern operations require, with customizable configurations starting at $3,099.

Engineered for Long-Load Versatility

Crafted from high-grade structural steel, each component—from the reinforced base plates to the heavy-duty cantilever arms—undergoes rigorous testing to meet global safety and quality standards. The system’s modular construction means it adapts to your workshop’s unique layout: whether you need a compact 2-tier setup for a small machine shop or a 6-tier, wall-mounted configuration for a large logistics hub, Herochu’s design team customizes the rack height, arm length, and load capacity to match your needs. For outdoor storage, we offer weather-resistant coatings and optional canopies to protect both the racking and your inventory from rain, UV exposure, and corrosion.

Key Benefits of Herochu’s Pipe Storage Rack Design

1. Tailored to Your Workshop

No two facilities are the same—and neither are their storage needs. Our steel pipe racking system is fully customizable: adjust arm spacing to fit 2-inch diameter steel pipes or 12-inch plastic tubing, add extra columns for heavier loads (up to 5,000 lbs per arm), or opt for mobile bases to maximize floor space. Whether you’re a woodworker storing lumber, a mechanical contractor organizing aluminum bars, or a construction firm managing PVC piping, our design adapts to your inventory.

2. Unmatched Accessibility & Visibility

Traditional shelving forces workers to move items around to reach what’s behind—wasting time and increasing the risk of damage. Herochu’s cantilever design eliminates this frustration: every pipe or profile is visible at a glance, and you can retrieve items from the front or side without disturbing adjacent stock. This efficiency is a game-changer for busy workshops, where minimizing downtime directly impacts productivity.

3. Quick, Flexible Installation

Our steel pipe racking system uses a boltless, interlocking design that simplifies assembly—no welding or specialized tools required. A small team can set up a basic configuration in hours, and the modular structure makes future adjustments easy: add arms, extend columns, or reconfigure the layout as your inventory grows. This flexibility ensures your storage system evolves with your business, avoiding the need for costly replacements down the line.

4. Space Optimization

Long loads often take up unnecessary floor space when stored horizontally on the ground. Herochu’s vertical cantilever design maximizes vertical storage, freeing up square footage for other equipment or operations. For facilities with limited space, our mobile cantilever racks feature locking casters that let you compact the system when not in use, then roll it open for easy access—ideal for warehouses that handle seasonal inventory spikes.

5. Certified Safety & Durability

Safety is non-negotiable in industrial settings, which is why every Herochu steel pipe racking system carries CE, EU, and ISO 9001 certifications. The design includes vertical bracing, anti-tip stabilizers, and arm locks to prevent accidental dislodgment, even when loading heavy pipes with a forklift. The steel components are treated with a corrosion-resistant finish, ensuring the racking maintains its structural integrity for years—even in harsh workshop environments.

Industries We Serve

Herochu’s pipe storage rack design is a staple across sectors that handle long, bulky loads:

Manufacturing: Store steel bars, aluminum profiles, and machine parts in mechanical workshops.

Construction & Plumbing: Organize PVC, copper, and steel piping for easy job-site retrieval.

Woodworking & Furniture: Keep lumber, beams, and paneling accessible and damage-free.

Logistics & Warehousing: Manage non-palletized items like ceramic sheets, paper rolls, and metal panels.

Automotive: Store exhaust pipes, chassis components, and long metal parts in assembly facilities.

Why Choose Herochu?

When you invest in a Herochu steel pipe racking system, you’re not just buying storage—you’re investing in a solution that reduces waste, improves efficiency, and protects your inventory. Our team works with you to assess your workshop’s layout, inventory dimensions, and load requirements, delivering a custom design that fits your budget (starting at $3,099) and exceeds your expectations. Backed by global certifications and a commitment to quality, Herochu’s cantilever racks are the reliable choice for businesses that demand more from their storage.

Ready to optimize your pipe storage? Contact our team today to discuss your customization needs and get a tailored quote.
