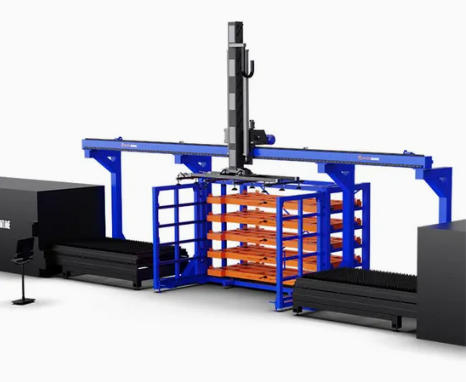

Solve Labor Shortage & Boost Output: Automated Sheet Handling Robot for Laser Cutters

Are you struggling to find skilled labor for your sheet metal fabrication shop? Is your high-value laser cutting machine sitting idle during material loading and unloading? Are manual handling processes causing scratches on pristine sheets, leading to costly rejects and rework? If you nodded yes to any of these questions, you are not alone. These are the pervasive challenges that plague modern manufacturers. The solution lies in strategic automation designed specifically for the laser cutting process. We introduce our game-changing Manufactory Direct PLC Control Automatic Taking Gantry Robot – the definitive answer to your production bottlenecks and quality concerns.

Turning Your Pain Points into Competitive Advantages

Let’s address the core issues head-on and see how our automated system provides a concrete solution:

• Problem: High Labor Costs & Shortage.

  • Solution: Full Unattended Operation. This system is designed for “lights-out” manufacturing. Once programmed, it runs autonomously. Imagine your laser cutter producing parts all night, over the weekend, or even during lunch breaks without a single operator. This dramatically increases your machine utilization and output while freeing your skilled workforce for higher-value tasks like programming, quality control, and assembly.

• Problem: Inconsistent Throughput & Bottlenecks.

  • Solution: A Perfectly Synchronized Production Cell. The system creates a seamless flow. The loading truss manipulator fetches a new sheet while the unloading truss manipulator simultaneously clears the finished work from the previous job. This synchronized dance eliminates the dead time between cycles, ensuring your laser cutter is cutting metal, not waiting for an operator. This consistent, high-speed cycle time guarantees a predictable and significantly higher throughput.

• Problem: Material Damage & Safety Risks.

  • Solution: Precision Handling with Zero Compromise. Manual handling of large, sharp sheets is dangerous and prone to causing scratches and dings. Our gantry robots handle materials with gentle, programmed precision. Vacuum cups or magnetic grippers ensure secure contact without marring the surface, virtually eliminating handling-related quality issues. This also creates a safer work environment by removing operators from the direct path of heavy loads and machinery.

How It Works: Simplifying Complex Automation

The beauty of this system is in its logical and robust design. The process is straightforward:

1. Store: Raw sheets are securely stored in the three-dimensional storage warehouse, a compact, high-bay racking system that can hold up to 3,000kg of material.

2. Retrieve: The PLC system, upon receiving a job order, directs the automatic taking gantry to retrieve the specified sheet from its location.

3. Load & Cut: The loading manipulator places the sheet perfectly onto the laser bed. The laser cutter executes its program.

4. Unload & Sort: Simultaneously, the unloading manipulator removes the cut parts and skeleton, deftly placing them onto the double-layer finished material truck for easy collection.

This closed-loop process manages everything from automatic discharging to automatic splitting, creating a truly hands-off operation.

Built for Real-World Shops: Rugged and Reliable

We’ve engineered this system for the demanding environment of a fabrication shop. With options for 8 to 13 floors and a massive load per layer of 3T or 5T, it can handle the volume of even the busiest shops. Available in common laser bed sizes like 3015, 4020, and 6020, it integrates directly with your existing equipment. With modest utility requirements (1.5m³/min air consumption at 0.6-0.7Mpa), it’s a practical and efficient addition to any facility.

Stop letting manual processes limit your growth and profitability. Embrace the automation that solves your most pressing problems. Our Gantry Robot for Laser Cutting is more than equipment; it’s your strategic partner in building a more resilient, productive, and profitable manufacturing business.
