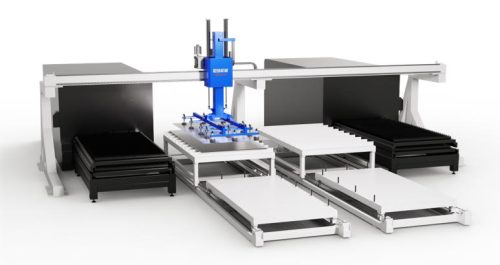

Single gantry one tow two automatic feeding manipulator

Single gantry one tow two automatic feeding manipulator

Single gantry one tow two automatic feeding manipulator

Herochu Automated Laser Cutting System – Smart Sheet Metal Production Line

Complete Automation Solution for Precision Laser Cutting

Our integrated laser cutting system combines advanced robotics with intelligent controls to create a seamless automated production unit. Designed for manufacturers seeking to maximize efficiency, this turnkey solution handles all aspects of sheet metal processing with unmatched precision.

System Components:

✔ Laser Cutting Machine

High-speed precision cutting
Energy-efficient operation
Multi-material compatibility

✔ Truss Manipulator Loading System

Heavy-duty robotic arm (300-1000kg capacity)
±0.1mm positioning accuracy
Anti-collision safety features

✔ Intelligent Control Systems

CNC automation for precise operation
Vacuum control with pressure monitoring
User-friendly HMI interface

Key Benefits:

40% Faster Production – Continuous automated feeding
30% Cost Reduction – Minimized labor requirements
24/7 Operation – Maximized equipment utilization
Zero Material Damage – Gentle vacuum handling

Technical Specifications:

Parameter	Specification
Machine Size	3015/4015/4020/6015/6020mm
Max Load Capacity	300-1000kg
Air Consumption	1.5m³/min
Operating Pressure	0.6-0.7Mpa
Positioning Accuracy	±0.1mm
Power Requirements	380V/50Hz

Industry Applications:

Automotive component manufacturing
Electrical cabinet production
Industrial machinery parts
HVAC equipment fabrication

Why Choose Our System?

Plug-and-Play Integration – Works with existing laser cutters
Smart Adaptive Control – Auto-adjusts for different materials
Low Maintenance Design – Easy-access service points
Energy Efficient – Optimized air consumption

Special Offer: Free productivity assessment with system demonstration!

(Herochu Automation – Precision Engineering for Smart Factories)

Sheet Metal Handling Equipment technical parameters

Specification	3015/4015/4020/6015/6020mm
Maximum load	300KG-1000KG
Air consumption	1.5m³/min
Air source	0.6-0.7Mpa
