Sheets Handling Manipulator for Steel Plates: Servo Swing Steel Plate Manipulator with Suction Crane

In the realm of metal processing and heavy manufacturing, the movement of steel plates is a critical, yet often challenging, operation. Traditional methods relying on overhead cranes with chains or magnets often lack the precision and speed required for modern just-in-time manufacturing. The Sheets Handling Manipulator for Steel Plates has emerged as the superior alternative, combining the lifting power of a crane with the dexterity of a robotic arm. Specifically, the Servo Swing Steel Plate Manipulator equipped with a sophisticated Suction Crane system offers an unprecedented level of control. This article provides a comprehensive look at this specialized equipment, exploring its mechanical architecture, safety features, and its role in enhancing both productivity and workplace safety.

Mechanical Architecture: The Servo Swing Arm

The defining characteristic of this equipment is its unique motion system. The entire equipment is composed of the main body of the swinging-arm mechanical hand, which provides a broad work envelope while maintaining a relatively small footprint. This design allows the arm to swing in an arc, covering multiple workstations such as a storage rack, a conveyor, and a processing machine.

The precision of the movement is derived from the servo swinging-arm positioning transmission. This system ensures that the arm stops exactly where it is programmed to, with no overshoot or drift. This is crucial for a Sheets handling manipulator for steel plates, as even a slight misalignment can cause damage to the material or the equipment. The large-torque servo synchronous lifting mechanism complements this by providing smooth, controlled vertical motion, handling the full 1000kg capacity without jerking or swaying.

The Suction Crane System: Grip and Versatility

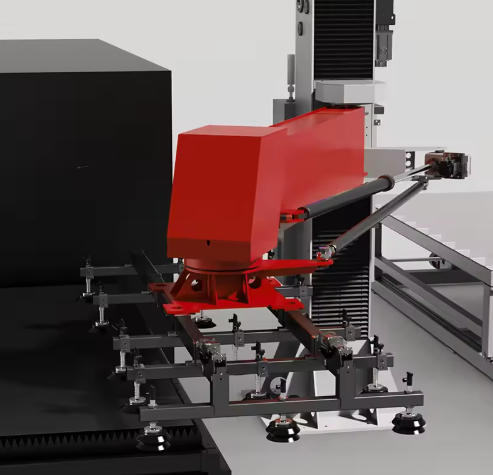

The end-of-arm tooling is what truly makes this machine a Servo Swing Steel Plate Manipulator with Suction Crane. It utilizes multiple sets of heavy-load oil-resistant suction cups. These cups are engineered to maintain their grip on surfaces that may be covered in mill scale, rust preventatives, or cutting fluids. The oil-resistant property is essential for longevity and reliability in a metalworking environment.

Operational flexibility is provided by the fact that each suction cup is equipped with an opening and closing valve. This feature allows the machine to adapt to various sheet sizes. For a full-size plate, all cups are active. For a smaller blank, the operator can close the valves on the unused cups, ensuring that the vacuum system maintains maximum efficiency. This adaptability makes the machine suitable for a wide range of applications, from unloading raw steel plates from a stack to feeding a laser cutter or press brake.

Safety Protocols: Beyond Standard Compliance

When handling heavy steel plates, safety is not a feature to be added; it is a core design principle. This machine integrates an SNS pneumatic system alongside a power-off safety protection system. The effectiveness of this system is demonstrated by a critical safety guarantee: when the device is running, if the power is off or the air is cut off, the material will not fall from the suction cup within 5 minutes. This is a vital safety margin that allows operators to safely clear the area or address the emergency without the immediate threat of a dropped load.

In addition to this active safety system, the device is equipped with passive safety features. It is affixed with safety warning labels, maintenance labels, and operation instructions for key steps. These visual cues ensure that even temporary operators or visitors are aware of the potential hazards and safe operating procedures. The emergency stop braking system provides a final layer of protection, allowing for immediate cessation of motion.

Control System and User Interface

Precise mechanical systems require equally precise control. This machine is powered by an original imported Omron numerical control system and electrical system. Omron is a global leader in industrial automation, and their components are known for their reliability and performance. The electrical system manages the complex coordination between the servo drives, the pneumatic valves, and the user interface.

The device has two operating states, manual and automatic. This dual-mode capability is essential for both process setup and production. In manual mode, the operator uses a pendant or the touchscreen to teach positions. In automatic mode, the machine repeats these positions with high precision. The button function identifier is in Chinese and English, making the machine accessible to a global workforce. The touchscreen and PLC communicate by a network cable, ensuring fast, reliable data exchange.

Maintenance, Installation, and Operational Benefits

A machine of this caliber is designed for longevity and ease of service. All gas pipes required by the device use red (orange) and blue pipes, with blue indicating the supply line and red the exhaust or output. This standard color-coding is a simple but effective maintenance aid. All gas pipe connectors are labeled for correct identification and maintenance, allowing technicians to quickly trace circuits and perform repairs with minimal downtime.

The value of proper installation cannot be overstated. The product installation is guided by experienced technical engineers throughout the process. They manage the installation and debugging, ensuring that the Servo Swing Steel Plate Manipulator is perfectly aligned with the surrounding workstations and that the control parameters are tuned for the specific application.

The operational advantages of this system are clear. As a servo-driven machine, it offers fully automated and unmanned operation, high precision, increased production capacity, and cost savings. By automating the handling of heavy plates, it eliminates the need for multiple workers to manually maneuver materials, significantly reducing labor costs and the risk of back injuries. The consistent, precise placement of materials also improves the quality of downstream processes, reducing waste and rework.

Conclusion

The Sheets Handling Manipulator for Steel Plates represented by this Servo Swing Steel Plate Manipulator with Suction Crane is a pinnacle of material handling technology. It combines the robust lifting capacity required for heavy industry with the finesse of servo-controlled automation. With its comprehensive safety systems, intuitive controls, and focus on easy maintenance, it provides a solution that not only improves the bottom line through efficiency gains but also creates a safer, more manageable work environment. For any facility working with steel plates, this machine is a strategic asset that delivers a rapid return on investment.
