Sheet metal racking system

Herochu Sheet Metal Racking System – Engineered for Precision, Built for Productivity

In modern metal fabrication environments—where uptime, safety, and spatial efficiency define operational success—the Herochu Sheet Metal Racking System emerges not just as storage, but as a strategic asset. Designed specifically for heavy-gauge sheet metal handling, this all-welded, industrial-grade racking solution transforms how workshops manage raw materials, streamline workflows, and protect their most valuable resource: people.

Starting at $5,680, the Herocu Sheet Metal Racking System is fully customizable to your facility’s layout, machinery footprint, and material specifications. Certified to CE, UE, and ISO 9001 standards, every unit reflects a commitment to quality, durability, and compliance—without compromising on adaptability.

---

Why Standard Shelving Falls Short in Metal Fabrication

Traditional pallet racks or bolt-together shelving simply aren’t engineered for the unique demands of sheet metal storage. Sheets are large, unwieldy, and prone to warping if improperly supported. Forklifts used for material changes introduce bottlenecks, safety risks, and floor congestion. Worse, manual handling of multi-hundred-pound plates leads to strain injuries and inconsistent workflow pacing.

Herochu’s system solves these problems at the source—not by adding more equipment, but by rethinking storage itself.

---

All-Welded Construction Meets Full-Extension Functionality

Each Herochu racking unit features all-welded steel construction, eliminating bolts, clips, or weak joints that degrade under repeated stress. The standard height stands at 84 inches (7 feet), with configurations offering 4 to 8 shelves—each engineered for full 100% extension via four heavy-duty roller bearings. This isn’t partial pull-out; it’s complete access, allowing operators to retrieve any sheet from front to back without shifting adjacent loads.

With a per-shelf capacity of up to 5,500 lbs (2.5 metric tons)—and custom models supporting 3T, 5T, and even 6T per layer—the system accommodates everything from thin-gauge stainless to thick carbon steel plates. Optional steel decking provides uniform support across the entire surface, preventing edge sagging and maintaining flatness critical for downstream processes like laser cutting or CNC punching.

Vertical clearances between shelves range from 5 7/8″ to 15 9/32″, ensuring compatibility with varied material thicknesses while maximizing usable height. The bottom shelf sits 355 mm above ground, facilitating easy cleaning and integration with automated guided vehicles (AGVs) or floor-mounted conveyors.

---

Optimized for Integration—Not Just Storage

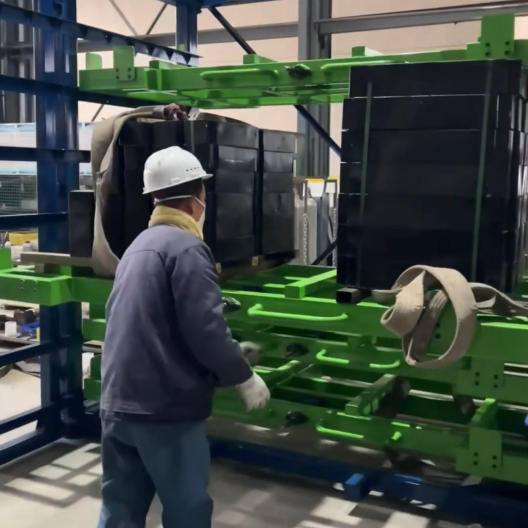

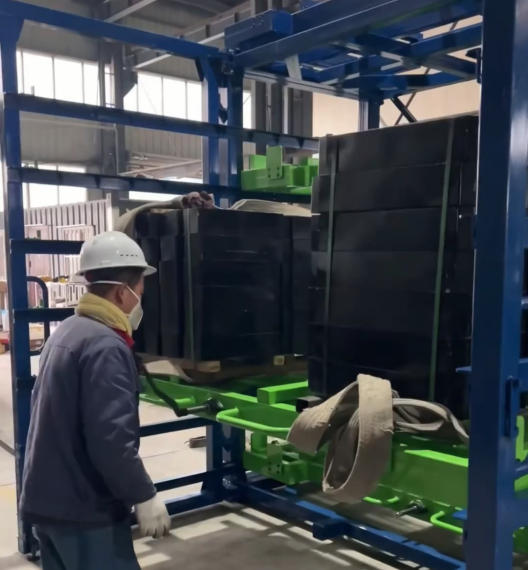

The real innovation of the Herochu system lies in its role as a workflow enabler. Position a unit directly beside your shear, laser cutter, turret punch press, or plasma table, and you eliminate the lag between material staging and processing. No more waiting for a forklift operator. No more double-handling sheets. Just seamless, crane-assisted loading and unloading.

Because the racks are designed for overhead crane compatibility, aisle space traditionally reserved for forklift maneuvering can be reclaimed—sometimes reducing required floor area by up to 30%. In high-density facilities, this translates to room for additional machines, workstations, or safer pedestrian pathways.

Moreover, by storing multiple sheet types vertically—organized by grade, thickness, or job order—operators gain instant visual and physical access without rummaging through horizontal stacks. This reduces setup time during changeovers and minimizes errors in material selection.

---

Technical Precision, Custom Flexibility

Herochu offers a range of standardized models—including HC-B3015-63, HC-B4020-65, and HC-B6020-66—each denoting specific dimensions and capacities. For example:

• HC-B3015-63: 3000mm x 1500mm plate size, 6 layers + base, 3-ton capacity
• HC-B6020-66: 6000mm x 2000mm plates, 6+1 layers, 6-ton rating

But standard doesn’t mean rigid. Every dimension—length (2.5m to 6m), width, layer count, color, and load rating—can be tailored. Need a unit that fits into a narrow bay beside a robotic arm? Done. Require corrosion-resistant powder coating for coastal humidity? Included. Want integrated labeling panels or RFID tracking mounts? Feasible.

External dimensions are meticulously calculated to ensure door clearance (e.g., 3515mm when open) and ceiling compatibility. Top shelf heights stay below 2250mm, keeping low for stability while allowing crane hook access. All units use an integrated pull-out drawer mechanism, smooth-gliding yet robust enough for daily industrial abuse.

---

Safety, Compliance, and Long-Term Value

Beyond productivity, the Herochu system prioritizes operator safety. By removing the need for manual lifting or precarious stacking, it significantly reduces the risk of musculoskeletal injuries—a leading cause of lost-time incidents in metal shops. The powder-coated finish resists rust and chipping, while optional ESD protection safeguards sensitive materials in electronics-focused fabrication.

Certifications aren’t just paperwork here. CE and ISO 9001 compliance means every weld, bearing, and structural member undergoes rigorous testing for load integrity, fatigue resistance, and dimensional accuracy. This isn’t “good enough” engineering—it’s precision manufacturing applied to storage infrastructure.

And because the racks are built from high-grade steel with anti-corrosion treatment, they deliver decades of service with minimal maintenance. No folding mechanisms to jam. No plastic components to crack. Just reliable, day-in-day-out performance.

---

Real Impact: From Storage Rack to Strategic Advantage

Facilities using the Herochu Sheet Metal Racking System report:

• Up to 40% reduction in machine downtime during material changeovers
• Elimination of dedicated forklift labor for sheet handling
• 20–35% gain in usable floor space through vertical consolidation
• Fewer workplace injuries related to manual sheet transport

This isn’t theoretical efficiency—it’s measurable ROI. At a starting price of $5,680, the system often pays for itself within 12–18 months through labor savings, reduced damage to materials, and increased throughput.

---

Choose Smart Storage. Choose Herochu.

Whether you run a job shop with mixed-material workflows or a high-volume production line cutting identical blanks, the Herochu Sheet Metal Racking System adapts to your reality—not the other way around. It’s not just about holding metal; it’s about accelerating your entire fabrication ecosystem.

Explore standard configurations or collaborate with Herochu’s engineering team for a fully customized solution. With global shipping, technical support, and modular scalability, your ideal storage setup is closer than you think.

Reimagine your workshop. Reclaim your space. Restore flow to your floor.
Herochu—Where Heavy-Duty Meets High-Efficiency.
