Sheet Metal Material Handling Manipulator

Unshackle Your Laser Cutter: The Herochu Manipulator and the Rise of the Hands-Free Workshop

Imagine this: your laser cutting operator is not heaving a sheet of stainless steel onto the bed. They are not wrestling with a crane, not double-checking alignment pins, and not catching their breath before starting the cycle. Instead, they are across the shop, deburring finished parts from the last job. Or they are programming the next complex cut file. Or they are simply monitoring the symphony of automation as your laser cutter hums along, its material flow managed with robotic consistency. This isn’t a scene from a futuristic factory; it’s the operational reality delivered by the Herochu Sheet Metal Material Handling Manipulator.

In modern metal fabrication, the laser cutter is the beating heart of production. Yet, its potential is often strangled by its most primitive dependency: manual loading. The process of moving raw sheet metal from a rack to the cutting bed is a relentless cycle of downtime, physical strain, and hidden costs. It creates a bottleneck that limits your machine’s output, jeopardizes your team’s safety, and caps your profitability.

The Herochu Manipulator, starting at $2,999, is the engineered solution to this fundamental constraint. It is not merely a loading machine; it is a productivity multiplier that transforms your laser cell from a manual operation into a seamless, automated workflow. By automating the most physically demanding and time-consuming part of the process, we free your human capital to do what it does best: add value.

The Anatomy of Efficiency: How the Herochu Manipulator Works

This system is a masterpiece of practical engineering, designed to perform a complex task with elegant simplicity. It functions as a tireless, precise, and powerful extension of your production line.

1. The “Grip”: Vacuum Adsorption Technology

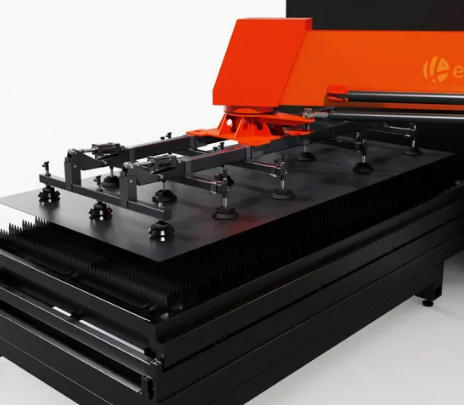

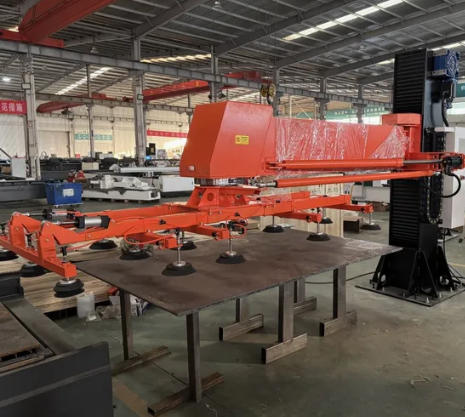

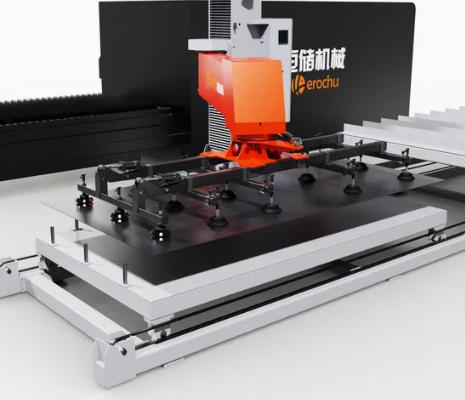

At the core of the manipulator is a robust array of eight vacuum suction cups. This system does not simply “lift” a sheet; it forms a secure, uniform seal across the material’s surface. Whether you’re handling a delicate 1mm aluminum sheet or a heavy 20mm steel plate weighing up to 1000KG, the pneumatic system ensures a flawless grip. The distributed pressure means no point-loading, eliminating the risk of bending or scratching the material—a common and costly issue with manual or clamp-based handling.

2. The “Reach”: Intelligent Cantilever Design

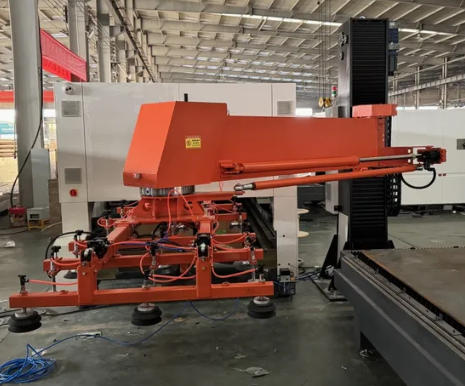

The manipulator features a sophisticated cantilever arm. This is not a fixed appendage; it’s a dynamically retractable limb that can be adjusted to accommodate different material lengths. This design is the key to high space utilization. It can retrieve sheets from standard racks positioned nearby, reaching over obstructions and precisely positioning the material without requiring the entire machine to shift. It makes full use of the available footprint, turning a compact area into a highly efficient loading zone.

3. The “Brain”: Programmable Precision
The true intelligence of the Herochu system lies in its programmable logic. Once configured, the manipulator can automatically identify and adapt to the material’s position, size, and shape. Through a combination of mechanical sensors and preset instructions, it calculates the optimal path for transport. It then carries the sheet to the laser cutting bed and performs a precise placement, aligning it to within millimeters of the required position. This eliminates the manual “jogging” and adjustment that can consume minutes of every load cycle.

The Tangible Return: Quantifying the Shift from Manual to Automated

Investing in automation is a strategic decision, and its returns must be measured in cold, hard facts. The Herochu Manipulator delivers a rapid ROI across multiple fronts.

1. The Elimination of Micro-Downtimes: Your Laser Cuts, Non-Stop
The most significant gain is in pure machine utilization. Consider the timeline of a manual load:

• Operator walks to storage, locates sheet: 2-3 minutes

• Positions crane/forklift, attaches to sheet: 2 minutes

• Transports sheet to laser bed: 1-2 minutes

• Manually aligns and positions sheet: 1-2 minutes

• Detaches equipment, clears area: 1 minute
  Total Non-Cutting Time: 7-10 minutes per load.

With the Herochu Manipulator, this entire process is condensed into a seamless, 60 to 90-second automated cycle. The laser cutter spends more time cutting and less time waiting. For a shop running two shifts, this can reclaim hours of productive machine time each day, dramatically increasing your throughput and capacity to take on more work without adding a single machine.

2. The Redefinition of Labor: From Material Mover to Value Adder
Manual sheet loading is heavy, repetitive, and non-value-added work. It fatigues your staff and occupies a skilled operator who could be performing more complex tasks. The manipulator is a force multiplier:

• Reduces Labor Costs: It allows one operator to manage multiple laser cutters or perform secondary operations like quality control and part sorting concurrently with the cutting process.

• Solves Labor Shortages: It mitigates your reliance on finding and retaining labor for physically demanding jobs, making your shop more resilient.

• Upskills Your Team: It frees your personnel to focus on programming, maintenance, and process improvement—tasks that genuinely grow your business.

3. The Silent Profit Protector: Eliminating Material and Quality Waste
Human error in loading is a direct source of scrap. A misaligned sheet can ruin an entire nest of parts, wasting both the raw material and all the energy and time already invested. The robotic repeatability of the Herochu Manipulator ensures that every sheet is placed perfectly, every time. This drastic reduction in misloads and associated material damage directly protects your profit margins.

4. The Duty of Care: Creating an Inherently Safer Workshop
The manual handling of large, sharp-edged sheets of metal is one of the highest-risk activities in a fab shop. The potential for crushed fingers, back injuries, and muscle strains is ever-present. By completely removing the operator from the point of load, the manipulator creates a safer working environment. This isn’t just about reducing insurance premiums (though it will); it’s about fulfilling the fundamental responsibility to send your team home safely every day.

Technical Specifications: Built for the Demands of Your Shop

The Herochu Manipulator is available in configurations to meet the specific needs of your operation, ensuring you never pay for capacity you don’t need.

All models are CE, UKCA, and ISO 9001 certified, guaranteeing they meet the highest international standards for safety, quality, and performance.

Is the Herochu Manipulator the Right Fit for You?

This system is the logical next step for any fabrication business feeling the constraints of manual loading. It is ideally suited for shops that:

• Experience frequent bottlenecks at their laser cutting stations.

• Run two or more shifts and need to maximize uptime.

• Struggle with repetitive strain injuries or safety concerns related to material handling.

• Work with a mix of materials (metal, plastics, composites) and sheet sizes.

• Aim to implement a “lights-out” or extended unmanned production shift.

Stop watching your most expensive assets—your machines and your people—wait on a manual process. The Herochu Sheet Metal Material Handling Manipulator is not just a piece of equipment; it is the key that unlocks the next level of your manufacturing capability.

Contact a Herochu automation specialist today for a consultation. We’ll analyze your current workflow and provide a clear picture of how our manipulator can streamline your operations, reduce your costs, and propel your productivity forward.
