Servo-Driven Swing Arm Sheet Metal Handling Manipulator

CE-Certified Servo Sheet Handling Manipulator

Pneumatic Sheet Metal Arm Manipulator System for Industrial Applications

Servo Sheet Handling Manipulator with CE Certification

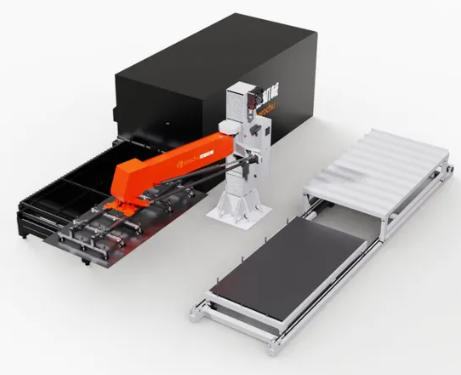

When accuracy, repeatability, and regulatory compliance matter, the Servo Sheet Handling Manipulator with CE Certification stands out as a premium solution for automated material handling in metalworking facilities. Unlike basic pneumatic arms, this advanced system leverages closed-loop servo motor technology to achieve millimeter-level positioning, smooth acceleration profiles, and real-time feedback—making it ideal for integration with high-end laser cutting and bending systems.

Servo Sheet Handling Manipulator with CE Certification

Certified to meet European safety and electromagnetic compatibility standards (CE marking), this manipulator is engineered for global deployment in regulated industries. Every component—from motors and drives to control cabinets and emergency circuits—is tested to ensure safe, reliable operation in 24/7 production environments. This certification isn’t just a label; it reflects a commitment to quality, traceability, and user protection.

The heart of the system lies in its servo-driven swing arm, which offers superior control over speed, torque, and position compared to traditional pneumatic alternatives. While pneumatics rely on air pressure and can suffer from inconsistent force or “bounce,” servo systems deliver consistent, programmable motion. This is especially critical when handling delicate or high-value materials like brushed stainless steel or pre-painted aluminum, where even minor impacts can cause costly damage.

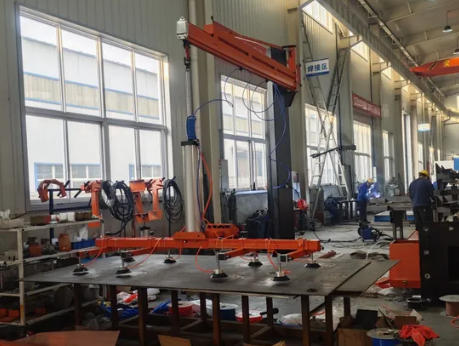

Capable of managing sheets from 1 mm to 20 mm thick, with formats up to 4000×1500 mm and weights reaching 1000 kg, the manipulator adapts to diverse production needs. Its eight vacuum suction cups are strategically spaced to distribute load evenly, and each cup can be monitored individually for vacuum integrity. If a leak is detected, the system halts operation instantly—preventing accidents and material loss.

Integration capabilities further enhance its value. The manipulator communicates directly with CNC controllers via digital interfaces, receiving job-specific instructions such as sheet size, thickness, and orientation. It then autonomously retrieves the correct plate from a stack, aligns it with the machine’s reference points, and places it gently on the worktable—all without human input. This seamless handoff reduces setup time by up to 70% and virtually eliminates human error.

From an operational standpoint, the servo manipulator supports predictive maintenance. Built-in diagnostics track motor performance, vacuum levels, and cycle counts, alerting maintenance teams before failures occur. Energy consumption is also optimized—servo motors draw power only when moving, unlike constantly running pneumatic compressors.

For manufacturers pursuing ISO certification or Industry 4.0 readiness, this CE-certified servo manipulator is more than equipment—it’s a cornerstone of a smart, connected, and compliant production ecosystem.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
