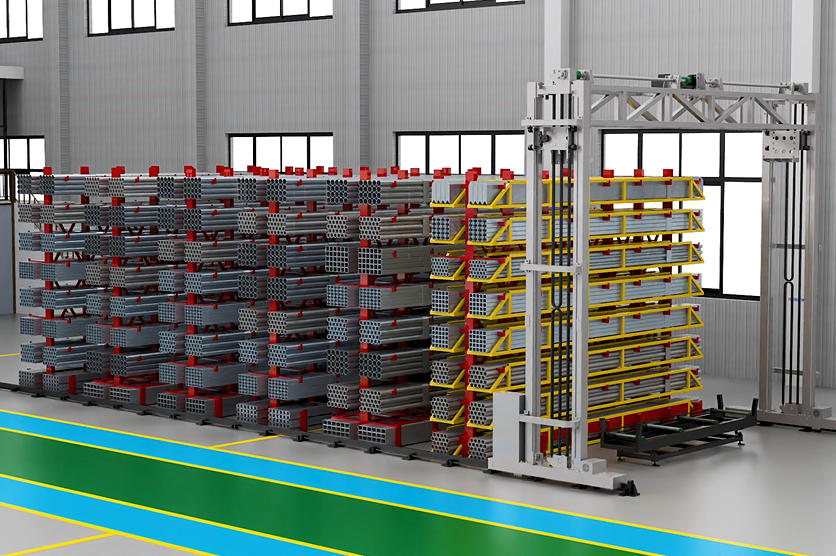

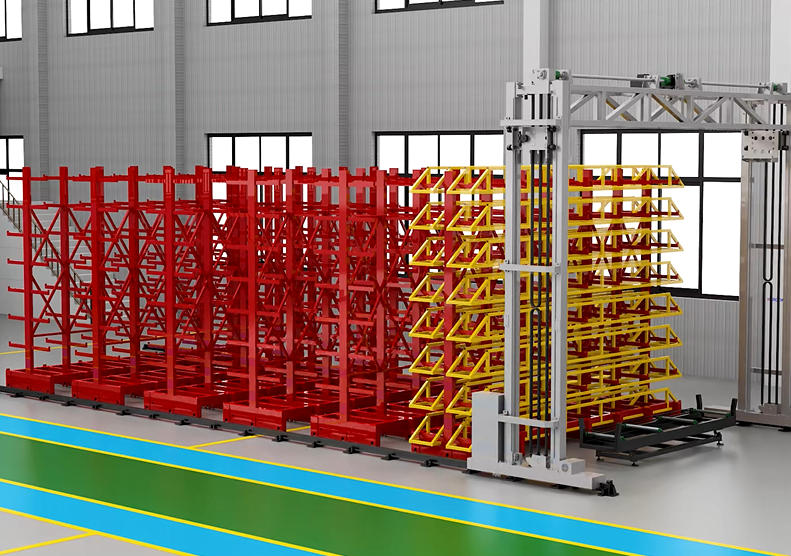

Roll Out Telescopic Cantilever Storage Racks

In today’s fast – paced industrial environment, efficient storage solutions that offer easy access to goods are essential. Roll Out Telescopic Cantilever Racks are designed to meet this demand, providing a unique combination of roll – out functionality and telescopic design that makes storing and retrieving goods a breeze. These racks are suitable for a wide range of applications, including storing long, irregular, and heavy items such as lumber, pipes, profiles, and more.

Roll Out Telescopic Cantilever Storage Racks

The roll – out feature of Roll Out Telescopic Cantilever Racks is what makes them stand out from other storage solutions. The cantilever arms are mounted on a roll – out mechanism, allowing them to be pulled out from the rack structure. This means that operators can easily access the goods stored on the cantilever arms without having to reach deep into the rack or move other items out of the way. Whether you are storing a single long item or multiple items on a single arm, the roll – out feature ensures that every item is within easy reach.

The telescopic design of these racks further enhances their functionality. The cantilever arms can be extended and retracted, allowing you to adjust the length of the arms to accommodate items of different lengths. This flexibility makes Roll Out Telescopic Cantilever Racks suitable for storing a wide variety of items, from short pieces of lumber to long pipes and profiles. You can easily extend the arms to store longer items and retract them to save space when storing shorter items or when the rack is not in full use.

When it comes to load – bearing capacity, Roll Out Telescopic Cantilever Racks are built to handle heavy loads. They are constructed from high – quality carbon steel, which is known for its strength and durability. The single – layer load – bearing capacity is designed to meet the needs of most industrial storage applications, ensuring that even heavy items can be stored safely. Whether you are storing heavy steel profiles or large diameter pipes, these racks can handle the weight with ease.

Safety is a top priority in the design of Roll Out Telescopic Cantilever Racks. The tilted cantilever design is incorporated to prevent goods from rolling off the rack. When items are placed on the cantilever arms, the weight can cause a downward angle shift. However, the upward angle of 2°~4° of the arms effectively keeps the items in place, reducing the risk of them sliding or falling. This is especially important for irregularly shaped items that are difficult to secure with traditional storage methods.

Cantilever arm ends and base retainers are also included to enhance safety. Retainers at the outer ends of the arms prevent items from rolling off the ends, while retainers on the base prevent items from rolling under the rack. These retainers act as a physical barrier, ensuring that the items remain securely stored at all times. This not only protects the items from damage but also keeps operators safe from potential accidents.

Specially designed cross braces are used to strengthen the torsional stability of the rack system. These cross braces connect the uprights horizontally and diagonally, creating a rigid structure that can withstand the forces exerted by the stored items. They help to distribute the weight evenly across the rack, reducing the stress on individual components and ensuring that the rack remains stable even when fully loaded.

The extended base of Roll Out Telescopic Cantilever Racks provides additional stability. By making the base longer than the cantilever arms, the rack is better able to resist the tilting forces that can be caused by the weight of the stored items. This ensures that the rack remains upright and stable, even in situations where the items are stored unevenly or in large quantities.

High – strength base bolts and premium – quality bolt fastening are used to secure the rack to the ground and reinforce the connection between the uprights and the base. Light – duty versions of the rack use nine M16120 bolts, while heavy – duty models use four M18290 bolts. These bolts are made of high – quality materials, ensuring that they can withstand the weight of the rack and the stored items. Grade 8.8 premium expansion bolts (M12*110) are also used to anchor the base to the ground, providing a strong and permanent connection that prevents the rack from moving or shifting.

Customization is another key feature of Roll Out Telescopic Cantilever Racks. The number of layers can be customized from 4 to 12 layers, allowing you to make the most of the vertical space in your warehouse. This is especially beneficial for warehouses with limited floor space, as it allows you to store more items without expanding the footprint of the storage area. The color of the rack can also be customized to match your warehouse’s aesthetic or branding, with options such as white and blue available, as well as custom color requests.

The mode of movement of Roll Out Telescopic Cantilever Racks is designed with convenience in mind. The roll – out mechanism is smooth and easy to operate, requiring minimal effort from operators. Whether you are using manual force or a small handle to pull out the cantilever arms, the process is quick and efficient. This makes it easy for operators to load and unload items, even when dealing with heavy or bulky goods.

In summary, Roll Out Telescopic Cantilever Racks are a versatile and efficient storage solution that offers easy access, flexibility, and safety. Their roll – out and telescopic features make them suitable for a wide range of storage applications, while their heavy – duty construction and comprehensive safety features ensure that they can handle the demands of industrial environments. Whether you are looking to improve the accessibility of your stored items, maximize the use of warehouse space, or enhance the safety of your operations, Roll Out Telescopic Cantilever Racks are the perfect choice.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
