Roll Out Telescopic Cantilever Racks with 6m 9m 12m Steel Pipe

End the Clutter, Master Your Long Materials: The Herochu Telescopic Cantilever Rack System

Walk into any fabricator, warehouse, or pipe supplier, and you’ll see it: the tangled graveyard of long, cumbersome materials. Bar stock leaning precariously against a wall, steel pipes scattered like pickup sticks, angle iron buried under other inventory. This chaos isn’t just an eyesore; it’s a massive, silent drain on your profitability. It consumes priceless floor space, turns material retrieval into a high-risk treasure hunt, and forces your skilled workers to waste hours on manual sorting and handling.

The era of struggling with long-load storage is over. The Herochu Roll Out Telescopic Cantilever Rack is not just another shelving unit; it is a dynamic, high-density storage solution engineered specifically for the unique challenges of storing lengthy, heavy items. This system transforms your most unmanageable inventory from a logistical nightmare into a seamlessly accessible, perfectly organized asset.

The Engineering Philosophy: Dynamic Access, Static Strength

Traditional pallet racking or static cantilever systems force a compromise: you can store long items, but accessing the one you need often means moving five others first. The Herochu system shatters this compromise with its core innovation: independently telescoping arms.

Imagine a rack where each storage level is a fully extendable tray, capable of sliding completely out into the aisle, bringing its entire load directly to the operator. This is the fundamental principle of our design. Constructed from high-tensile steel and built to withstand industrial demands, each arm is a feat of mechanical engineering. The telescopic mechanism, often utilizing precision linear bearings and heavy-duty roller systems, ensures a smooth, effortless extension and retraction, even under the system’s maximum load capacity of 5,000 kg (5.5 US tons) per layer.

This “roll-out” action is the key to unlocking unprecedented efficiency and safety in your material handling workflow.

A Deep Dive into the Components: Where Robustness Meets Refinement

1. The Cantilever Upright: The Unshakable Backbone
The upright frame is the anchor of the entire system. Herochu uprights are not merely folded steel; they are 100% MIG-welded structures, a process known for creating deep-penetration, incredibly strong welds that can withstand the constant stress of cantilevered loads. Reinforced with precision K-braces and heavy-duty cross-channel reinforcements, the design prioritizes rigidity and resistance to torsional forces. This means the rack won’t sway or deflect when fully loaded arms are extended, providing a critical safety margin.

The uprights feature a clean, obstruction-free profile with tapered keyhole slots on 2-inch centers. This meticulous design allows for micro-adjustments of the arm supports, enabling you to perfectly customize the vertical space between layers to match your inventory profile with zero wasted space.

2. The Telescoping Arms: The Heart of the Innovation
Each arm is a self-contained, heavy-duty drawer. The “telescopic” design often involves two or more stages that slide on industrial-grade rollers or linear guides, allowing the arm to extend a full 100% of its length. This means a 3-meter arm can extend 3 meters into the aisle, presenting its entire contents for direct access.

The arms are engineered with a specific load curve in mind, ensuring that the weight is properly distributed both when retracted and fully extended. The end of each arm is typically capped with a sturdy, angled stop or a removable pipe to prevent items from rolling off, a simple yet vital safety feature.

3. The Finish and Compatibility: Built for the Long Haul

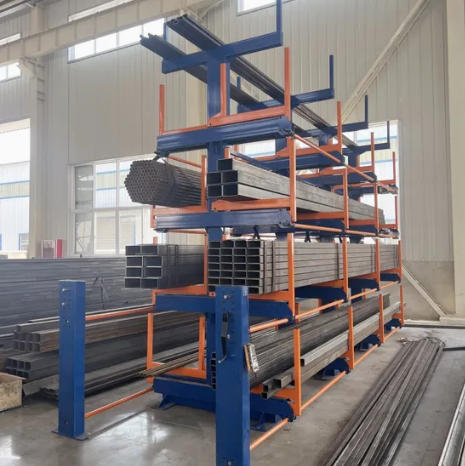

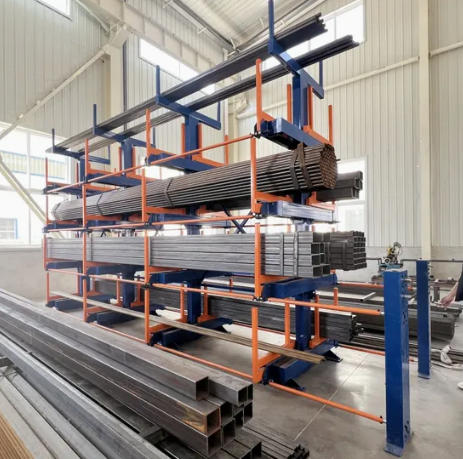

Durability isn’t just about steel thickness; it’s about corrosion and impact resistance. Herochu racks feature a baked-on powder epoxy finish that is far superior to standard paint. This creates an “appliance-like” surface that is tough, scratch-resistant, and able to withstand the humidity, temperature fluctuations, and occasional impacts of a warehouse environment. The distinctive Orange/Blue color scheme isn’t just for looks; it enhances visibility, contributing to a safer, more organized workspace.

Furthermore, our system is designed with teardrop-style connectors, making it largely interchangeable with other major teardrop racking systems on the market. This future-proof design means you can integrate Herochu racks into an existing layout or easily source replacement components, protecting your investment for years to come.

The Tangible Workflow Transformation: From Chaos to Control

Integrating the Herochu Telescopic Cantilever Rack doesn’t just change where you store things; it changes how your entire operation functions.

Scenario 1: The “Needle in a Haystack” Retrieval

• Before: An order comes in for a specific 8-meter aluminum pipe. A worker must carefully navigate a forklift into a narrow aisle, manually shift several other heavy pipes aside (risking damage and injury), and then attempt to secure the correct one with a crane, all while visibility is poor.

• After: The worker consults the rack’s organizational layout (e.g., by material type, diameter, or length). They walk to the designated rack, release the safety latch, and effortlessly roll out the entire arm for that layer. The 8-meter pipe is now fully exposed and isolated. A crane or overhead hoist can attach directly via a vacuum lifter or sling, lifting it cleanly from the rack and transporting it directly to its destination. The process is faster, safer, and eliminates product damage.

Scenario 2: Maximizing Your Real Estate

• Before: Long materials are stored flat, consuming hundreds of square feet of valuable floor space. Aisles must be wide enough for a forklift to maneuver and tilt loads, leading to massive inefficiencies in your warehouse footprint.

• After: The Herochu system stores materials vertically in a compact footprint. Because the arms telescope out, the aisles between racks can be significantly narrower. Material is handled by the crane from above, not by a forklift from the side. This high-density storage can increase your storage capacity by up to 60% within the same square footage, effectively giving you more warehouse without having to build one.

Specifications Tailored to Your Reality

Herochu understands that no two operations are identical. That’s why we offer a range of pre-designed solutions and full customizability.

What This Means For You:

• For the Metal Service Center: Store 6m, 9m, and 12m pipe and tubing in an organized, accessible manner, drastically reducing customer wait times for cutting orders.

• For the Architectural Fabricator: Safely store expensive, scratch-sensitive aluminum extrusions and stainless steel bar stock, completely eliminating surface damage from careless handling.

• For the Machinery Builder: Keep long shafts, rollers, and mandrels perfectly straight and protected, ready for immediate assembly.

The Compounding Return on Investment

The benefits of the Herochu system extend far beyond simple organization.

• Labor Efficiency: Tasks that required 2-3 people (a crane operator, spotter, and ground crew) can now be safely and efficiently handled by a single operator. This reallocates your most valuable asset—skilled labor—to revenue-generating tasks like fabrication and assembly.

• Zero Product Damage: When materials are individually accessible and never dragged across each other, the costs associated with scratched, dented, or bent materials vanish. This directly protects your profit margins.

• Enhanced Safety Culture: The system eliminates the primary hazards of long-load handling: tipping stacks, crushed limbs, and falling materials. This creates a safer work environment, reduces the risk of costly downtime from accidents, and can positively impact insurance premiums.

• Inventory Clarity: An organized rack is a manageable inventory. You can implement a clear visual system, making cycle counts accurate and instantaneous. You’ll know what you have, where it is, and how much is left at a single glance.

Certified Quality for Unshakable Confidence

Your peace of mind is paramount. Every Herochu Roll Out Telescopic Cantilever Rack is backed by CE, UE, and ISO 9001 certifications. This is your guarantee that the system has been designed, engineered, and manufactured under the most rigorous international standards for quality, safety, and performance.

Stop wrestling with your inventory and start commanding it. The initial investment, starting at $3,099, is not a cost but a strategic upgrade that pays for itself through reclaimed space, saved labor, eliminated damage, and a safer, more productive workflow.

Contact the Herochu team today for a free, no-obligation consultation. Let our experts help you configure a telescopic cantilever rack system that perfectly fits your space, your materials, and your ambition for a smarter, more efficient operation.
