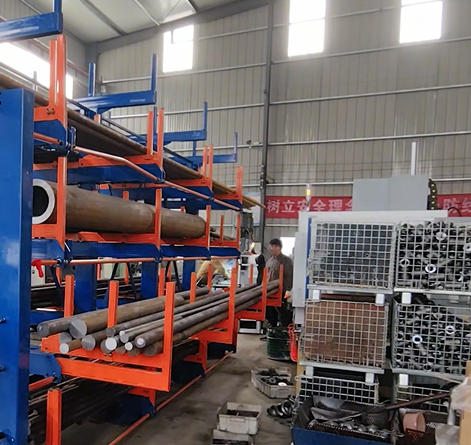

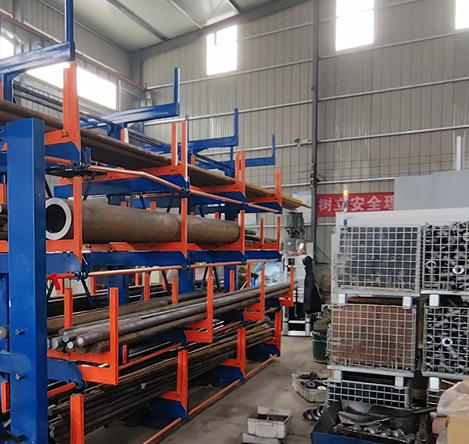

Roll-Out Storage Rack System for Lengthy Goods
Herochu’s Roll-Out Rack System redefines warehouse logistics with its patented cantilever arm design, specifically engineered for storing lengthy materials such as steel pipes, wooden boards, and plastic tubes. With customizable configurations starting at $2,998, this CE, EU, and ISO 9001-certified system adapts seamlessly to your workshop requirements, maximizing vertical space while minimizing operational bottlenecks.
Roll-Out Storage Rack System for Lengthy Goods
Herochu Roll-Out Storage Rack System for Lengthy Goods
Engineered for Heavy-Duty Industrial Storage Solutions
Unmatched Storage Efficiency for Lengthy Goods
Herochu’s Roll-Out Rack System redefines warehouse logistics with its patented cantilever arm design, specifically engineered for storing lengthy materials such as steel pipes, wooden boards, and plastic tubes. With customizable configurations starting at $2,998, this CE, EU, and ISO 9001-certified system adapts seamlessly to your workshop requirements, maximizing vertical space while minimizing operational bottlenecks.
Technical Specifications & Customization
Core Models:
| Model | Load Capacity | Length | Layers | Dimensions (mm) |
|---|---|---|---|---|
| HC-G6053D | 3t | 6m | 4+1 | 6435×3340×1750 |
| HC-G9055S | 5t | 9m | 4+1 | 9435×3340×1550 |
| HC-G12055D | 5t | 12m | 4+1 | 12435×3340×1750 |
Key Features:
- Manual/Electric Operation: Smooth spindle-driven rolling with a 2.36:1 crank rotation ratio. Initial force of 15kg reduces significantly under load.
- Modular Design: Welded base structures, longitudinal binders, and control masts ensure stability. Optional platform ladders enable high-shelf access.
- Color Customization: Standard blue (RAL 5012) and red (RAL 2002) arms; full RAL palette available.
Operational Advantages
-
Space Optimization
- Eliminates wide aisles for forklifts; goods are stored directly via overhead cranes.
- Supports materials up to 120m in length, reducing residual-waste storage needs.
-
Enhanced Safety & Efficiency
- No manual pushing/pulling required—arms roll out smoothly under controlled motion.
- Single-person operation with ergonomic crank handles.
-
Time-Saving Logistics
- Direct loading/unloading without restacking, ideal for just-in-time workflows.
- Quick access to any stored item, minimizing downtime.
Design Innovations
- Ball-Bearing Mechanism: Ensures frictionless movement even under 5t loads.
- Cross-Tooth Drive Shaft: Non-slip surface guarantees precise arm positioning.
- Plug-Compartment Dividers: Galvanized square tubes (30mm) or stakes (Ø16mm) for flexible material segregation.
Accessories & Extensions
- Electrically Powered Shelves: Automate roll-out for high-frequency operations.
- Support Pallets: Manage residual lengths efficiently.
- Custom Paint Coats: Brand-specific color matching available.
Why Choose Herochu?
Backed by international certifications, our system delivers:
- 30% More Storage Density vs. traditional racks.
- 5-Year Structural Warranty on welded components.
- 24/7 Technical Support for global installations.
Upgrade your warehouse today—contact us for a tailored quote.
FAQ
Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!
Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.
Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.
Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.
Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.
Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.
Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.
Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.
Q8: How do you ensure product quality?
Our quality assurance includes:
A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.
Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.
Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.
Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
