Roll-Out Rack with manual extraction

Herochu’s Roll-Out Rack with manual extraction revolutionizes the storage of lengthy goods such as steel pipes, wooden boards, and plastic profiles. Starting at $2,998, this CE, EU, and ISO 9001-certified system offers unmatched flexibility, adapting to your workshop’s unique dimensions while maximizing vertical space. Designed for raw material storage with a 1,000 kg per shelf capacity, it eliminates the need for forklift aisles, delivering 30% more storage density than conventional racks.

Category Roll Out Cantilever Racks Tag Roll-Out Rack with manual extraction

Roll-Out Rack with manual extraction

Herochu Manual Roll-Out Rack System for Long Material Storage‌
Engineered for Precision, Customized for Efficiency

‌Transform Your Warehouse with Manual Extraction Racks‌

‌Key Features & Technical Specifications‌

‌Core Models:‌

Model	Load Capacity	Length	Layers	Dimensions (mm)
HC-G6053D	3t	6m	4+1	6435×3340×1750
HC-G9055S	5t	9m	4+1	9435×3340×1550
HC-G12055D	5t	12m	4+1	12435×3340×1750

‌Operational Advantages:‌

‌Manual Extraction‌: Cross-toothed driveshaft ensures controlled movement with minimal effort (initial force: 15kg).
‌Single-Person Operation‌: Ergonomically designed crank handles for seamless retrieval.
‌100% Full Extraction‌: Arms roll out completely for direct access to stored materials.

‌Innovative Design & Customization‌

‌Sturdy Construction‌:
- Fully welded base structures with ball-bearing support for durability.

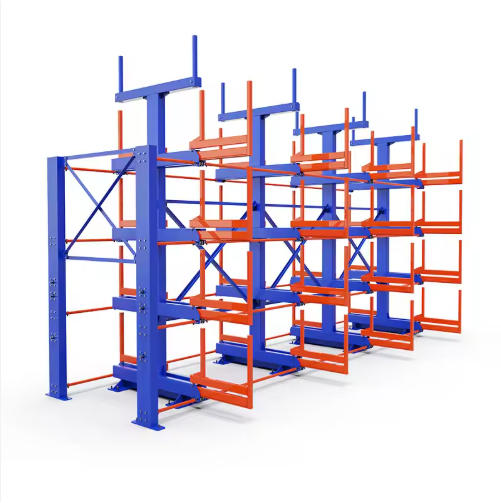

- Standard colors: Blue (RAL 5012) for frames, red (RAL 2002) for arms; custom RAL colors available.
‌Flexible Adaptability‌:
- Adjustable compartment dividers (40–120mm profile widths) for varied material sizes.
- Optional tray systems for residual lengths and electrically powered shelves.
‌Space-Saving Efficiency‌:
- Eliminates forklift aisles, enabling direct loading via overhead cranes.
- Supports materials up to 12m long without restacking.

‌Why Choose Herochu?‌

‌Certified Quality‌: Compliant with CE, EU, and ISO 9001 standards.
‌5-Year Warranty‌: Covers welded components for long-term reliability.
‌Global Support‌: 24/7 technical assistance for installations worldwide.

Upgrade your storage solution today—contact us for a tailored quote.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
