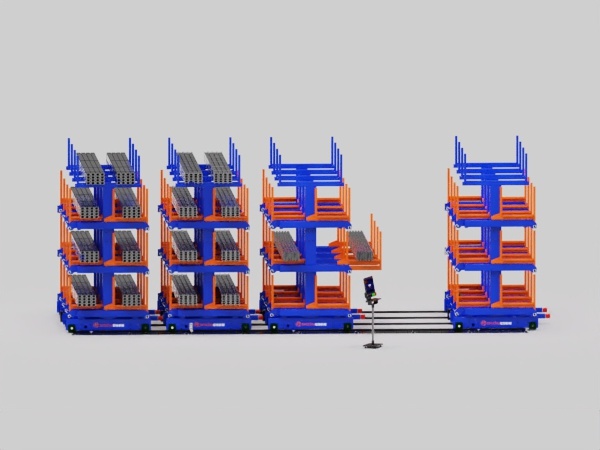

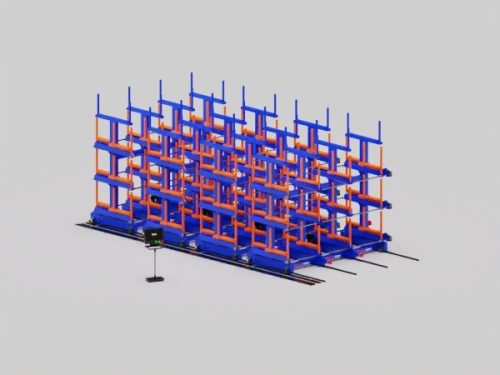

Roll Out Pipe Cantilever Racks

Roll out cantilever racking is ideal for storing and accessing bar stock, angle iron, tube,pipe, rollers, busbar, mandrels..etc long material and bulk goods, usually work will take a lot of time and find the right items they need if these items are stored on the ground.

Categories Pipe Storage Rack, Products, Roll Out Cantilever Racks Tags Cantilever Racking, Pipe Cantilever Racks, Pipe storage warehouse, Roll Out Pipe Cantilever Racks

Roll Out Pipe Cantilever Racks

Product introduction of Roll Out Pipe Cantilever Racks

Features of steel pipe storage racks

1.Material is handled by crane, no necessary with wider aisles so save space.

2.Sorting and storing any length of material.

3.Time-saving, material can be operated by crane from rack to terminal directly

4.Solid structure with heavy loading capacity loading Max 5000kgs per layer.

5.100% extended arms, each layers can be accessed easily.

6.Single people can be operated easily.

7.Materials can be stored by categories or size, and tray available for leftovers

8.Single or Double units available (Customized dimension)

9.Electrically Drive roll out racking available.

Roll Out Cantilever Rack Parameter
Item	Standard				Customized
Storage Sheet Size	6000mm	6000mm	9000mm	12000mm	Customized
Loading Per layer	2tons	3tons	3tons	3tons	Customized
Number of layers	3+1	4+1	3+1	3+1	Customized
Single /Double	Single	Double	Double	Double	Customized
Total Loading per rack	8tons	27tons	19tons	21tons	Customized
Length of Arm	550mm	600mm	800mm	800mm	Customized
Distance between two layers	600mm	600mm	800mm	800mm	Customized
Operation System	Mechanical	Mechanical	Mechanical	Mechanical	Customized
Color of Rack	Orange/Blue	Orange/Blue	Orange/Blue	Orange/Blue	Customized

Roll Out Cantilever Racking is an innovative storage solution designed to maximize space efficiency and accessibility in warehouses and industrial settings. This system features a unique roll-out mechanism that allows for easy retrieval of long, bulky, or irregularly shaped items such as pipes, lumber, and steel bars. The cantilever design eliminates the need for front columns, providing unobstructed access to stored materials. With its robust construction and adjustable arms, Roll Out Cantilever Racking offers exceptional durability and flexibility, making it ideal for heavy-duty applications. The roll-out functionality ensures that even the heaviest loads can be smoothly and safely maneuvered, enhancing operational efficiency. Whether you’re managing a construction site, manufacturing facility, or retail warehouse, Roll Out Cantilever Racking is the ultimate solution for optimizing storage space and improving workflow. Its user-friendly design and superior load-bearing capacity make it a must-have for any business looking to streamline its storage processes.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.

Customer visit

Herochu has always been adhering to the market-centric approach to meet customer requirements to the maximum extent, and the business philosophy of “creating brands with heart and gaining reputation with sincerity”. It provides customers with high-quality products and services with rigorous military quality, professionalism, and excellence, and has won unanimous praise in the Chinese aerospace, Chinese weapons, Chinese railways, automobile manufacturing, engineering machinery, non-ferrous metal titanium alloy and other industries.
