Robust Industrial Pipe Storage Cantilever System for Steel and Manufacturing

The storage of raw materials in heavy industry—specifically within the steel, construction, and manufacturing sectors—requires infrastructure that is as tough as the products it holds. The Industrial Pipe Storage Cantilever System is designed to meet these rigorous demands. Herochu delivers a specialized iteration of this equipment, known as the Heavy Duty Cantilever Pipe Rack, which serves as the backbone for efficient material management in facilities handling profiles, pipes, and bars.

Category Heavy Duty Cantilever Racking Systems Tag Robust Industrial Pipe Storage Cantilever System for Steel and Manufacturing

Robust Industrial Pipe Storage Cantilever System for Steel and Manufacturing

Built for the Heavy Duty Cycle

In a steel manufacturing plant or a large-scale distribution center, racking systems are subject to constant stress. The impact of loading heavy steel beams or the abrasion of sliding pipes can quickly degrade inferior storage solutions. The Herochu Heavy Duty Cantilever Rack for Tubing is fabricated from premium structural steel, treated with a durable powder coating. This coating is not merely aesthetic; it provides a critical layer of protection against rust and corrosion, which is essential in environments where raw steel is stored.

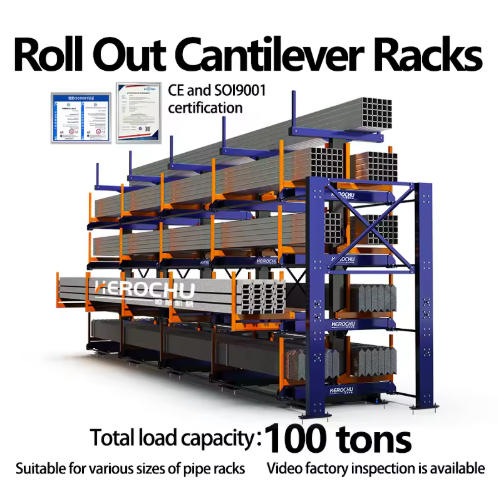

The system’s capacity is a testament to its heavy-duty classification. With the ability to support 5 tons per layer, the High Capacity Cantilever Rack for Bar Stock ensures that massive quantities of inventory can be stacked vertically. This vertical stacking, or three-dimensional storage, is a game-changer for facilities with limited footprints. By utilizing the height of the building—often an underutilized asset—companies can drastically reduce their storage costs per square foot.

The Telescopic Mechanism: A Deep Dive

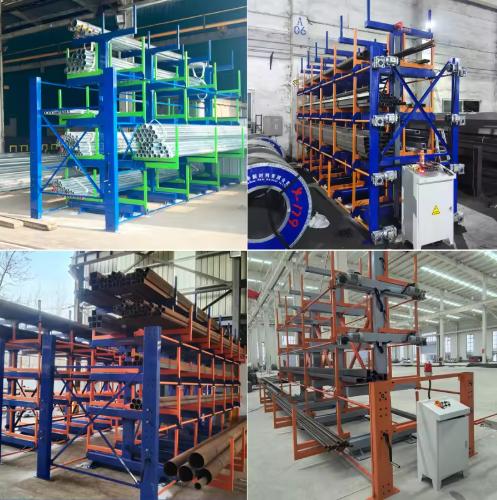

The Herochu system distinguishes itself through its Adjustable Telescopic Cantilever Rack design. The classification of these racks can be divided into manual and electric telescopic frames, allowing users to choose the level of automation that fits their budget and workflow.

The structural composition involves a series of column pieces connected by stabilizing rods. The “telescopic” action is achieved through a set of fixed arms and movable arms. The movable arms are the active component, driven by a transmission rod and gear rack system. When activated, these arms extend outward, transforming the rack from a compact storage unit into an accessible loading dock. This is particularly useful for the Long Span Cantilever Storage Rack applications where materials are exceptionally long and difficult to maneuver. The extension allows the crane operator to place the load gently and precisely, without the fear of the load snagging on the column.

Customized Solutions for Complex Inventories

No two warehouses are identical, and Herochu’s approach reflects this reality. They provide customized solutions based on actual user needs. This customization extends to the dimensions of the rack. With layer lengths available in 6m, 9m, and 12m options, the Steel Pipe Cantilever Rack with Adjustable Arms can be configured to support materials of varying standard lengths without overhang or wasted space.

Additionally, the number of layers—ranging from 3 to 5—allows for fine-tuning the storage density. A facility storing primarily small-diameter copper tubing might opt for a 5-layer configuration to maximize volume, while a yard storing massive concrete pipes might choose a 3-layer setup to accommodate the height of the items. The color of the powder coating can also be customized, serving as a visual management tool to designate different storage zones for different material grades.

Complementary Equipment: The Profile Transfer Vehicle

A standout feature of the Herochu ecosystem is the inclusion of the profile transfer vehicle. In many storage areas, especially those without overhead crane coverage, moving long materials is a logistical headache. The profile transfer vehicle solves this by acting as a mobile storage rack. It allows for the long-distance transfer of profiles safely, eliminating the need for forklifts to carry unstable loads over long distances.

When used in conjunction with the Telescopic Boom Pipe Storage Rack, the transfer vehicle creates a seamless loop. Materials are unloaded from trucks onto the vehicle, transported to the rack, and then slid onto the extended arms. This process not only speeds up operations but also significantly enhances safety by keeping heavy materials elevated and stable throughout the transfer process.

Conclusion

For heavy industry, the Industrial Pipe Storage Cantilever System is not an optional luxury but a operational necessity. Herochu’s commitment to heavy-duty engineering, combined with the flexibility of telescopic technology and customized manufacturing, provides a storage solution that is robust, efficient, and tailored to the specific challenges of long material handling.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
