Revolutionize Your Warehouse with Rail-Type Telescopic Multi-Level Pipe Racking

Storing long, heavy materials like steel pipes, aluminum profiles, or conduit has always posed logistical challenges. Traditional pallet racking falls short, while open-floor stacking creates safety hazards and inefficiencies. Enter Rail-type telescopic multi-level pipe racking—a game-changing solution from Herochu that merges engineering precision with smart spatial design.

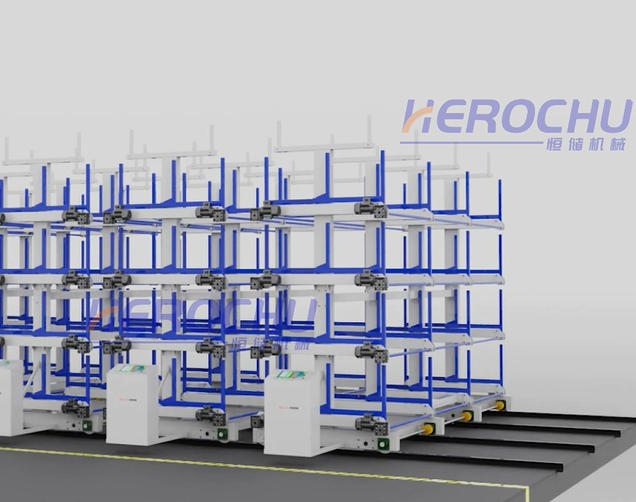

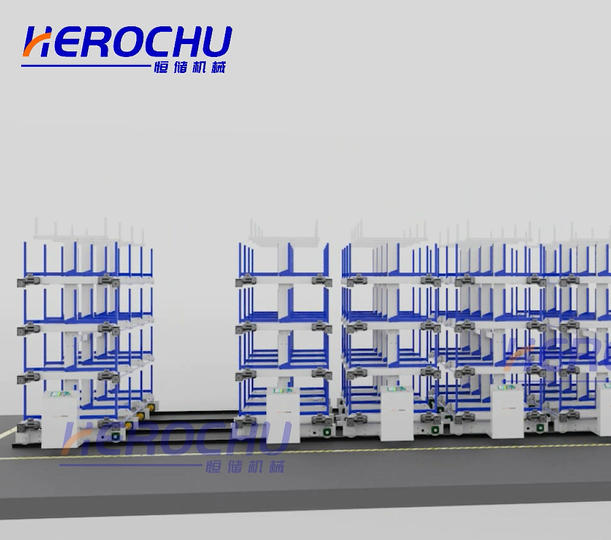

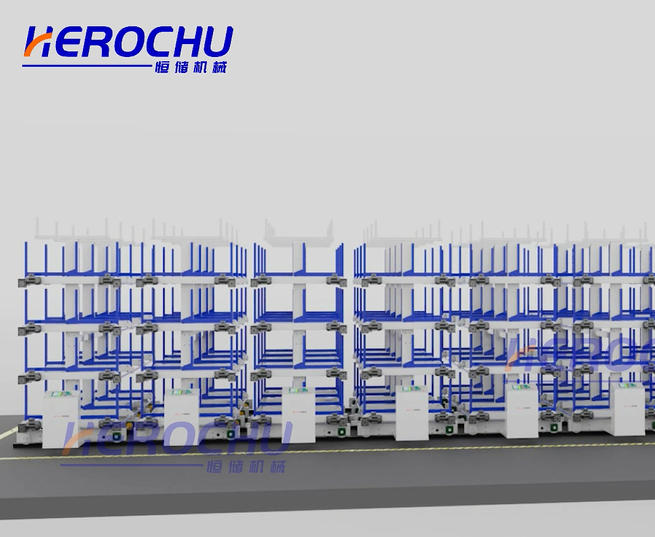

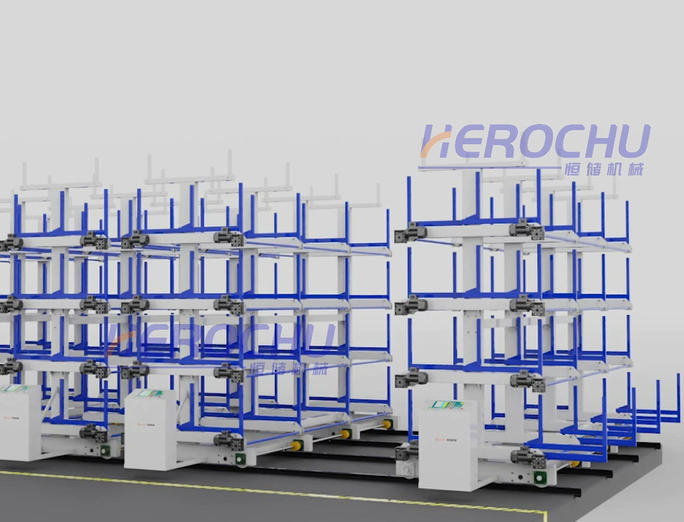

This advanced system is built for industries where raw material volume is high but floor space is limited. By installing tracks directly onto the warehouse floor, Herochu enables multiple cantilever racks to move horizontally along a shared rail path. The result? Only one access aisle is needed for an entire row of racks, freeing up to 70% more usable floor space compared to conventional setups.

Each rack in the Rail-type telescopic multi-level pipe racking series features multiple cantilever arms arranged in vertically stacked layers. Depending on the model—such as the HC-G9055D with 9-meter storage sheets or the custom HC-B4020-65 with 4-meter arms—users can configure layer count (typically 3+1 to 5+1), arm length, and load capacity. Every layer supports 2–6 tons, and full rack assemblies handle up to 42 tons, ensuring robust performance even under continuous industrial use.

What sets this system apart is its pull-out operation mechanism. Workers can extend an entire rack unit outward like a drawer, gaining full access to stored pipes without disturbing adjacent units. This eliminates the need for forklifts to navigate tight spaces or risk damaging materials during retrieval. Coupled with PLC frequency conversion control, the movement is smooth, controlled, and safe—ideal for high-throughput environments.

Moreover, the modular nature of Herochu’s design allows seamless scalability. Start with a few units and expand as your inventory grows. Customization options include arm lengths from 3000mm to 6000mm, rack heights up to 2500mm, and widths tailored to your facility’s column spacing. Whether you’re managing seamless tubes, threaded pipes, or structural beams, this racking system adapts to your needs—not the other way around.

For warehouses aiming to reduce clutter, improve inventory visibility, and enhance operational flow, Rail-type telescopic multi-level pipe racking isn’t just storage—it’s strategic infrastructure.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
