Rail-Type Pipe Cantilever Rack Systems & Mobile Pipe Rack Solutions

For businesses that specialize in pipe storage—including steel pipes, stainless tubes, copper pipes, galvanized tubes, and plastic pipes—standard storage equipment rarely meets operational needs. Pipes are long, heavy, round, and prone to rolling or damage if stored incorrectly. Herochu Rail-Type Pipe Cantilever Rack Systems and Mobile Pipe Rack solutions are purpose‑built to solve these exact challenges, providing safe, organized, space‑efficient storage for all types of pipes and tubular products.

Category Rail Type Cantilever Racking Systems Tag Rail-Type Pipe Cantilever Rack Systems & Mobile Pipe Rack Solutions

Rail-Type Pipe Cantilever Rack Systems & Mobile Pipe Rack Solutions

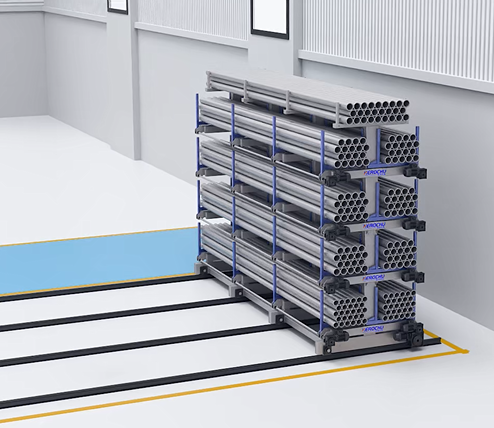

A mobile pipe rack solves the biggest problem in pipe storage: wasted aisle space. Conventional fixed pipe racks require wide, permanent aisles for forklift access, leaving as much as 40%–50% of floor area unused. Herochu’s rail‑type design eliminates this waste by mounting entire rack sections on linear guide rails. Only one aisle is needed, and racks move manually or automatically to open access exactly where needed. This drastically increases storage density and allows more pipe inventory to be stored in less space.

Rail‑type pipe cantilever rack systems are designed specifically for pipe geometry. The inclined, rounded, or padded cantilever arms securely hold cylindrical materials without scratching, bending, or rolling. Arms can be adjusted in height and spacing to accommodate different pipe diameters, lengths, and weights. Whether you store small diameter copper tubes or large diameter industrial steel pipes, the system adapts to your inventory.

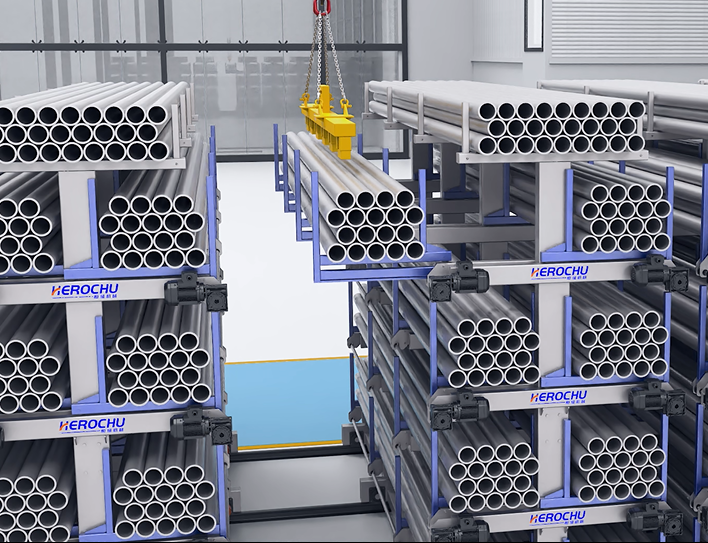

These systems are widely used in pipe distribution centers, steel warehouses, plumbing supply companies, oil and gas component storage, construction material yards, and manufacturing facilities. In addition to pipes, they safely store profiles, bars, wires, hoses, and other long items. The open‑front design provides full access for forklifts, cranes, or manual handling, making loading and unloading fast and efficient.

Structural strength is non‑negotiable for pipe storage. Herochu’s ground rail system provides exceptional stability and load distribution. Heavy‑gauge steel uprights, reinforced arms, and solid cross bracing ensure the rack withstands heavy, repeated loads. Each single side per layer supports 3T or 5T, with total system capacities from 50,000KG to 250,000KG. Even under full load, the rack moves smoothly and safely along its rails.

Space efficiency is further enhanced in low‑height or compact warehouses. Many pipe storage facilities operate in older buildings with limited vertical clearance. Herochu’s mobile pipe rack maximizes horizontal density without requiring high ceilings. The wide, open layout improves visibility, simplifies inventory management, and speeds up loading, unloading, and order fulfillment.

Performance specifications ensure reliable daily operation. Standard lengths: 6m, 9m, 12m. Movement: linear guide rails + chain drive. Transmission: chain drive. Vertical lifting speed: 9m/min. Inlet/outlet speed: 12m/min. Optional plate support allows mixed storage of pipes and boxed components.

Surface protection includes corrosion resistance, anti‑rust coating, ESD protection, and foldable arms. Custom colors are available. The CE & ISO certified model HC‑G6053 ensures safety and quality. MOQ is 1 set, with 30‑day delivery.

Switching from floor stacking or outdated racks to a dedicated rail‑type pipe cantilever system reduces damage, improves safety, speeds up logistics, and increases storage capacity. For any business that stores pipes, this system delivers immediate, measurable benefits.

In conclusion, Herochu Rail‑Type Pipe Cantilever Rack Systems and Mobile Pipe Rack solutions are the ultimate choice for efficient, safe, and cost‑effective pipe storage. With intelligent design, heavy‑duty construction, and industry‑specific features, they set the standard for modern pipe warehousing.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
