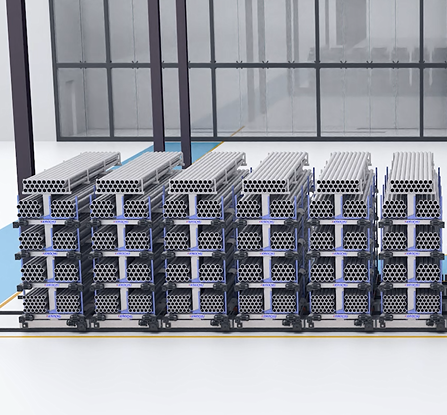

Rail-type Movable Pipe Fitting Storage Racks for Metal Pipe Storage

The decision to invest in a high-density storage system is only the beginning. The true test of value lies in the installation process, the day-to-day robustness of the equipment, and how seamlessly it integrates into the material flow. Rail-type movable pipe fitting storage racks, classified under the installation types of Cantilever Racks, Mobile Shelving, and Industrial Shelving, represent a convergence of these categories . They offer the cantilever’s ability to handle long goods, the mobile shelving’s space efficiency, and the industrial shelving’s structural integrity. Understanding the lifecycle from foundation to full operation reveals why these systems are the choice for demanding Metal Pipes Storage applications.

Installation: The Critical Foundation

The installation of a rail-type system is more involved than bolting down static racks. It begins with a detailed survey of the warehouse floor. The concrete must be assessed for thickness, flatness, and reinforcement to ensure it can accept the anchoring loads of the ground rail .

The process typically follows these steps:

1. Layout and Marking: Engineers mark the precise path of the ground rail, ensuring it is perfectly straight and level. Any deviation here will be magnified in the movement of the racks.

2. Floor Preparation: In some cases, the concrete may need to be cut and re-poured in the rail path to create a perfectly level foundation. For most installations, chemical anchors are drilled deep into the existing slab.

3. Rail Installation: The heavy-duty steel rails are laid into position, aligned with laser precision, and anchored to the floor. The joints between rail sections are welded or mechanically spliced to create a continuous, smooth path.

4. Rack Assembly: The cantilever frames are assembled on the shop floor or on-site. The carriages, equipped with the linear guide bearings, are fitted to the base of the frames.

5. Placement: A crane or heavy forklift places the assembled racks onto the rails. The carriages engage the rail, and the racks are moved to their initial positions.

6. Drive System Installation: If the system is powered, the chain drive motors, sprockets, and control panels are installed and connected.

7. Testing: Every movement is tested under no load and then under full load to verify smooth operation and safety system functionality .

Proper installation by factory-trained technicians, such as those offered by manufacturers with global service reach, ensures that the system’s 15+ year lifespan is realized .

Structural Robustness in Daily Use

Once installed, a Mobile Pipe Rack system faces the brutal reality of industrial daily use: impacts from forklifts, dust and debris, and the relentless stress of moving hundreds of tons of steel day after day.

The robustness is engineered at multiple levels. The anti-rust protection from the powder coating ensures that even if the surface is scratched, the underlying metal is protected. The foldable or retractable nature of some arm designs allows for compact storage when bays are empty, reducing the risk of arms being struck by passing traffic .

The linear guide bearings are typically sealed or have wipers that clean the rail as the rack moves, pushing aside metal shavings or dust that could cause wear. The chain drive is enclosed or guarded to prevent debris from jamming the sprockets.

Optimizing Metal Pipes Storage Workflow

In a dedicated Metal Pipes Storage facility, workflow is king. Pipes arrive from the mill, are inventoried, and then must be retrieved for order fulfillment. The rail-type system slots into this workflow with precision.

Upon arrival, pipes are unloaded and staged. The warehouse management system directs the operator to the correct storage location. The operator moves the appropriate rack into the aisle (either by pressing a button or cranking a handle). They then extend the specific level where the pipes of that size and grade belong. The pipes are loaded onto the arms, the level is retracted, and the rack is moved back into the bank.

During order picking, the process reverses. The system ensures that the “first in, first out” or specific lot tracking requirements are met because every pipe is visible and accessible. There is no digging through a pile to find the oldest stock.

The “Industrial Shelving” Standard Applied to Heavy Loads

Classifying these systems as Industrial Shelving might seem understated given their capacity, but it is accurate in the sense that they bring the organizational principles of shelving—discrete locations, visible labeling, easy access—to the world of heavy steel . Each bay, each level, and often each arm position can be treated as a distinct bin location. This granularity is essential for modern inventory systems that track stock down to the individual piece or bundle.

Customization for Specific Applications

The final aspect of robustness is the ability to customize the system to the specific application. As noted in the specifications, options like Plate Support can be selected . For facilities storing both round pipes and flat plates, the same rail-type system can be configured with different arms on different levels—some with flat plate supports, some with pipe saddles.

The dimensions, from the 6000mm to 12000mm lengths, are customizable to match the incoming material lengths, reducing waste and maximizing storage efficiency . This level of tailoring ensures that the system is not a compromise but a perfect fit.

In conclusion, the Rail-type movable pipe fitting storage rack is more than a product; it is a comprehensive storage strategy. From the precision of its rail installation to the ruggedness of its daily operation in Metal Pipes Storage environments, it embodies the principles of industrial engineering. It stands as a testament to how moving beyond static thinking can solve the most persistent challenges in material handling.
