PVC Pipe Storage Cantilever Rack – Electric & Manual Foldable Heavy-Duty Steel Rack for Industrial Warehouses

Managing PVC pipes, electrical conduits, or plastic tubing in bulk presents unique challenges: they’re long, prone to bending, and difficult to stack without damage. Traditional racks often lead to tangled inventory, inefficient access, and wasted vertical space. Enter the PVC Pipe Storage Cantilever Rack—a purpose-built, foldable, heavy-duty steel solution engineered specifically for linear materials in industrial and wholesale environments.

PVC Pipe Storage Cantilever Rack – Electric & Manual Foldable Heavy-Duty Steel Rack for Industrial Warehouses

Managing PVC pipes, electrical conduits, or plastic tubing in bulk presents unique challenges: they’re long, prone to bending, and difficult to stack without damage. Traditional racks often lead to tangled inventory, inefficient access, and wasted vertical space. Enter the PVC Pipe Storage Cantilever Rack—a purpose-built, foldable, heavy-duty steel solution engineered specifically for linear materials in industrial and wholesale environments.

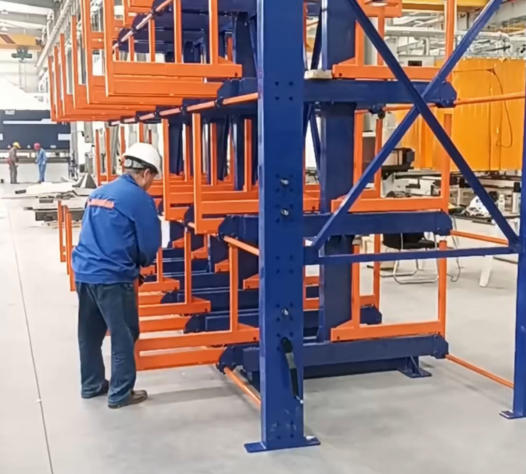

This rack system leverages a telescopic cantilever mechanism that allows each storage arm to slide out horizontally when needed and retract flush against the upright column when not in use. The result? No more blocked aisles, no more “digging” through stacks to find a specific pipe diameter. Operators simply extend the relevant layer—manually via ergonomic hand crank or electrically with a remote—and retrieve or store materials in seconds. This feature alone reduces handling time by over half compared to fixed-arm racks.
Built from Q235 carbon steel and finished with anti-rust powder coating, the rack withstands harsh warehouse conditions while protecting delicate PVC surfaces from scratches or dents. Load capacities range from 3 to 5 tons per layer, accommodating everything from lightweight irrigation tubes to heavy-duty Schedule 80 pressure pipes. Arm lengths are customizable from 6 to 12 meters, ensuring full support along the entire pipe length—preventing sagging and deformation.
One standout model, the HC-G9055D, offers bilateral assistance arms on a 9-meter frame, supporting up to five layers (4 main + 1 auxiliary). Its overall dimensions (9435×3340×1750mm) fit standard warehouse bays while delivering exceptional density. For narrower spaces, the HC-G9055S provides unilateral extension, ideal for wall-adjacent installations.
But what truly sets this system apart is its dual-operation flexibility. Smaller distributors may opt for the manual version to keep costs low and maintenance simple. Larger logistics centers often choose the electric remote control variant, enabling one worker to manage multiple racks from a central station—perfect for cold storage or high-bay warehouses where climbing ladders is unsafe.
Beyond PVC, this rack excels with aluminum extrusions, wooden moldings, fiberglass rods, and sheet metal rolls. Its modular design supports integration with barcode scanners or RFID tags for digital inventory management. Some clients even retrofit LED lighting on arms for night-shift visibility.
Safety and compliance are guaranteed through CE and ISO9001 certification. Each unit undergoes rigorous load testing at 1.5x rated capacity before shipment. Installation is tool-efficient, with pre-drilled holes and boltless joint options minimizing on-site assembly time.
Real-world impact? A U.S.-based plumbing wholesaler reduced their pipe damage claims by 72% within six months of deployment. Another client in Southeast Asia doubled their SKU count in the same warehouse area by switching from static racks to this foldable cantilever system.
In conclusion, the PVC Pipe Storage Cantilever Rack solves the core pain points of linear material storage: disorganization, inefficiency, and product damage. With options for electric or manual controlcustom sizing, and industrial-grade certification, it’s not just a rack—it’s a productivity multiplier for any business dealing in pipes, tubes, or profiles.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

  • A team of over 40 technical engineers for professional debugging and support.

  • A dedicated quality control department compliant with ISO9001 standards.

  • CE certification for all exports.

  • Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
