Pneumatic Vacuum Lifter for Steel Plate

Meta Description: Looking for a Pneumatic Vacuum Lifter for Steel Plate? Learn how these heavy-duty lifters provide damage-free handling, reduce workplace injuries, and streamline the feeding of CNC and laser cutting machines.

Handling steel plate is one of the most fundamental yet physically demanding tasks in metal fabrication. Whether it’s 3mm thick sheet for enclosures or 20mm plate for structural components, moving these materials safely and efficiently is a constant challenge. The Pneumatic Vacuum Lifter for Steel Plate has emerged as the definitive solution to this challenge, offering a combination of secure gripping, effortless maneuverability, and absolute safety that traditional methods cannot match.

The Technology of Vacuum Lifting

A Pneumatic Vacuum Lifter operates on a simple principle: creating a negative pressure between the suction cup and the load to generate a lifting force. However, the engineering behind industrial-grade lifters is highly sophisticated.

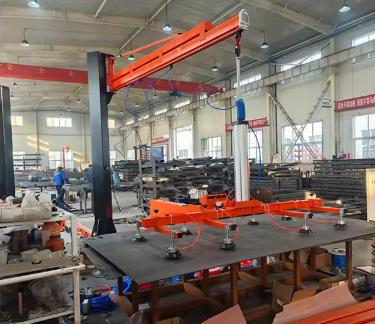

Modern lifters, like those in the Herochu BLA series, utilize a multi-stage system. The vacuum is generated by a pump or Venturi system powered by compressed air. This vacuum is then distributed across multiple suction cups. The advantage of using multiple cups (typically 8 to 10) is redundancy. If one cup fails to seal on a slightly warped or dirty plate, the remaining cups maintain sufficient holding force to secure the load .

For steel plates, which can weigh hundreds of kilograms, the suction cup material and design are critical. Heavy-duty reinforced cups with cleats or deep ribs are used to create a robust seal against the metal surface, even if it has a light coating of oil or mill scale.

Why Steel Plate Requires Dedicated Equipment

Steel plate is unforgiving. A dropped plate can cause catastrophic injury or destroy expensive tooling. This is why a standard shop hoist is inadequate for precise plate handling. A dedicated Pneumatic Vacuum Lifter for Steel Plate incorporates several layers of safety:

1. The Safety Tank

CE-certified models are required to have a safety tank or reservoir integrated into the vacuum system . This tank stores a reserve of vacuum. In the event of a power failure or a break in the air supply line, the tank maintains suction on the load, giving the operator time to safely lower the plate or for the safety valves to engage.

2. Low-Pressure Warning Systems

Operators need real-time feedback on the integrity of the lift. Advanced systems include visual or audible alarms that trigger if the vacuum pressure drops below the safe operating threshold. This allows the operator to set the plate down immediately and investigate the cause—be it a porous weld seam or a damaged cup seal.

3. Mechanical Locks

In addition to pneumatic safety, many heavy-duty lifters feature mechanical fail-safes. One-way valves in the vacuum lines ensure that air cannot rush back into the cups, while mechanical latches on the arm prevent uncontrolled descent.

Enhancing Production Flow

Integrating a Pneumatic Vacuum Lifter into a steel processing line does more than just protect workers; it actively speeds up production.

CNC and Laser Cutting Integration

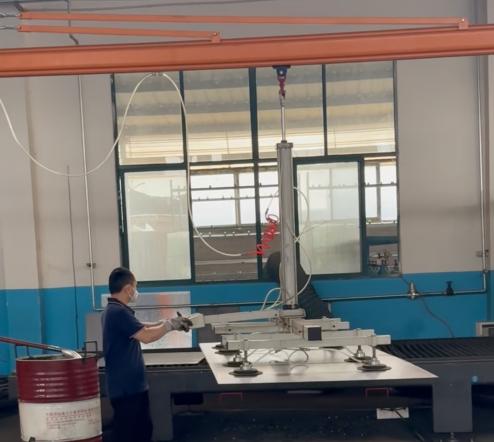

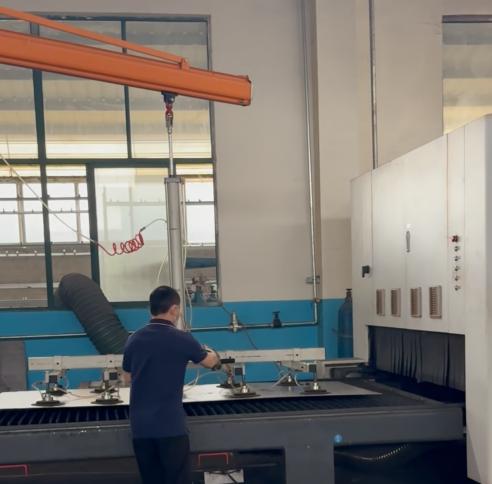

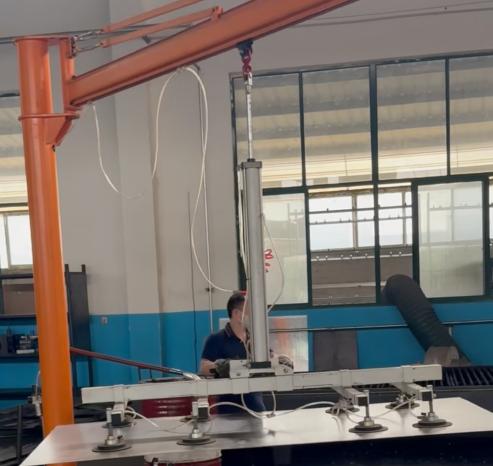

The bottleneck in many laser cutting operations is not the cut speed, but the load/unload time. A Pneumatic Vacuum Lifter for Steel Plate allows an operator to quickly pick a raw plate from the stack, move it to the cutting table, and place it with precision. With horizontal load movement controls, the operator can position the plate exactly against the stops or pins on the machine bed, ensuring the first cut is accurate .

For punching machines, the ability to “float” the plate allows for quick adjustments, reducing the time between parts. This efficiency turns the material handling process from a disruption into a continuous, seamless part of the workflow.

Handling Finished Parts

While raw plate handling is the primary use, these vacuum lifters are also excellent for removing finished, nested parts from a laser table. Because the suction cups provide gentle, uniform pressure, they will not scratch the cut surfaces or delicate micro-tabs holding the parts in place. This protects the value added by the cutting process.

Choosing the Right Model for Steel

When selecting a Pneumatic Vacuum Lifter, consider the specific types of steel you handle:

• Thin Sheets (up to 8mm): A model like the HC-PR3015-300 with multiple smaller cups is ideal. It provides enough grip without exerting excessive point pressure that could warp thin material.

• Heavy Plate (up to 20mm): For thicker, heavier steel, a Heavy-Duty Pneumatic Cantilever Loading Manipulator with a 500kg or 1000kg capacity is required. Look for models with larger diameter cups (250mm) and reinforced arm structures to handle the torque of a long, heavy plate .

Maintenance for Longevity

One of the advantages of pneumatic equipment is its ease of maintenance. Keeping a Pneumatic Vacuum Lifter in top condition involves routine checks:

• Inspect Suction Cups: Check for wear, cracks, or embedded debris. Worn cups are the number one cause of grip failure.

• Check Filters: Ensure the air filtration system is clean. Contaminants in the air supply can clog the Venturi valves and reduce vacuum efficiency.

• Test Safety Systems: Regularly test the one-way valves and the pressure holding mechanism to ensure they engage instantly in a simulated power-loss scenario.

By investing in a quality Pneumatic Vacuum Lifter for Steel Plate, manufacturers take a definitive step toward a Leaner, safer, and more productive operation. It is an investment in your workforce’s well-being and your facility’s throughput, ensuring that heavy steel is moved with the precision and care it demands.
