Pneumatic Sheet Metal Arm Manipulator System for Industrial Applications

In the quest for automation that is both powerful and adaptable, the Advanced Pneumatic Arm Manipulator System holds a vital position. This system represents a sophisticated evolution of pneumatic automation, engineered for a broad spectrum of industrial applications beyond just metal fabrication, including packaging, injection molding, part transfer, and assembly lines. Its defining feature is the use of compressed air as the primary motive force, driving cylinders and actuators that control the manipulator’s arm movements and gripping functions.

The term “Versatile Pneumatic Loading Manipulator” perfectly captures its core advantage: flexibility. Pneumatic systems are inherently modular and easily reconfigurable. The travel distances, lifting heights, and rotation angles of the arm can often be adjusted through simple mechanical stops or valve settings. The end-effector—typically a vacuum gripper frame with multiple suction cups—can be quickly swapped or reconfigured to handle different product shapes and sizes. This makes it an ideal solution for production environments with frequent changeovers or mixed-product runs. For example, a single system could be tasked with handling the mentioned range of sheet formats from 1250x1250mm to 4000x1500mm by simply adjusting program settings and possibly the suction cup layout.

Despite being pneumatically driven for actuation, the most advanced systems integrate electronic programmable logic controller (PLC) guidance. This creates a hybrid “Automated Sheet Handling Servo Sheet Handling Manipulator” paradigm in a more cost-effective package. While the arm’s extension, retraction, and lifting might be controlled by pneumatic valves, its sequencing, logic, and integration with other machines (like a laser cutter) are managed by a PLC. For applications requiring precise intermediate positioning, proportional pneumatic valves or electric actuators can be incorporated for certain axes. This blends the simplicity, speed, and lower cost of pneumatics with the programmable intelligence of electronics.

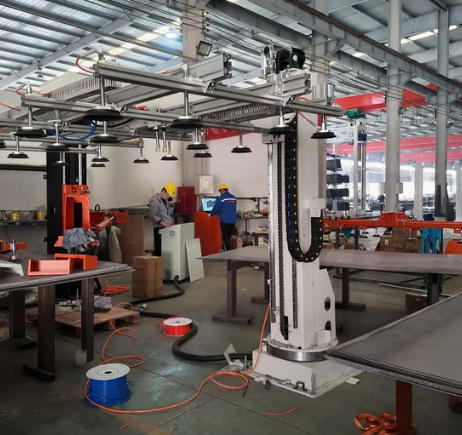

The operational specs are impressive. Designed as a robust Pneumatic Cantilever Loading Manipulator, it leverages a cantilevered arm for a wide working envelope. It can manage substantial plate weights up to 1000KG thanks to powerful air cylinders and a sturdy mechanical structure. The 8 suction cups provide a large, stable adhesion area, crucial for handling large, thin sheets (from 1mm thick) without bending. The Pneumatic/Electric power mode signifies that while the muscle (lifting, gripping) is pneumatic, the brain (control system, sensors) is electric, offering the best balance of force, speed, and control.

The benefits of implementing such a system are multifaceted. It dramatically reduces reliance on manual labor for repetitive, heavy lifting tasks, mitigating ergonomic injury risks. It increases production throughput through faster, tireless cycling. It improves process consistency by placing materials in the exact same position every time. Furthermore, pneumatic systems are known for their durability, ease of maintenance, and safe operation in clean or explosive environments where electric sparks are a concern.

In summary, the Advanced Pneumatic Arm Manipulator System is a testament to practical, flexible automation. It offers a compelling entry point or enhancement for factories seeking to automate material handling. By providing a reliable, reconfigurable, and powerful means to manipulate sheets and other loads, it serves as a fundamental building block for creating a more efficient, safe, and productive industrial workspace, proving that advanced functionality can be achieved through intelligent engineering of fundamental technologies like pneumatics.
