Pneumatic cantilever loading manipulator

Herochu Pneumatic Cantilever Loading Manipulator: Revolutionizing Laser Cutting Automation with Precision and Power

In the competitive landscape of modern manufacturing, the efficiency of material handling operations directly dictates productivity, profitability, and workplace safety. The laser cutting process, a cornerstone of metal fabrication, is often bottlenecked by the manual loading and unloading of heavy, cumbersome sheets. This labor-intensive task is not only time-consuming but also poses significant risks of injury and material damage. Herochu, a brand synonymous with industrial innovation and engineered solutions, presents a transformative answer to this challenge: the Pneumatic Cantilever Loading Manipulator. This sophisticated automated auxiliary equipment is meticulously designed to seamlessly integrate with laser cutting systems, automating the material feeding process with unparalleled precision, reliability, and strength. By eliminating manual handling from the equation, this system unlocks new levels of operational fluency, allowing businesses to maximize their laser cutting investment and achieve a formidable competitive edge.

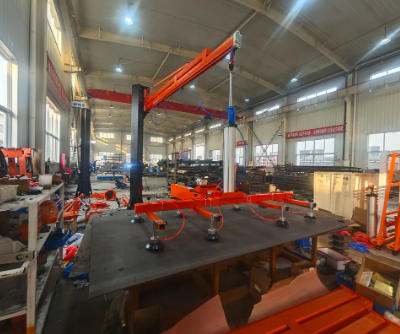

The core function of the Herochu Pneumatic Cantilever Loading Manipulator is to automatically transport sheet material—be it steel, aluminum, or other metals—to the working table of the laser cutting equipment for precise cutting operations. This is not a simple lifting device; it is an intelligent manipulator system that operates based on preset programs and instructions. Utilizing a robust combination of mechanical transmission and powerful pneumatic vacuum adsorption, the unit expertly grips, carries, and places materials with exceptional care and accuracy. Its advanced control system allows it to automatically identify the position, size, and shape of the material, ensuring it is conveyed to the designated position on the cutting bed and positioned with micron-level precision. This flawless preparation is critical for ensuring the subsequent laser cutting operation begins with perfect alignment, thereby guaranteeing cut quality and minimizing waste.

Unmatched Performance and Configurable Power

The Herochu Pneumatic Cantilever Loading Manipulator is engineered to handle the diverse demands of today’s fabrication shops. We offer a range of configurations to perfectly match your specific material profile, ensuring you never pay for capacity you don’t need nor are left wanting for more.

• Feeding Plate Thickness: Our models are available to expertly handle a wide spectrum of material gauges, from thin 1mm sheets up to heavy 20mm plate, ensuring versatility across various projects.

• Maximum Feeding Format: Designed for standard industrial sheet sizes, the manipulator efficiently processes formats up to 4000mm x 1500mm, making it compatible with the majority of laser cutting machines on the market.

• Minimum Feeding Format: The system maintains its precision and stability even with smaller sheets, handling formats down to 1250mm x 1250mm without compromise.

• Maximum Plate Weight: Engineered for heavy-duty performance, our manipulators offer formidable lifting capacities. Choose from models capable of handling 300KG, 500KG, or an impressive 1000KG, providing the muscle needed for the most demanding materials.

• Gripping Power: Each unit is equipped with eight high-performance suction cups. This configuration ensures a perfectly balanced and secure grip on the sheet throughout the entire movement cycle, preventing any slippage or deflection that could damage the material or cause a misalignment.

• Power Mode: The system employs an optimal hybrid power mode, utilizing pneumatic force for the powerful vacuum gripping and electric drives for precise motor control and positioning. This combination ensures both powerful lifting strength and energy-efficient, accurate movement.

The Cantilever Advantage: Intelligent Design for Superior Space Utilization

A defining feature of this system is its innovative cantilever retractable design. This engineering marvel provides a significant advantage over traditional loading systems. The cantilever arm can be adjusted and extended according to the specific length of the material being handled. This dynamic adjustability makes full use of every inch of available space within the workshop, particularly excelling in environments that store long-size materials such as pipes, profiles, and large sheets. It effectively eliminates the dead space often associated with the fixed dimensions of traditional material handling equipment, allowing for a more compact and organized factory layout. This high space utilization is a critical benefit for workshops where floor space is a premium asset.

Driving Tangible Business Benefits: From Efficiency to Economics

Integrating the Herochu Pneumatic Cantilever Loading Manipulator into your production line delivers a rapid return on investment through a multitude of tangible benefits:

1. Automated, Continuous Operation: The system achieves a fully automated and continuous loading operation, creating a seamless flow between material storage and the laser cutting process. This drastically reduces the time consumed in the loading link, making the entire production process significantly more fluent and efficient. The result is a substantial increase in output per unit of time, enabling businesses to easily meet the pressures of large-scale production runs and tight deadlines for urgent orders.

2. Versatility Across Materials and Needs: This is not a single-purpose machine. The Herochu manipulator is built to easily cope with a vast array of loading and unloading needs. Whether you are processing ferrous metals, non-ferrous metals, wood composites, or plastics, the system adapts to achieve stable and efficient loading operations. Its robust design and intelligent programming make it an indispensable asset for job shops with diverse client demands.

3. Significant Reduction in Labor Costs: Perhaps one of the most compelling advantages is the drastic reduction in reliance on manual labor. The manipulator effortlessly replaces human workers in performing the heavy, repetitive, and potentially dangerous tasks of material handling. This allows enterprises to reallocate valuable human resources to more skilled, value-added tasks like programming, quality control, and machine operation, thereby reducing overall labor costs and mitigating the risks associated with manual sheet handling.

4. Enhanced Workplace Safety: By automating the handling of heavy, sharp-edged materials, the system virtually eliminates the primary source of workplace injuries in the loading area. It minimizes risks related to musculoskeletal strains, crush injuries, and accidents, fostering a safer working environment and reducing potential liability and downtime associated with workplace incidents.

5. Protection of Material Investment: Precise, controlled handling means no more scratches, dings, or drops. The gentle yet firm pneumatic grip and smooth movement of the manipulator ensure that valuable sheet material arrives at the cutting bed in perfect condition, preserving its quality and reducing costly scrap caused by handling damage.

Certified Quality and Assurance

Herochu’s commitment to excellence is unwavering and is validated by the most rigorous international standards. Our manufacturing processes and the Pneumatic Cantilever Loading Manipulator itself are CE, UE, and ISO 9001 certified. This triple certification provides our clients with absolute confidence, guaranteeing that the equipment meets stringent European health, safety, and environmental protection directives, and is produced under a certified quality management system that ensures unparalleled reliability, durability, and performance.

Conclusion: The Essential Link in Your Automated Workflow

The Herochu Pneumatic Cantilever Loading Manipulator is more than just a piece of equipment; it is the essential link that bridges material storage and laser processing, creating a truly integrated and automated manufacturing cell. It represents a strategic investment in the future of your business, delivering gains in productivity, safety, and cost-efficiency that directly enhance your bottom line.

Customizable to your specific workshop requirements and starting at $1,698, the Herochu Pneumatic Cantilever Loading Manipulator is the definitive solution for fabricators seeking to lead, not follow. Contact our engineering team today for a detailed consultation. Let us help you design and implement the perfect automated loading solution to optimize your laser cutting operations and propel your productivity to new heights.
