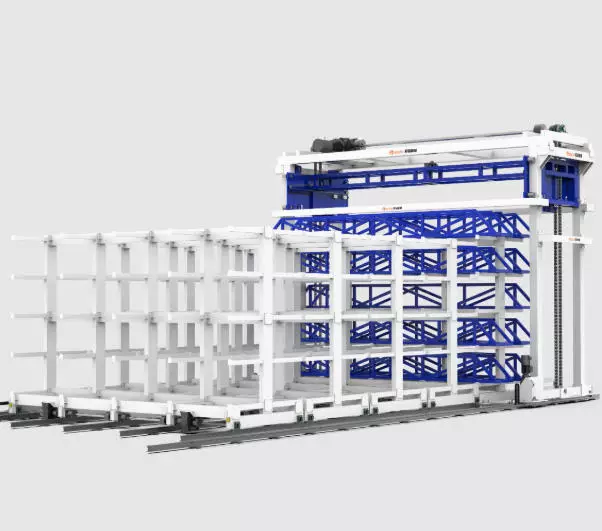

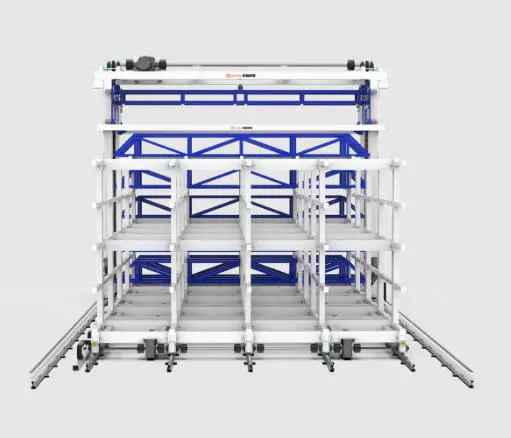

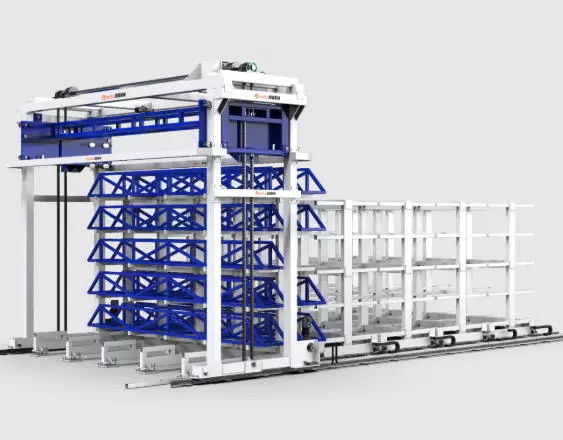

Pipes automatic storage unit

The three-dimensional material warehouse is a double tower, 17 layers of feed tower and 19 layers of main material tower, with a total of 36 storage locations. The single-storey 470mm bin can store profiles with a diameter of 220mm and a length of6000mm and below. The rated load capacity of the single-storey bin is 3000kg.

Pipes automatic storage unit

　Details of Pipes automatic storage unit

The system consists of a set of loading and unloading gantry system, profile material racks, material frames, and guide rails. The main structure has a high load-bearing capacity, is sturdy and durable, and can store single or bundled profiles of different types. The number of layers and quantity of the racks can be customized according to the factory.

Specification	6000mm
Number of floors	Customizable
Load per layer	3T
mode of movement	linear guide rail + chain
transmission mode	chain drive
vertical lifting speed	9m/min
inlet and outlet speed	12m/min
Size of each grid	600*500
Number of storage units	Customizable
