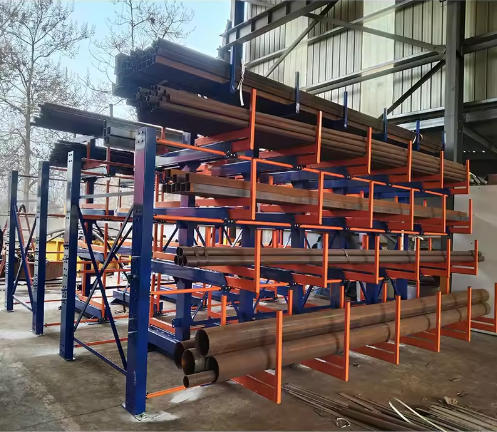

Pipe Storage Warehouse Heavy Duty Cantilever Rack

Pipe Storage Warehouse Heavy Duty Cantilever Rack

Engineered for steel fabricators, warehouses, and logistics centers handling pipes, sheet metal, and long materials, Herochu’s Electric Cantilever Rack system redefines industrial storage efficiency. CE, UE, and ISO 9001 certified, these racks deliver unparalleled safety and adaptability for workshop environments.

Pipe Storage Warehouse Heavy Duty Cantilever Rack

Specification

Model	HC-G6053S	HC-G6053D	HC-G9055S	HC-G9055D
Load (single layer)	3t	3t	5t	3t
Tube Length	6m	6m	9m	9m
Layers	4+1
Available dimensions of compartment	Depth * Height: 600×400,600×600,800×600 mm
Overall dimensions/mm	6435x3340x1550	6435x3340x1750	9435x3340x1550	9435x3340x1750
Cantilever movement mode	Single-side power-assisted type	Double-side power-assisted type	Single-side power-assisted type	Double-side power-assisted type
Height from the ground	330mm
Top floor height from ground	3040mm		3840mm
Column spacing	1800mm		1500mm
Note: Both manual and electric can be customized, and the load-bearing capacity, length, number of layers, and layer height can be customized.

Revolutionizing Heavy-Duty Pipe Storage with Herochu Electric Cantilever Racks

Core Advantages

Smart Electric Operation
- Single/double-sided power-assisted cantilever arms (2°–4° tilt) prevent material scattering during loading.
- 12-layer vertical storage capacity with 3–8 tons per layer load rating.
- Remote-controlled telescopic arms enable operator-safe access from ground level.
Customized Industrial Solutions
- Modular design supports 6m or 9m tube lengths with adjustable compartment dimensions (600×400mm to 800×600mm).
- Column spacing options (1500mm/1800mm) accommodate forklift maneuverability.
- Powder-coated steel frames in RAL colors for corrosion resistance.
Certified Durability
- Reinforced arm ends with anti-slip retainers and extended base bracing.
- Top-floor height up to 3840mm with 330mm ground clearance for drainage.

Technical Specifications

Model	HC-G6053S	HC-G6053D	HC-G9055S	HC-G9055D
Load/Layer	3T	3T	5T	3T
Tube Length	6m	6m	9m	9m
Layers	4+1	4+1	4+1	4+1
Overall Dimensions	6435×3340×1550mm	6435×3340×1750mm	9435×3340×1550mm	9435×3340×1750mm
Movement Mode	Single-side	Double-side	Single-side	Double-side

Why Choose Herochu?

Space Optimization: 12-ton storage per floor reduces footprint by 40% vs. conventional racks.
Safety Compliance: Meets EN 15635:2008 standards for cantilever racking systems.
Scalability: Hybrid manual/electric configurations available for phased upgrades.

Ideal for steel mills, construction material depots, and automotive parts storage, Herochu’s racks minimize handling time while maximizing vertical space utilization. Contact our engineering team for site-specific CAD layouts and load simulations.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
