Panel Vacuum Suction Cup Lifter

Herochu’s Small Suction Cup revolutionizes workpiece handling with its compact automatic design that combines vacuum technology with exceptional maneuverability. Using a high-performance vacuum pump as its power source, this versatile tool securely lifts various materials including glass, metal plates, and composite panels with unmatched reliability.

Panel Vacuum Suction Cup Lifter

Fast, Safe & Efficient Material Handling

Key Features & Benefits

✔ 360° Vertical & 90° Horizontal Rotation

Manual rotation capability for precise positioning
Complete flexibility in workpiece orientation

✔ Adjustable Suction Cup Holder

Telescopic ends accommodate varying workpiece sizes
Ideal for operations with frequent dimension changes

✔ Premium Vacuum Components

Imported oil-free vacuum pump ensures clean operation
High-efficiency valves for consistent performance

✔ Enhanced Safety Systems

Integrated accumulator maintains vacuum during power fluctuations
Pressure detection provides real-time monitoring

✔ Optimized Workflow Integration

Suction cup position adjustable for different applications
Manual closure capability when needed
Perfect pairing with bridge cranes or cantilever cranes

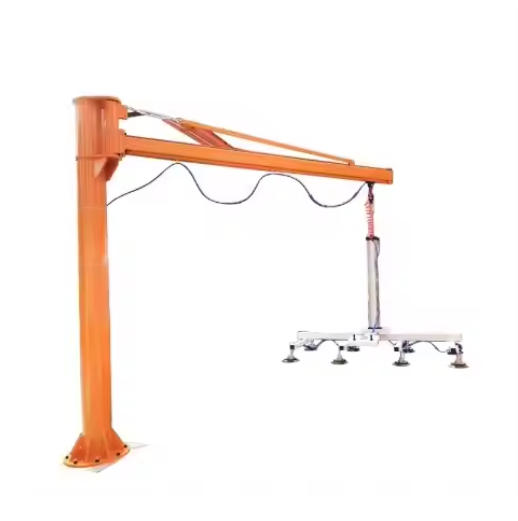

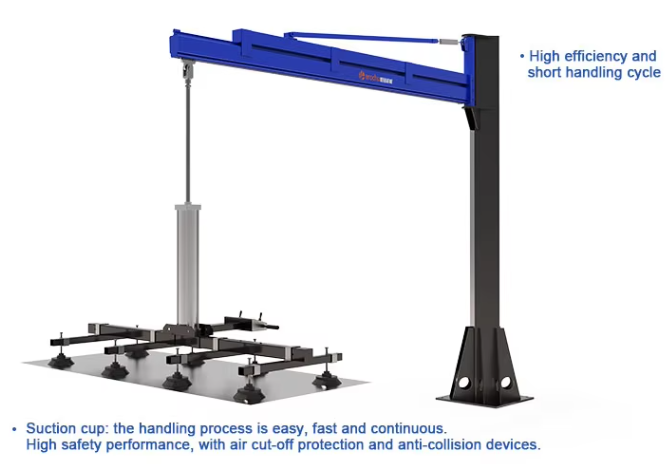

Cantilever Lifter Machine Metal Sheet Manipulator Machine

Ideal for Multiple Applications

This compact lifting solution excels in:

Glass installation projects
Metal plate handling in fabrication shops
Precision component placement in manufacturing
General material transfer operations

Upgrade your material handling today with Herochu’s Small Suction Cup – where safety, efficiency, and versatility meet in one compact package. Experience faster operations, reduced labor costs, and improved workplace safety with this innovative vacuum lifting solution.

Specification

Model	HC-PR3015-300	HC-PR3015-500	HC-PR3015-1000	HC-PR4020-300	HC-PR4020-500
Thickness of feeding plate	8mm	12mm	20mm	8mm	12mm
Maximum feeding width	3000*1250mm			4000*1250mm
Minimum feeding width	1250*1250mm			1250*1250mm
Maximum plate weight	300kg	500kg	1000kg	300kg	500kg
Number of suction cups	8	8	10	8	8
Suction cup diameter	200	200	250	200	200
Power mode	Pneumatic/Electric

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
