Optimizing Warehouse Space with Heavy-Duty Drawer-Type Plate Shelving Racks

In modern industrial environments where space optimization and operational efficiency are paramount, drawer-type plate storage systems have emerged as game-changing solutions. These innovative storage racks combine heavy-duty construction with intelligent design to revolutionize material handling in warehouses and manufacturing facilities. Unlike traditional static shelving units, drawer-type systems offer dynamic accessibility while maintaining structural integrity under extreme loads.

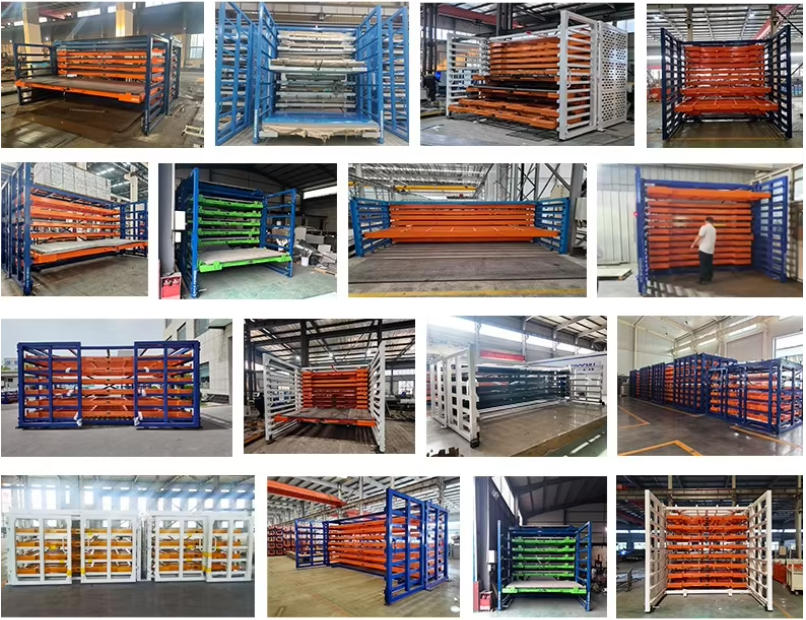

At the core of these storage systems lies the drawer-type plate shelving warehouse rack, a product category that has gained significant traction in industries ranging from automotive manufacturing to aerospace engineering. The primary innovation of these systems is their ability to combine high-density storage with immediate accessibility – a combination that addresses two of the most persistent challenges in industrial material management.

The Engineering Marvel Behind Drawer-Type Racks

Superior Material Composition

The foundation of these storage systems is constructed from Q235B high-quality carbon steel, a material specifically selected for its optimal balance of strength and workability. This steel grade offers:

• Exceptional yield strength (235 MPa minimum)
• Good ductility for precise fabrication
• Excellent weldability using CO₂ shielded welding techniques
• Superior corrosion resistance in industrial environments

The use of CO₂ shielded welding ensures that all structural joints maintain maximum strength throughout the product’s lifecycle. This welding method creates a protective gas shield around the weld pool, preventing atmospheric contamination and resulting in clean, strong joints with minimal spatter.

Advanced Slide Rail Technology

The drawer operation mechanism represents the most significant technological advancement in these storage systems. The precision-engineered slide rails incorporate:

• Ball-bearing roller systems for effortless movement
• Double-layered safety stops to prevent accidental disengagement
• Adjustable tensioning mechanisms to maintain optimal drawer alignment
• Dust-resistant seals to protect internal components

These features combine to create drawer operation that requires minimal physical effort while maintaining absolute precision in positioning. The smooth sliding action reduces operator fatigue and significantly decreases the risk of workplace injuries associated with manual material handling.

Structural Design Innovations

The multilayer design of these storage systems maximizes vertical space utilization while maintaining structural stability. Key design elements include:

• Modular construction allowing for height customization
• Cross-bracing reinforcement between levels
• Load-distributing foot plates
• Adjustable leveling feet for uneven surfaces

The cantilever design of the main sub rack form eliminates the need for center support columns, creating unobstructed access to stored materials. This design also allows for easy integration with automated retrieval systems, making it future-proof for smart warehouse applications.

Comprehensive Benefits Across Industries

Operational Efficiency Enhancements

The drawer-type design fundamentally transforms material retrieval processes:

• Reduced material handling time by up to 60% compared to conventional shelving
• Elimination of “search time” for specific items
• Ability to maintain organized inventory without requiring additional space
• Integration with automated retrieval systems for seamless operation

In manufacturing environments where time is money, these efficiency gains translate directly into improved productivity and reduced operational costs.

Safety Improvements

The design prioritizes workplace safety through:

• Controlled drawer movement preventing sudden material shifts
• Integrated safety locks during transportation
• Enhanced visibility of stored materials
• Reduced need for manual lifting and carrying

These safety features contribute to creating work environments that meet or exceed OSHA standards while reducing workplace accident rates.

Space Optimization Advantages

The multilayer design enables:

• Vertical density increases of up to 300% compared to single-level storage
• Customizable configurations to fit available space
• Ability to store materials up to 6 meters in length
• Compact footprint even when fully loaded

This space optimization is particularly valuable in urban industrial settings where real estate costs are high and available space is limited.

Corrosion Protection System

The powder-coated finish provides comprehensive protection against:

• Rust formation in humid environments
• Chemical corrosion from industrial substances
• UV degradation in outdoor applications
• Abrasion damage during material handling

This protection system ensures long-term performance even in harsh industrial environments, significantly extending the product’s service life.

Customization Options for Diverse Applications

Size Configurations

Available in four standard size configurations:

1. 2500×1300mm – Compact solution for smaller facilities
2. 3000×1500mm – Balanced option for medium-sized operations
3. 4000×2000mm – High-capacity configuration for large-scale storage
4. 6000×2000mm – Maximum capacity for long materials

Layer Customization

Three layer configuration options:

• 5-layer – Standard configuration for general use
• 7-layer – Enhanced vertical storage solution
• 8-layer – Maximum density option for space-constrained environments

Material-Specific Solutions

The drawer-type design excels in storing:

• Sheet metal components
• Long metal profiles
• Plastic sheets
• Composite materials
• Glass panels

Industry-Specific Applications

Proven performance in:

• Automotive manufacturing (body panels, chassis components)
• Aerospace (aircraft skins, structural elements)
• Construction (architectural panels, prefabricated elements)
• Electronics (large format components, display panels)
• Furniture manufacturing (large panels, cabinet components)

Quality Assurance and Certification

Comprehensive Testing Protocols

Each unit undergoes:

• Static load testing up to 150% of rated capacity
• Dynamic cycle testing simulating years of operation
• Environmental testing for temperature and humidity extremes
• Vibration testing for transportation durability

International Certifications

Compliance with:

• CE certification for European market requirements
• ISO 9001 quality management standards
• Industry-specific safety certifications

Quality Control Processes

Stringent quality assurance measures include:

• In-process inspection at every manufacturing stage
• Final comprehensive inspection before shipment
• Third-party verification for critical components
• Documentation of all quality control procedures

Global Service Network

Installation Support

Professional services include:

• Site assessment and layout planning
• On-site installation by certified technicians
• Operational training for staff
• Performance verification testing

After-Sales Support

Comprehensive support system features:

• 24/7 technical assistance hotline
• Spare parts availability guarantee
• Regular maintenance check reminders
• Warranty service network

Custom Design Services

Free design services include:

• Space utilization analysis
• Material flow optimization
• Integration with existing systems
• Future expansion planning

Environmental Considerations

Sustainable Material Use

• High recycled content in steel components
• Long service life reducing replacement frequency
• Energy-efficient manufacturing processes

End-of-Life Management

• Take-back program for end-of-life units
• Recycling partnership with steel processors
• Upgrading options for existing installations

Future-Proofing Your Investment

Smart Warehouse Integration

Compatibility with:

• Automated retrieval systems
• Inventory management software
• IoT-enabled monitoring
• Predictive maintenance systems

Expansion Options

Modular design allows for:

• Gradual capacity increases
• System upgrades without full replacement
• Cross-compatibility with other storage solutions

Conclusion

The drawer-type plate shelving warehouse rack represents a significant advancement in industrial material storage solutions. By combining heavy-duty construction with intelligent accessibility features, these systems offer unparalleled advantages in operational efficiency, workplace safety, and space utilization. Whether implemented in automotive manufacturing plants, aerospace facilities, or construction material storage centers, these innovative storage solutions provide measurable improvements in productivity and cost-effectiveness. The comprehensive customization options ensure that each installation can be precisely tailored to meet specific operational requirements, making these drawer-type storage systems a strategic investment for forward-thinking industrial operations.
