Optimize Material Flow with a Roll Out Cantilever Rack: The Ultimate Guide

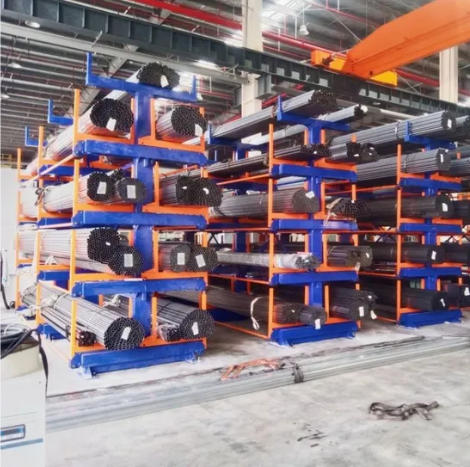

When operational smoothness and direct access are critical, the Roll Out Cantilever Rack stands as a superior evolution in industrial storage. Designed for seamless integration with overhead lifting systems, this rack transforms how you interact with stored inventory. It is the ideal solution for warehouses, fabrication shops, and distributors seeking to optimize material flow for items like steel sheets, plates, and, prominently, pipe storage.

Optimize Material Flow with a Roll Out Cantilever Rack: The Ultimate Guide

The Principle of Roll-Out Technology

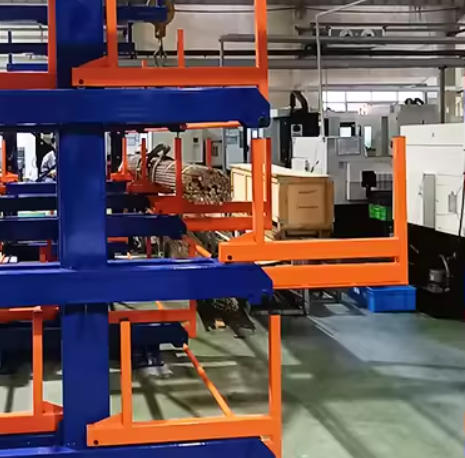

Unlike static racks, a Roll Out Cantilever Rack features each storage level mounted on a chassis equipped with high-precision ball bearing guide rails. This allows entire layers to roll out smoothly into the aisle, presenting the entire load directly to the crane operator. This “bring-the-shelf-to-you” functionality is a game-changer for efficiency.

Detailed Features and Operational Advantages
The parameter table highlights the system’s flexibility, with standards for 6000mm, 9000mm, and 12000mm storage lengths and capacities up to 3 tons per layer. Let’s delve into the features that make this possible:

Direct Crane-to-Rack Interface: The core advantage is that material is handled by crane, eliminating the need for wider aisles, thus saving space. The 100% extended arms capability means the crane can place or retrieve material directly, saving significant time.
Superior Engineering for Heavy Loads: The solid structure with heavy loading capacity is non-negotiable. The combination of thickened columns, precise welding, and scientific structural design ensures each shelf handles immense weight with ease, ensuring long-lasting performance.
Enhanced Safety and Precision: The system is engineered for control. The smooth glide of the bearings prevents jarring movements. Optional sheet support devices enable storage and retrieval of items of different sizes to be performed more gently and precisely, protecting both the material and the rack.
Full Visibility and Organization: Roll-out drawers provide full access to every sheet or pipe. No more digging through a pile. This allows for impeccable organization, where materials can be stored by categories or size, drastically reducing search and retrieval time and reducing injuries associated with manual searching.

Applications and Customization

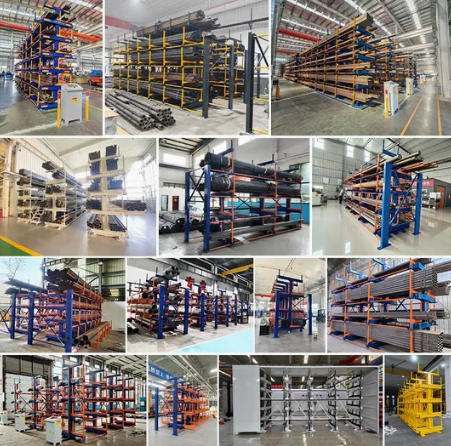

This system is perfect for the metalworking industry, acting as a fastener and sheet metal storage solution. The availability of single or double units and fully customized dimensions means it can be tailored for any facility layout. Whether you need a compact 3+1 layer setup or a massive 4+1 layer giant, the configuration adapts to you.

In essence, the Roll Out Cantilever Rack is more than storage; it’s a productivity engine. By providing organized storage that eliminates the dangers of unsafe stacking, it creates a safer, faster, and more manageable workflow for handling heavy-duty pipe storage and other long materials.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
