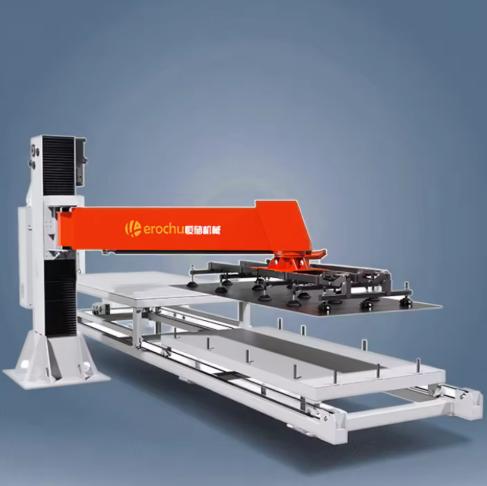

New Fully Automatic Servo Swing Arm Handling Manipulator

New Fully Automatic Servo Swing Arm Handling Manipulator

This advanced automation solution revolutionizes material handling processes in industrial settings. Featuring high-precision servo control, it ensures smooth, stable, and rapid movements, making it ideal for automated production lines. Its robust structure and intelligent design effectively reduce labor costs while improving operational accuracy.

Category Swing Arm Servo Manipulator Tag New Fully Automatic Servo Swing Arm Handling Manipulator

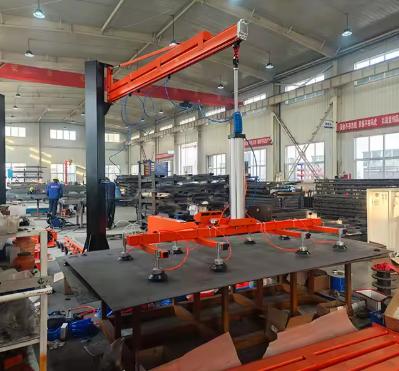

New Fully Automatic Servo Swing Arm Handling Manipulator

Key Features

High-Precision Servo Control: Ensures smooth, stable, and rapid movements for optimal efficiency.
Convenient & Flexible: Modular assembly structure allows for easy assembly and disassembly, reducing space waste.
Security Assurance: Equipped with emergency stop protection and an automatic power-off safety braking system, ensuring personal and equipment safety.
Economical & Ergonomic: Simple, coherent, and efficient loading operation designed to reduce operator fatigue.
Advanced Automation: 120° smooth arm swing for intelligent production (Industry 2.0 ready).

Technical Specifications

Model Numbers & Configurations:

HC-R3015-500 / -750 / -1000
HC-R4020-500 / -750

Specification	HC-R3015 Series	HC-R4020 Series
Standard Model	3015 / 4015 / 4020mm	3015 / 4015 / 4020mm
Maximum Load Capacity	300kg / 500kg / 1000kg	300kg / 500kg
Feeding Plate Thickness	8mm (500kg) / 12mm (750kg) / 20mm (1000kg)	8mm (500kg) / 12mm (750kg)
Max Feeding Width	3000 x 1500 mm	4000 x 2000 mm
Min Feeding Width	1250 x 1000 mm	1250 x 1000 mm
Number of Suction Cups	15 (500/750kg) / 118 (1000kg)	15
Suction Cup Diameter	150mm (500kg) / 200mm (750kg) / 250mm (1000kg)	150mm (500kg) / 200mm (750kg)
Power Mode	Electric	Electric
Air Consumption	1.5 m³/min	1.5 m³/min
Air Source Pressure	0.6 – 0.7 Mpa	0.6 – 0.7 Mpa

Key Components

Drive System: High torque servo synchronous lifting mechanism & servo swing arm positioning transmission.
End Effector: Multiple sets of heavy-duty oil-resistant suction cups (each equipped with an individual opening and closing valve).
Pneumatic System: High-efficiency SNS pneumatic system.
Control System: Original imported Omron CNC control system with integrated power outage safety protection.

Applications & Industries Served

Material Handling: Ideal for loading and unloading metal sheets and components.
Industries: Electrical cabinet manufacturing, metal sheet fabrication, and general industrial loading tasks.

Packaging & Delivery

Package Size: 3200.00 cm x 1550.00 cm x 1550.00 cm
Package Gross Weight: 1300.00 kg

Certifications & Compliance

Standards: CE compliant.
Safety Features: Dual vacuum system, automatic braking, emergency stop protection.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.

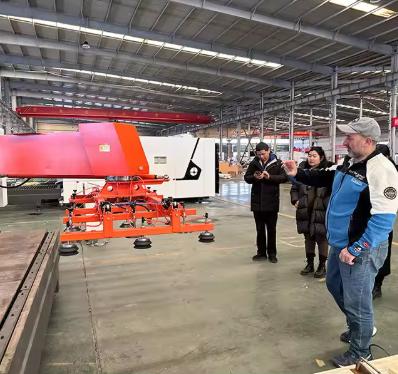

Customer visit
