Multi-Tower Sheet Metal Storage Systems

Choosing the Right Configuration: Mono, Double, and Multi-Tower Storage Systems

Selecting an automated storage solution is a strategic decision that hinges on specific operational requirements, throughput needs, and spatial constraints. The tower-type automated material storage system offers versatile configurations to suit a wide spectrum of applications. Understanding the differences between Mono, Double, and Multi-Tower setups is crucial for identifying the optimal solution that balances performance, cost, and footprint. Each configuration offers unique advantages tailored to different stages of production and scales of operation.

The Mono Tower: Compact, Efficient, and Ideal for Point-of-Use Storage
The Mono Tower configuration is the essential building block—a single, self-contained vertical storage column served by one dedicated automated lift. This design is renowned for its simplicity, reliability, and space-saving elegance. It is the perfect choice for point-of-use storage or machine-side staging. For instance, in a metal fabrication shop, a Mono Tower can be positioned directly beside a laser cutting or press brake machine. It stores the raw sheet metal or finished parts, feeding the machine on demand and receiving its output, creating a highly efficient, automated work cell. The operator interface is straightforward, often consisting of a simple terminal or even a barcode scanner. The benefits of the Mono Tower include a lower initial investment, a very small footprint, and ease of installation and integration into an existing layout. It excels in applications where the storage volume for a specific material type is consistent and the required retrieval speed is high for a single, dedicated process.

The Double Tower: Enhanced Throughput with Shared Resources
When storage capacity needs exceed a single tower but a full multi-tower complex is not yet justified, the Double Tower configuration presents an excellent middle ground. This setup typically features two parallel storage towers served by a single, centrally located automated lift. A key component here is often a transfer trolley or shuttle system. The lift retrieves or stores a load in one tower and can use the trolley to move horizontally to service the second tower, all within one integrated cycle. This configuration effectively doubles the storage capacity without doubling the cost of the most expensive component—the lift mechanism. The Double Tower is ideal for applications requiring a broader range of materials at a single workstation or for managing both input and output materials for a production line. It offers a great balance, providing more compartment diversity and higher total load capacity while maintaining a relatively compact footprint and efficient use of the automated handling equipment.

The Multi-Tower Complex: The Heart of an Automated Central Warehouse

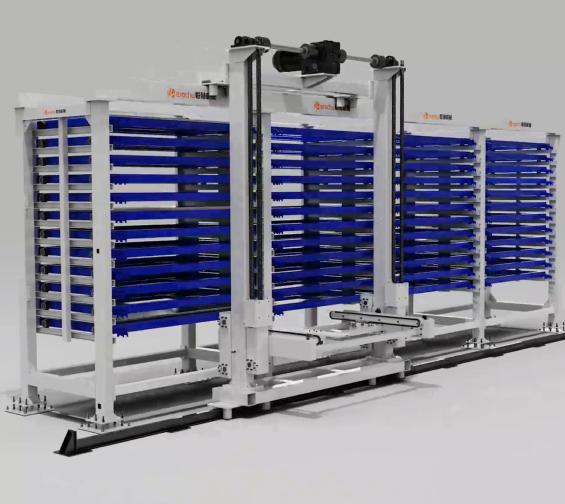

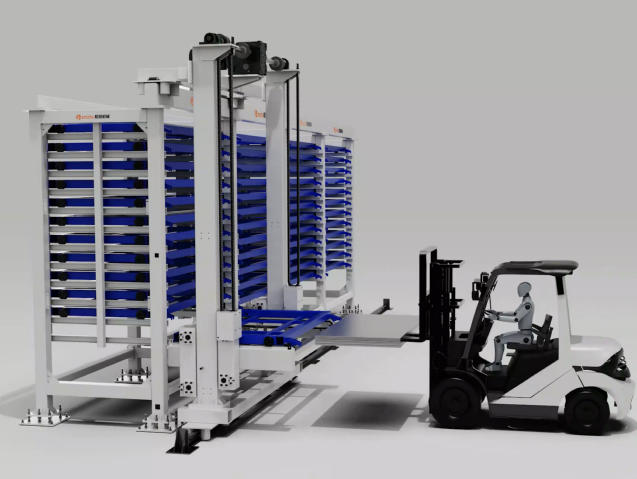

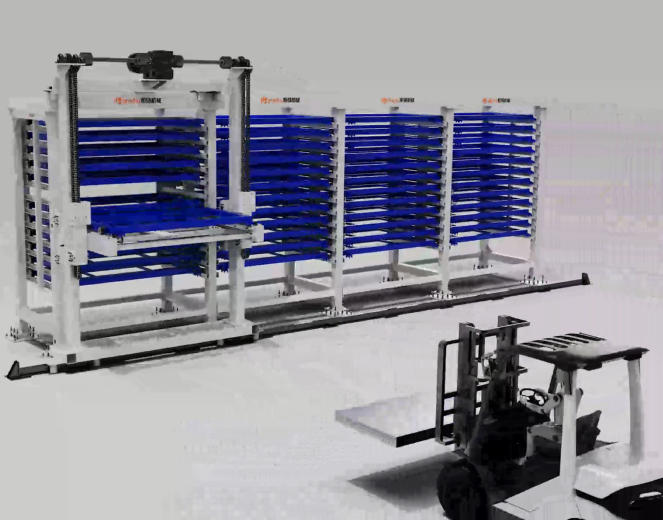

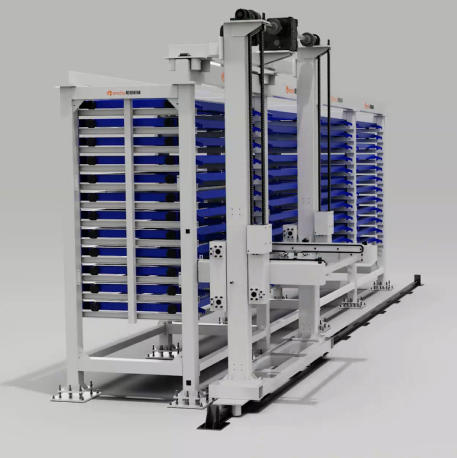

For large-scale warehousing, central storage, or factory-wide material management, the Multi-Tower configuration is the ultimate solution. This system links several individual towers—often arranged in rows or blocks—into a cohesive, fully automated storage and retrieval system (ASRS). A network of lifts and sophisticated horizontal transport systems, such as rail-guided vehicles or conveyor systems, connects the towers. This creates a vast, high-density storage matrix managed by a central computer. Multi-Tower complexes are the backbone of major manufacturing plants, where they store everything from raw materials and work-in-progress to finished goods, tools, and molds. They serve multiple discharge stations located throughout the facility, automatically routing materials to different assembly lines, shipping docks, or production cells based on digital commands from the WMS. The advantages are unparalleled scale, maximum space utilization, and the ability to handle an extremely wide variety of SKUs with complete traceability and automation. While representing a more significant capital investment, the ROI is realized through massive labor savings, zero misplacements, optimal space use, and seamless integration with factory-wide logistics.

The choice between these configurations is not merely about size; it’s about workflow strategy. A facility might employ several Mono Towers at different machine cells for dedicated material supply, a Double Tower for a central tool crib, and a large Multi-Tower system for raw material inventory. This hybrid approach allows for tailored automation at every touchpoint. Key decision factors include: required storage volume and variety, target throughput speed (retrievals per hour), available floor space and ceiling height, budget constraints, and the desired level of integration with existing production and software systems. Consulting with an experienced systems integrator is highly recommended to model different scenarios and design a configuration that delivers optimal efficiency for years to come.
