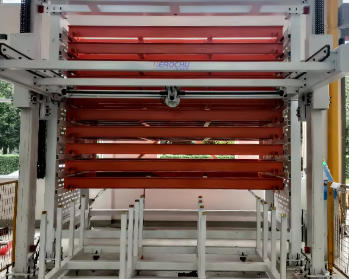

Multi-Layer Automatic Plate Storage Warehouse

Maximizing Density with Intelligence: The Multi-Layer Automatic Plate Storage Warehouse

In the pursuit of operational excellence, manufacturers are constantly challenged to do more within existing spaces. The Multi-Layer Automatic Plate Storage Warehouse is the definitive solution to this challenge, offering an unparalleled combination of storage density, automated access, and intelligent inventory management. This system is designed for facilities that handle high volumes of steel plates and require fast, random access to any sheet without compromising on space or organization.

The architecture of this system is defined by its vertical ambition. Moving far beyond traditional 2- or 3-layer racks, it efficiently utilizes facility clear height with configurations ranging from 8 to 13 layers. This vertical stacking, managed by an automated retrieval machine, allows for extraordinary storage density. Each layer is a fully accessible storage lane, with load per layer capacities robustly designed for 3T or 5T, ensuring even the heaviest plates are securely housed. The structure itself is the product of meticulous engineering, with all critical supports validated through finite element stress analysis to ensure they can withstand the cumulative weight and dynamic forces of automated operation.

The “Automatic” in its name is delivered by a sophisticated internal material handling system. The heart of the warehouse is often an Automatic Two-Tower Plate Storage and Retrieval System. This design features two independent vertical lifting columns (towers) that service the storage racks. Each tower is equipped with a shuttle or a fork mechanism that travels vertically and extends horizontally into the rack bays to store or retrieve plates. The mode of movement for these shuttles relies on high-stability linear guide rail + chain systems, ensuring precise alignment when accessing each storage slot. The transmission mode via chain drive provides the necessary power and reliability for continuous duty.

Performance metrics are impressive. The vertical lifting speed of the retrieval machine is optimized at 9m/min for smooth, controlled movement of heavy loads, while horizontal transfer speeds are even higher. This coordinated motion ensures quick cycle times. The system’s intelligence is embedded in its Warehouse Management Software (WMS), which coordinates the towers to optimize retrieval paths and balance workload.

A key feature is its seamless integration with external processes, functioning as the core of a comprehensive Warehouse Steel Plates Storage Sheet Automatic Loading and Unloading System. At the input/output (I/O) stations, plates are automatically fed into or received from the storage matrix. The system supports real-time monitoring through IoT sensors, enabling features like overheight steel plate detection to prevent loading errors and empty slot verification for optimal put-away decisions.

The operational benefits are substantial. Space utilization improvement is the most obvious, dramatically increasing storage capacity within the same footprint. Inventory accuracy reaches near-perfect levels through One item, one code management with RFID tracking. The system provides full Inventory Statistics and Real-Time Monitoring, sending alerts for any operational anomalies via Fault Detection and Alerting via Sensor Data Analysis.

Furthermore, the system is built to be globally adaptable. With default languages: Chinese & English in its control interface, and region-specific language customization available, it can be deployed and operated seamlessly in multinational corporations. Like all our premium products, its construction is backed by a rigorous quality process where every interface and connection is verified, ensuring the system delivers reliable performance for years to come.
