Maximizing Warehouse Density with a Heavy-Duty Hand-Cranked Pipe Rack for Efficient Tube Storage

Meta Description: Stop digging for stock. Discover how a Heavy-Duty Hand-Cranked Pipe Rack for Efficient Tube Storage can triple your floor space, protect high-value surfaces, and integrate with overhead cranes for zero-damage logistics.

In the competitive world of steel service centers and metal fabrication, space is the final frontier. If your facility is still storing stainless steel tubing, bar stock, or heavy pipes on traditional floor racks or static cantilevers, you are leaving money on the table. The bottleneck isn’t just space; it’s accessibility. The modern solution to this ancient problem is the Heavy-Duty Hand-Cranked Pipe Rack for Efficient Tube Storage. This isn’t just a shelf; it’s a dynamic storage system that transforms how you interact with long, bulky inventory.

The Problem with Static Storage

Traditional cantilever racks are a massive improvement over floor stacking, but they still present a significant logistical hurdle: the “drive-in” requirement. To access a bundle of pipes at the back of a static rack, a forklift operator must often navigate narrow aisles, potentially disturbing or damaging adjacent stock. For high-purity materials like electropolished 316L tubing, this is a disaster waiting to happen. Every time a fork blade slides between bundles, it risks scratching the surface, rendering the material scrap under strict industry standards like ASME BPE .

Furthermore, static racks dictate your aisle width. You need enough room for a forklift to maneuver a 20-foot bundle, which usually means sacrificing massive square footage to “dead air” aisles.

The Game-Changing Mechanics of the Crank-Out System

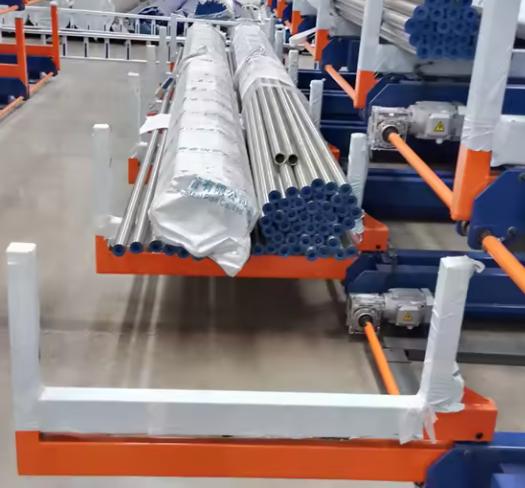

Enter the hand-cranked cantilever rack. At its core, this system converts static storage into a high-density drawer system. Each level operates independently, utilizing a robust rack-and-pinion gear system. With a simple turn of a hand crank, a single operator can extend a fully loaded arm—carrying up to 6,600 lbs or more—100% out into the aisle .

This mechanical advantage is crucial. Despite the heavy load, precision bearings and gear reduction mean the operator requires minimal physical effort (usually around 30-40 lbs of force), adhering to strict ergonomic safety standards and reducing the risk of musculoskeletal strain .

Achieving 3X Storage Density

How does a Heavy-Duty Hand-Cranked Pipe Rack for Efficient Tube Storage increase density? It changes the retrieval vector. Because the arms extend into the aisle, you no longer need to drive a forklift into the rack face. This allows you to:

• Compress Aisles: You can shrink your aisles significantly, often reclaiming up to 50% of your floor space immediately .

• Utilize Vertical Space Confidently: Stacking slippery, heavy pipes high on static racks is a safety hazard. With a telescopic system, the structure is anchored and stable, allowing you to stack 4, 5, or even 6 levels high. The top level is just as accessible as the bottom via an overhead crane .

Synergy with Overhead Cranes

The true genius of the crank-out design is its synergy with overhead cranes. Once the arms are extended, the material is exposed from the top down. This allows for a “zero-contact” retrieval method.

1. The operator cranks out the specific level containing the required SKU.

2. An overhead crane with nylon slings or vacuum lifters descends vertically onto the stack.

3. The load is lifted straight up, eliminating the metal-on-metal scraping caused by forklift tines .

This method not only protects the surface integrity of high-value materials but also speeds up retrieval times dramatically. What used to take 20 minutes of “digging” now takes under three .

Technical Specifications and Customization

When investing in a heavy-duty system, construction quality is non-negotiable. These racks are not built from light-gauge roll-formed steel; they utilize structural I-beams and H-beams to handle multi-ton loads.

• Load Capacity: Standard levels handle up to 6,600 lbs, with custom configurations reaching 11,000 lbs per level .

• Material Length: Systems are modular, designed to accommodate standard 20, 24, and 40-foot lengths without sagging by adding support columns .

• Safety Features: Look for anti-roll mechanisms, drawer locks, and protective linings like UHMW (Ultra-High Molecular Weight Polyethylene) strips on the arms to protect sensitive surfaces .

Is It Right for Your Operation?

If your warehouse deals with heavy, long goods where surface finish is critical—such as in the food, beverage, pharmaceutical, or aerospace industries—the hand-cranked system is indispensable. It transforms a chaotic, low-density storage area into a high-efficiency, organized hub. By removing the forklift from the retrieval equation, you reduce damage, increase safety, and unlock the true vertical potential of your facility.
