Maximizing Floor Space with a Heavy Duty Sheet Metal Racking System

Meta Description: Optimize your warehouse layout with a heavy duty sheet metal racking system. Explore vertical lift solutions, cantilever designs, and modular configurations to increase density and workflow.

Space is the most expensive commodity in any industrial facility. You can always order more steel, but you cannot easily order a larger building. This economic reality drives the need for vertical exploration—building up, not out. A heavy duty sheet metal racking system is the primary tool for achieving this density. However, maximizing space isn’t just about stacking higher; it is about intelligent design that integrates with your material flow.

The Vertical Imperative

Traditional floor stacking of sheet metal is notoriously inefficient. It requires wide aisles for forklifts to maneuver, it risks damaging the bottom sheets in a stack, and it limits access to materials at the bottom of the pile. Transitioning to a racking system immediately utilizes the cube of the warehouse.

Modern systems, such as Vertical Lift Modules (VLMs) or dual-tower systems, exemplify this principle. Consider the data from recent innovations in sheet metal storage: a heavy duty sheet metal racking system utilizing vertical lift technology can store up to 290,000 lbs of material in a footprint of just 280 square feet . This is achieved by using the full height of the facility—often up to 30 or 40 feet—which would otherwise be dead air space.

Deep Dive: The Vertical Lift System (VLS)

For manufacturers handling large-format sheets (like 4×8 or 5×10 foot plates), the heavy duty sheet metal racking system of choice is increasingly the Vertical Lift System. Unlike static pallet racks where a forklift must travel to a specific height to retrieve a pan, a VLS brings the material to the operator.

• Dual-Tower Efficiency: Newer models feature a dual-tower design serviced by a single elevator mechanism. This consolidates mechanical complexity—fewer motors and moving parts than two separate units—while effectively doubling storage capacity .

• Eliminating Aisles: Because the system delivers the tray to ground level, you eliminate the need for wide forklift aisles between every rack section. The storage density becomes almost solid, with only the machine interface point requiring floor space.

• Tray Engineering: The trays themselves are heavy-duty, designed to support large-format sheets without sagging. Adjustable storage locations within the tower allow you to mix material thicknesses and types in the same footprint, adapting to changing inventory needs .

Cantilever and Drawer Systems for Sheet Metal

While VLMs are high-tech solutions, cantilever racks remain a staple for a reason. A heavy duty sheet metal racking system based on cantilever design uses horizontal arms extending from a vertical column to support long, flat materials.

• Accessibility: Without front columns obstructing access, overhead cranes or forklifts can slide sheets in and out from the side.

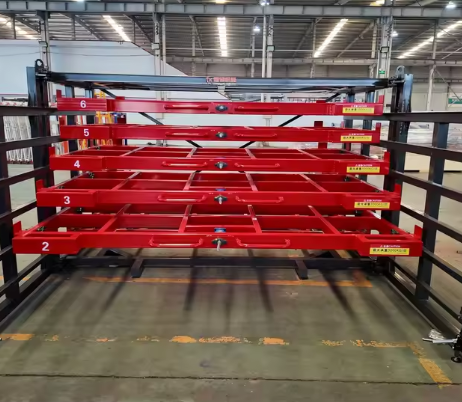

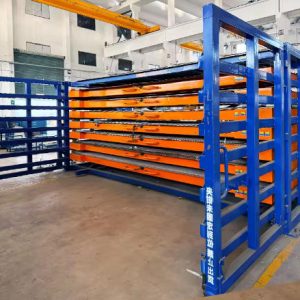

• Hand-Cranked Drawers: For smaller sheets or blanks, a multi-level hand-cranked roll-out rack is highly effective. These operate like heavy-duty filing cabinets. The operator cranks a handle to roll a shelf out into the aisle, providing top-down access to every sheet on that level without reaching over heads or battling with clamps . These systems can handle hundreds to thousands of kilograms per level, proving that “heavy duty” doesn’t have to mean “difficult to access.”

Modularity for Future Growth

A key feature of any professional racking system is modularity. The best systems are designed to be reconfigured. As production demands shift, you may need to store thicker plates or wider coils. A racking system with adjustable beam heights and bolt-together components allows you to repurpose the same steel framework for new applications .

Workflow Integration

Space efficiency is meaningless if it creates a traffic jam. An effective heavy duty sheet metal racking system is positioned relative to the production line. By locating the raw material storage directly adjacent to the laser cutter or press brake, you reduce travel time. Some automated systems are even designed to integrate directly with Material Handling Equipment (MHE), feeding sheets directly to the machine, thereby reducing labor costs and cycle times .

Implementing a heavy duty sheet metal racking system is the most effective strategy for reclaiming floor space. Whether you opt for a high-density automated VLS or a robust cantilever system, the transition from floor storage to engineered racking unlocks the latent potential of your facility’s cubic volume.
