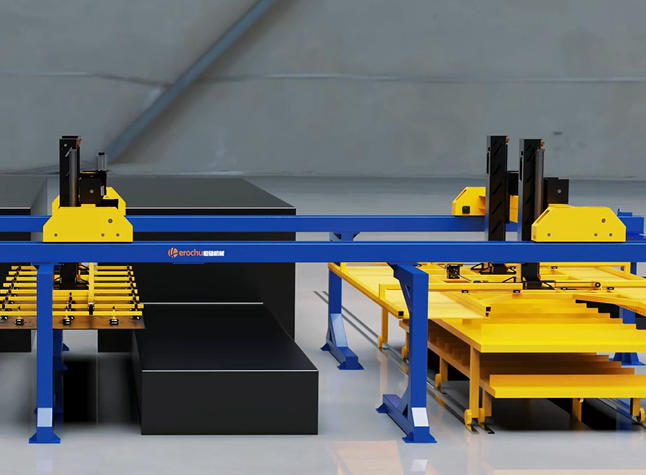

Manual loading and unloading System of laser cutting machine

The Hidden Tax of Manual Handling: Reclaiming Profitability in Your Laser Cutting Operation

You invested in a laser cutting machine for its blistering speed and pinpoint accuracy. It promises a revolution in throughput—a fast-paced production line where raw sheets enter and finished parts emerge with relentless efficiency. But there’s a bottleneck you might not have calculated for, a silent tax on your productivity that occurs every time the machine’s hum falls silent: the manual loading and unloading cycle.

While the laser head can dance across a sheet in minutes, the process of an operator lifting, positioning, waiting, removing, and sorting can take just as long. This manual dance isn’t just slow; it’s expensive, inconsistent, and risky. Your $500,000 asset sits idle, waiting on a human-paced process, effectively halving its potential ROI.

Herochu recognizes this critical disconnect. We are not just manufacturers of storage; we are engineers of workflow. Our Manual Loading and Unloading System for Laser Cutting Machines is a foundational automation solution designed to shatter this bottleneck. Starting at $13,999, this CE, UE, and ISO 9001 certified system isn’t about replacing your workforce; it’s about empowering them to achieve a new tier of productivity, safety, and consistency.

Deconstructing the Bottleneck: The True Cost of “The Manual Minute”

Let’s move beyond the obvious. The disadvantage of manual handling isn’t just that it’s “slow.” Its cost is multi-faceted and erodes your bottom line from several angles simultaneously.

1. The Geometry of Inconsistency:
A laser cutter operates in a perfectly calibrated digital world. Manual loading introduces the analog variable of human positioning. Even the most skilled operator cannot place a 4000x1500mm sheet with sub-millimeter repeatability, shift after shift. This minute variance forces the machine to spend crucial seconds re-measuring and re-orienting the sheet—a process known as “searching.” This not only adds time to every cycle but can also lead to material waste if the position is outside the machine’s compensation tolerance. Our system delivers the same, perfect placement every single time, eliminating search time and ensuring the cut begins the instant the sheet is secured.

2. The Physics of Fatigue and Risk:
Consider the kinetic energy involved. A single 3m x 1.5m sheet of mild steel, just 3mm thick, weighs approximately 106 kilograms (233 lbs). Lifting this repeatedly is not just arduous; it’s a direct occupational hazard. The risk of musculoskeletal injury—back strains, shoulder tears, crushed fingers—is not a matter of if, but when. This leads to skyrocketing insurance premiums, lost man-hours, and human suffering. Our system, with its powered rollers, lift-assist mechanisms, and ergonomic height adjustments, physically removes this burden from your team, transforming a high-risk role into a supervisory one.

3. The Psychology of the “Waiting Machine”:
There is a profound psychological impact on an operator whose primary role is to service a machine’s downtime. The workflow is inherently reactive and monotonous, leading to mental fatigue. This fatigue is the breeding ground for errors: a sheet placed upside down, a material type selected incorrectly in the software, or a stumble while moving finished parts. By automating the heavy lifting, your operator is elevated to a more engaging, cognitive role—overseeing quality, managing the digital workflow, and performing value-added tasks like deburring or packaging, all while the system keeps the laser fed and productive.

The Herochu Solution: A Bridge to a Fully Automated Future

Our Manual Loading and Unloading System is a masterclass in targeted automation. It is not an overwhelming, factory-wide robotic integration. Instead, it is a modular, customizable bridge that seamlessly integrates between your raw material storage (like a Herochu Sheet Metal Rack) and your laser cutting machine.

Core Components & Engineering Principles:

• The Powered Conveyance Bed: The heart of the system is a series of heavy-duty, powered rollers or friction belts. These are not simple conveyor belts; they are precision-engineered to handle the full weight spectrum of your materials without deflection. The drive system is designed for smooth, controlled acceleration and deceleration to prevent sheet shift during transport. The bed is tailored to the specific dimensions of your laser machine’s bed, ensuring a flush, continuous transfer.

• The Ergonomic Loading Interface: On the input side, the system is designed to meet your operator at an optimal working height. We can integrate a simple lift-assist platform or design the interface to connect directly with a sheet storage rack. This eliminates the dangerous “lift-and-pivot” motion, allowing the operator to slide the sheet effortlessly onto the powered rollers with minimal physical exertion.

• Intelligent Positioning Stops: Using a combination of programmable logic controllers (PLC) and physical end-stops, the system knows exactly where to place the sheet. The operator initiates the cycle, and the system automatically transports the sheet into the machine, stopping at the pre-calibrated zero point with unerring accuracy.

• The Unloading & Sorting Zone: This is where the system truly pays dividends. Once the laser completes its cycle, the entire cut sheet—comprising finished parts and the skeleton scrap—is automatically ejected onto the unloading table. This table is often equipped with a breakaway or slatted design. This allows the operator to easily separate the finished parts, which fall through or are collected separately, from the scrap skeleton, which is conveyed away to a dedicated bin. This single-handedly eliminates the time-consuming and delicate process of manually picking small parts from the machine bed.

The Tangible Return on Investment: A Line-Item Breakdown

Justifying the initial investment of $13,999+ is a matter of simple, yet powerful, arithmetic. Let’s analyze the ROI based on real-world operational gains.

Scenario: A shop running two shifts, with an average of 30 loading/unloading cycles per shift.

• Time Savings: Manual changeover (positioning, securing, searching, unloading, sorting) can easily take 5-7 minutes per cycle. The Herochu system can reduce this to a consistent 60-90 seconds.

  • Manual: 6 min/cycle * 60 cycles/day = 360 minutes (6 hours) of machine downtime.

  • Herochu System: 1.5 min/cycle * 60 cycles/day = 90 minutes (1.5 hours) of downtime.

  • Daily Gain: 4.5 hours of additional laser cutting time.

• Monetizing Gained Capacity:

  • If your laser machine generates an average of $150 per hour in gross profit, those 4.5 hours are worth $675 per day.

  • This translates to $3,375 per week and over $175,000 per year in recaptured productive capacity.

The system doesn’t just pay for itself; it becomes a profit-generating asset within a matter of weeks.

Additional Financial Benefits:

• Reduced Labor Cost: While you may not reduce headcount, you are leveraging a higher-value skillset. The cost of an operator’s time is no longer wasted on pure manual labor.

• Elimination of Damage: Automated handling prevents scratches, dings, and drops that can ruin expensive raw materials.

• Lower Insurance Premiums: A demonstrably safer workshop, with reduced risk of heavy-lifting injuries, can lead to lower workers’ compensation insurance costs over time.

A Customizable Foundation for Growth

The “Manual” in our system’s name refers to the level of integration, not its capability. It is the essential first step in automation. This system is inherently customizable, designed to grow with your business.

• Future-Proofing: The robust platform can later be integrated with an automated storage and retrieval system (ASRS) or a 6-axis robot for a fully lights-out production cell. You are building the foundation for your Factory 4.0 future today.

• Material Flexibility: We configure the roller spacing, power, and control software to handle your specific materials—be it thin gauge aluminum, thick steel plate, or non-metallic composites.

• Software Integration: The system can be configured to receive job data from your central server, automatically setting the positioning stops for different sheet sizes, further reducing the potential for human error.

---

Stop allowing a manual, 20th-century process to throttle your 21st-century technology. The downtime between cuts is not a break; it is a leak in your profitability. The Herochu Manual Loading and Unloading System is the plug.

Contact us today for a no-obligation, detailed workflow analysis. Our engineers will calculate your specific potential time savings and provide a system configuration that turns your laser’s idle time into your most valuable production asset.
