Manual Double Side Crank-Out Heavy-Duty Cantilever Rack

Maximize Workshop Efficiency with the Herochu Manual Double Side Crank-Out Heavy-Duty Cantilever Rack

For industrial operations and warehouses that manage long, bulky, or heavy materials, achieving optimal storage density, operational efficiency, and workplace safety is a constant challenge. Conventional static shelving often falls short, creating congested aisles and hazardous manual handling processes. The Herochu Manual Double Side Crank-Out Heavy-Duty Cantilever Rack is engineered as the definitive solution to these complex storage problems. This is not merely a rack; it is a sophisticated, high-capacity storage system designed to transform your material handling workflow.

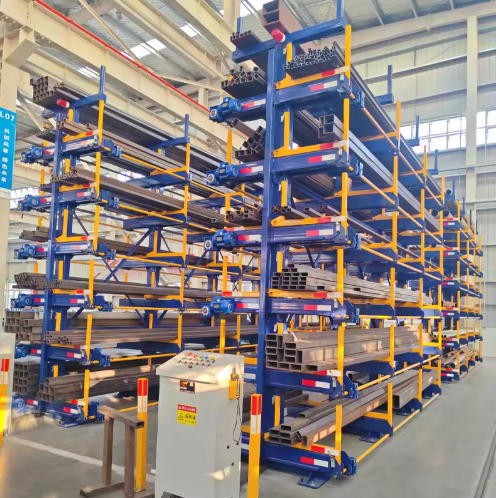

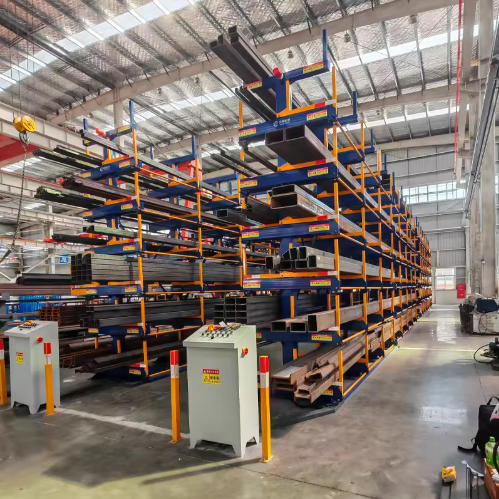

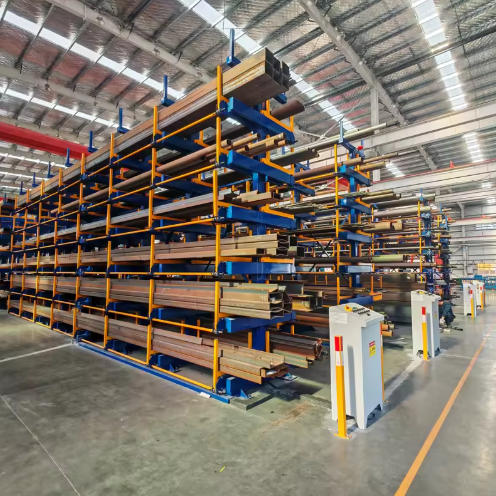

As a specialized iteration of the cantilever rack, this roll-out system retains all the inherent benefits of traditional cantilever design—namely, the unparalleled ability to store long, cumbersome items like steel piping, plastic conduits, round steel, timber, and aluminum extrusions—while introducing a new dimension of accessibility. The core innovation lies in its manual crank-out mechanism. By simply turning a crank, the entire rack level, complete with its cantilever arms, smoothly extends into the aisle. This action brings stored materials directly to the operator, eliminating the need to reach into deep storage bays or maneuver heavy items in confined spaces.

Uncompromising Quality and Certification

Every Herochu Manual Double Side Crank-Out Cantilever Rack is a product of rigorous engineering and manufacturing excellence. Our commitment to quality and safety is validated by international certifications, including CE, UE, and ISO 9001. These certifications guarantee that the rack system adheres to the highest standards of structural integrity, operational safety, and manufacturing consistency. You can invest with confidence, knowing your storage infrastructure is built to perform reliably under the most demanding industrial conditions.

Transformative Benefits for Your Operation

Integrating this system into your workshop or warehouse delivers immediate and measurable advantages across three critical areas:

1. Significant Warehouse Storage Space Savings: In today’s world, every square foot of floor space carries a cost. The intelligent design of this cantilever rack requires a remarkably small footprint. When not in use, the arms retract fully, dramatically reducing the system’s profile and freeing up valuable aisle space. This allows for denser storage configurations without compromising accessibility, effectively increasing your storage capacity within the same physical footprint.

2. Dramatically Improved Working Efficiency: Productivity soars when material handling becomes effortless. This system is designed for operation by a single worker. The smooth crank mechanism allows for quick and easy loading and unloading, drastically reducing the time and physical labor required per task. This streamlined process accelerates inventory turnover, simplifies order picking, and allows your workforce to accomplish more in less time, providing a rapid return on investment.

3. Enhanced Working Environment Safety: Safety is paramount. Traditional methods of retrieving long materials often involve awkward lifting, straining, and potential collisions with stationary racking. The roll-out design fundamentally improves safety by bringing materials to the worker in a controlled manner. This minimizes physical strain, reduces the risk of musculoskeletal injuries, and prevents accidents caused by items being dislodged from deep storage. It creates a safer, more organized, and more predictable working environment.

Customizable Specifications to Meet Exact Needs

We understand that no two storage challenges are identical. Therefore, the Herochu Roll-Out Cantilever Rack is fully customizable. The system can be configured as single-sided or double-sided and is typically designed with multiple roll-out levels, often including a top fixed level for additional storage. Both manual (crank) and electric operation can be customized based on your preference and frequency of use.

Below are standard configurations to illustrate the system’s capabilities. Please note that load-bearing capacity, length, number of layers, and individual layer height can all be tailored to your specific requirements.

• Model HC-G6053D: Capacity 3t per layer. 6m length. 4 roll-out levels + 1 top fixed level (Bilateral). Overall Dimensions: 6435x3340x1750mm.

• Model HC-G9055S: Capacity 5t per layer. 9m length. 4 roll-out levels + 1 top fixed level (Unilateral). Overall Dimensions: 9435x3340x1550mm.

• Model HC-G9055D: Capacity 5t per layer. 9m length. 4 roll-out levels + 1 top fixed level (Bilateral). Overall Dimensions: 9435x3340x1750mm.

• Model HC-G12055D: Capacity 5t per layer. 12m length. 4 roll-out levels + 1 top fixed level (Bilateral). Overall Dimensions: 12435x3340x1750mm.

Invest in Superior Storage Intelligence

The Herochu Manual Double Side Crank-Out Heavy-Duty Cantilever Rack represents the future of industrial storage. It is an ideal solution for warehouses, lumber yards, metal fabrication shops, construction material suppliers, and any facility seeking to optimize space, enhance productivity, and prioritize worker safety.

Stop compromising with inefficient storage. Contact us today to discuss your project requirements. Our engineering team will work with you to design and customize a roll-out cantilever rack storage system that perfectly fits your operational needs and space constraints, starting at $6,200.
