Manual Crank Rolling Sheet Metal Storage Shelving

Reclaim Your Workshop Floor: The Herochu Manual Crank System for Heavy-Duty Sheet Metal Storage

For fabricators, welders, and manufacturing engineers, steel plate is the lifeblood of your operation. But storing it? That’s often the bottleneck. Loose plates leaning against walls are a safety nightmare. Forklifting individual sheets from a static rack is inefficient and risks damage to your most valuable raw materials. The space, the time, the sheer physical effort—it adds up, cutting into your productivity and profitability.

Herochu engineers a different reality. We introduce our Manual Crank Rolling Sheet Metal Storage Shelving—not just a shelf, but a dynamic, high-density storage ecosystem designed around the principle of effortless accessibility. This is where brute strength meets intelligent design, transforming your cumbersome plate inventory into a streamlined, manageable asset.

The Core Principle: Dynamic Access, Unshakable Stability

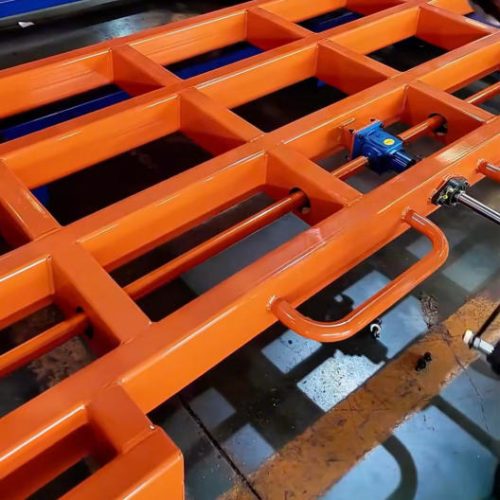

Forget the back-straining, two-person chore of retrieving a sheet. The Herochu system is built on a simple, yet revolutionary, manual crank mechanism. A single operator can, with minimal effort, rotate the crank to bring the entire shelf structure, with tons of material, smoothly gliding toward them on integrated rails.

Imagine this: Instead of you navigating a narrow aisle to wrestle a sheet out, the entire column of steel plates comes to you. This “goods-to-person” principle means you maintain a clear, safe picking area. No more awkward angles, no more risking a dropped plate. Each sheet is presented clearly and securely, ready for precise selection with your overhead crane or forklift. This isn’t just storage; it’s a workflow revolution that prioritizes operator safety and ergonomic efficiency.

Engineered for the Load: Uncompromising Strength in Every Detail

A smooth crank is worthless if the structure can’t handle the weight. Herochu shelving is built from the ground up for industrial punishment. We start with high-tensile, cold-rolled steel, fabricated into a rigid, box-frame construction. The load-bearing columns and cross-members are engineered to resist deflection under maximum capacity, ensuring your plates remain perfectly flat and undistorted.

The heart of the system is the 5+1 layer configuration standard across our core models. This design provides five full-capacity storage layers, plus a reinforced top frame, maximizing your vertical cube without compromising stability. Each layer is supported by robust, adjustable beams, allowing you to fine-tune the compartment height based on the thickness of your stored materials.

Our Certifications Are Your Guarantee: The Herochu system is CE, UKCA, and ISO 9001 certified. This isn’t just paperwork. It’s our binding promise that every weld, every gear in the crank mechanism, and every square inch of steel has been designed, tested, and quality-assured to meet the most rigorous international standards for safety and performance.

A Model for Every Mission: Our Core Configuration Breakdown

We offer a range of standard models to suit common workshop and warehouse dimensions. Each is a starting point, a testament to our versatile design.

• Model HC-B3015-63: The Workshop Workhorse
  Ideal for medium-volume fabricators or facilities with diverse material stocks. With a 3-ton per layer capacity and a plate size of 3000x1500mm, this model is the perfect balance of capacity and footprint. Its overall dimensions (3505x2280x2000mm) allow it to fit seamlessly into most existing layouts, bringing high-density storage to even smaller operations.

• Model HC-B4015-63: The Capacity King
  When your loads get heavier, this model steps up. It boosts the per-layer capacity to a formidable 5 tons while accommodating longer 4000x1500mm sheets. With an overall footprint of 4505x2280x2000mm, it’s the go-to solution for warehouses that need to store bulkier, denser metal plates without sacrificing an entire aisle for access.

• Model HC-B4020-65: The Oversized Panel Specialist
  Designed for the construction, automotive, and shipbuilding industries, this unit is all about surface area. It handles large-format 4000x2000mm sheets at a full 5 tons per layer. The increased height (4505x2280x2500mm) ensures these oversized materials are stored securely and accessed just as easily as smaller sheets.

• Model HC-B6020-66: The High-Volume Titan
  This is our largest standard model, engineered for facilities that work with extra-long panels. It masters the 6000x2000mm sheet size, maintaining the 5-ton per layer strength. With an overall length of 6505x2280x2500mm, it’s a statement piece for high-volume warehouses, ensuring that even the most oversized materials are stored with precision and unparalleled accessibility.

Beyond the Standard: Your Storage, Your Way

While our core models cover widespread needs, we recognize that no two workshops are identical. The true power of the Herochu system lies in its profound customizability. Starting at $3,660, you’re not just buying a shelf; you’re investing in a tailored storage solution.

• Load Capacity: Need to store denser alloys? We can engineer the structure to exceed standard load ratings.

• Length, Width & Layers: Your plates are a unique size? We’ll design the shelving to match. Whether you need a non-standard length or want to increase the number of layers for thinner materials, the configuration adapts to you.

• Layer Height: The available height of each partition layer is easily adjustable, allowing you to create a mix of tall and short compartments within the same unit for storing plates, tooling, or other items side-by-side.

• Manual or Electric: While the manual crank is exceptionally efficient, for ultra-frequent access or heavier configurations, we offer a seamless upgrade to a smooth, quiet electric drive system.

• Finish and Color: Even the aesthetic is yours to command. Choose from a range of powder-coat finishes in standard industrial colors or specify a custom RAL code to match your company’s branding or workshop color scheme.

The Herochu Difference: Precision in Every Specification

Our commitment to clarity means you know exactly what you’re getting. Key features consistent across our systems include:

• Integrated Pull-Out Design: The entire shelving unit moves as one solid, integrated block on its rail system, ensuring perfect alignment and smooth operation every time.

• Optimized Ground Clearance: A 355mm ground clearance on the bottom layer facilitates easy cleaning and prevents debris accumulation, while also allowing for potential integration with floor-based systems.

• Depth Pad Security: A 60mm pad height at the rear of each shelf acts as a positive stop, preventing sheets from sliding through and ensuring they are always positioned correctly.

• Decoded Model Numbers: Understand the product at a glance. For example, HC-B3015-63 breaks down as: HC (Constant Storage), B (Board Type), 30 (3000mm), 15 (1500mm), 6 (6 Layers total, 5+1), 3 (3-ton capacity).

Transform Your Workspace Today

Stop letting your raw materials manage you. With the Herochu Manual Crank Rolling Sheet Metal Storage System, you regain control over your space, your time, and your safety. You move from a reactive storage problem to a proactive storage solution.

Ready to engineer a smarter, safer, and more efficient workshop? Contact the Herochu team today for a personalized consultation and quote. Let’s discuss your specific plate sizes, weight requirements, and workflow to build the custom storage solution that will power your productivity for years to come.
