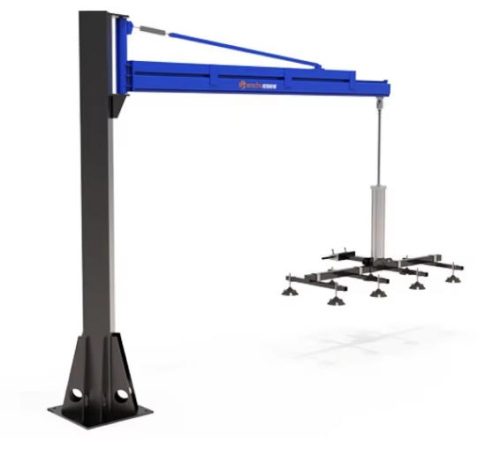

Lifter Material Handling Manipulators Column Mounted Pneumatic Manipulator

Lifter Material Handling Manipulators Column Mounted Pneumatic Manipulator

The Herochu Vacumaster is engineered for simplicity without compromising power. Its user-friendly controls (both remote and manual options) let operators master the system in minutes, while the horizontal load movement ensures precise positioning of workpieces—critical for tasks like loading/unloading punching machines, bending machines, or CNC laser cutting systems. The built-in walking mechanism uses special engineering plastic wheels with roller bearings, delivering low friction and smooth movement, even when handling maximum loads.

Lifter Material Handling Manipulators Column Mounted Pneumatic Manipulator

Pneumatic Manipulator

This machine has the characteristics of light structure, easy disassembly and assembly, and wide application. High efficiency, short handling cycle, and can be stopped at any position, making the handling process easy, fast and continuous. High safety performance, with air cut-off protection and anti-collision devices.

Specification

Model	HC-PR3015-300	HC-PR3015-500	HC-PR3015-1000	HC-PR4020-300	HC-PR4020-500
Thickness of feeding plate	8mm	12mm	20mm	8mm	12mm
Maximum feeding width	3000*1250mm			4000*1250mm
Minimum feeding width	1250*1250mm			1250*1250mm
Maximum plate weight	300kg	500kg	1000kg	300kg	500kg
Number of suction cups	8	8	10	8	8
Suction cup diameter	200	200	250	200	200
Power mode	Pneumatic/Electric

Herochu Vacumaster Column Mounted Pneumatic Manipulator: Industrial-Grade Lifter Material Handling Solution

When your workshop demands reliable, efficient, and damage-free material handling, the Herochu Vacumaster Column Mounted Pneumatic Manipulator stands as the ultimate solution. Engineered to streamline production processes, reduce downtime, and protect both your team and sensitive workpieces, this Lifter Material Handling Manipulator is designed for versatility—whether you’re moving steel sheets, glass panels, stone slabs, or aluminum plates. Backed by CE, UE, and ISO 9001 certifications, the Vacumaster meets global quality standards, ensuring consistent performance in even the most demanding industrial environments. Best of all, it’s fully customizable to match your workshop’s unique layout and needs, with pricing starting at just $3,698.

Built for Safety: Damage-Free Gripping & Reliable Protection

At the core of the Vacumaster’s design is a focus on safety—for your team and your materials. Unlike traditional lifting equipment that risks scratches, dents, or cracks, this Column Mounted Pneumatic Manipulator uses advanced vacuum lifting technology to achieve secure, damage-free gripping. The system features 8 suction cups (200mm diameter each) with multi-point adsorption vacuum surfaces, ensuring uniform lifting force across workpieces up to 3000*1500mm in size. A robust Safety Guarantee System—including a one-way valve, pressure holding mechanism, and real-time alarm system—prevents accidental drops, even in the event of unexpected pressure fluctuations.

For your team, the Vacumaster minimizes downtime caused by employee injury. Its intuitive design allows one-person operation, reducing the need for manual lifting and heavy physical exertion. This not only cuts down on workplace accidents but also boosts employee motivation by eliminating strenuous, repetitive tasks—turning material handling from a bottleneck into a seamless step in your workflow.

Easy to Use, High Efficiency: Designed for Frequent, Short-Distance Lifting

With a 500KG max capacity, this Lifter Material Handling Manipulator tackles both light and heavy-duty tasks, from small plastic sheets to large metal plates. The compact structure (343040002000mm dimensions) maximizes hook travel, making it ideal for workshops where space is at a premium. Plus, multiple energy supply modes—plug-in and pneumatic—ensure compatibility with most working environments, so you won’t need to overhaul your existing infrastructure to integrate the Vacumaster.

Versatile Applications Across Industries

The Herochu Vacumaster isn’t limited to a single workshop type—it’s built to serve a wide range of industries. Whether you’re operating a Building Material Shop moving stone or glass, a Manufacturing Plant handling metal sheets, a Food & Beverage Factory transporting plastic containers, or an Advertising Company lifting acrylic panels, this Column Mounted Pneumatic Manipulator adapts to your needs. It’s also suitable for Machinery Repair Shops, Construction works, Energy & Mining sites, and even home use for heavy-duty projects.

Compatible materials include glass, metal, wood, plastic, stone, aluminum, composite materials, and rubber—making it a one-stop solution for diverse lifting tasks. The flexible suction pad position (adjustable via a rectangular clamp) allows for custom sucker layouts, ensuring a perfect fit for workpieces of different sizes and shapes. For example, when moving large glass panels, the 8 suction cups distribute weight evenly to avoid breakage; when handling small aluminum sheets, the layout can be adjusted to maintain a secure grip without wasting vacuum power.

Technical Specifications: Power, Durability, and Reliability

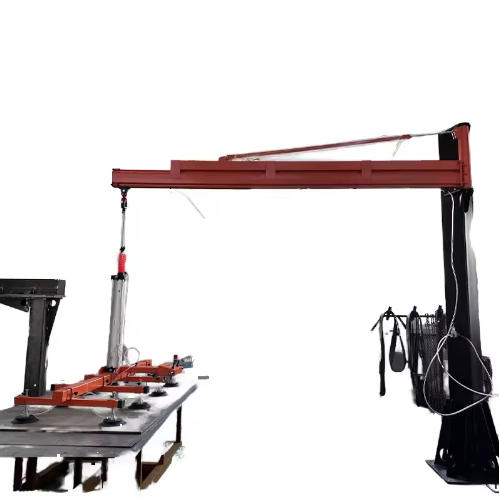

Crafted from high-quality steel and rubber, the Vacumaster balances durability with lightweight design (280KG weight), ensuring easy installation and long-term performance. It’s fixed to a concrete foundation via anchor bolts, with a slewing arm driven by a cycloidal gear reducer for smooth rotation. The electric hoist runs left and right on the cantilever’s I-beam, providing precise lifting and lowering—powered by an oil-free vacuum pump that eliminates oil contamination, a critical feature for industries like food & beverage or pharmaceuticals.

Key technical details include:

Load Capacity: 500KG (handles most light-to-heavy workpieces)

Max Plate Size: 3000*1500mm (accommodates large-format materials)

Suction Cup Diameter: 200mm (8 cups for secure adsorption)

Power Source: Pneumatic (with plug-in options for flexibility)

Release Mechanism: Release valve and pull lever (easy, controlled unloading)

Controls: Remote Control and Manual Control (adapts to operator preference)

Weight: 280KG (sturdy yet easy to install)

Material: Steel + Rubber (resists wear and corrosion)

This isn’t just a lifting tool—it’s a new generation of light lifting equipment built for modern production. Its high-reliability chain electric hoist excels in short-distance, frequent, and intensive lifting operations, delivering efficiency, energy savings, and labor reduction.

12-Month Guarantee & All-Round Support

Herochu stands behind the quality of the Vacumaster with a 12-month guarantee, covering parts and labor for peace of mind. Our all-round services include installation guidance, operator training, and responsive maintenance support—ensuring your Column Mounted Pneumatic Manipulator remains in peak condition for years. Whether you need help customizing the system to fit your workshop layout or troubleshooting an issue, our team is dedicated to keeping your operations running smoothly.

Why Choose the Herochu Vacumaster?

In a market flooded with generic material handling equipment, the Vacumaster stands out for its:

Certified Quality: CE, UE, and ISO 9001 certifications ensure compliance with global standards.

Customization: Tailored to your workshop’s unique needs, no matter the industry.

Safety First: Damage-free gripping and a robust safety system protect materials and employees.

Efficiency: One-person operation, minimal downtime, and versatile compatibility cut costs and boost productivity.

Affordability: Starting at $3,698, it delivers industrial-grade performance without the premium price tag.

Whether you’re looking to streamline your CNC laser cutting workflow, reduce glass breakage in your building material shop, or simplify heavy lifting in your manufacturing plant, the Herochu Vacumaster Column Mounted Pneumatic Manipulator is the Lifter Material Handling Manipulator that grows with your business. Invest in reliability—invest in Herochu.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
