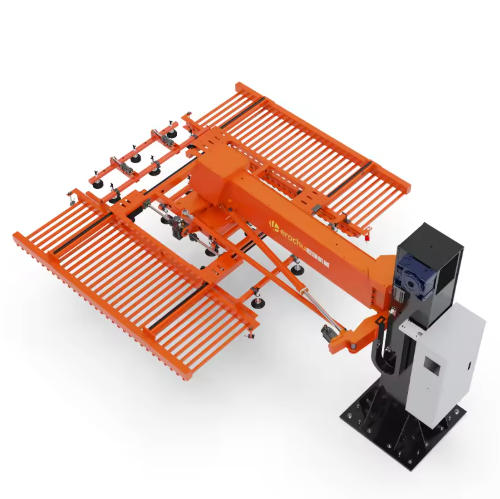

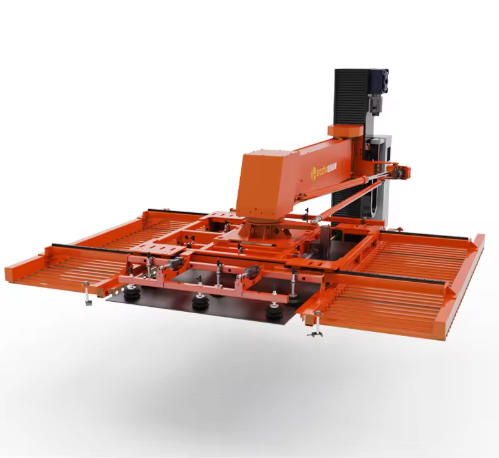

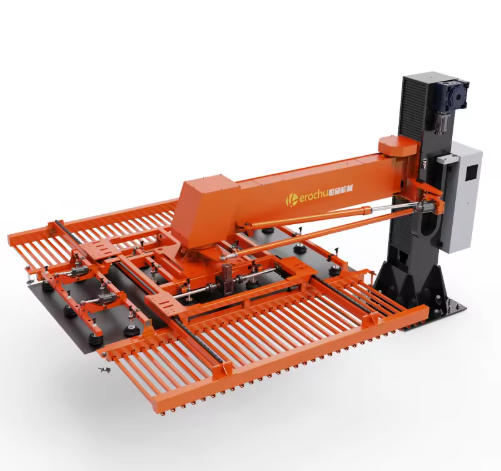

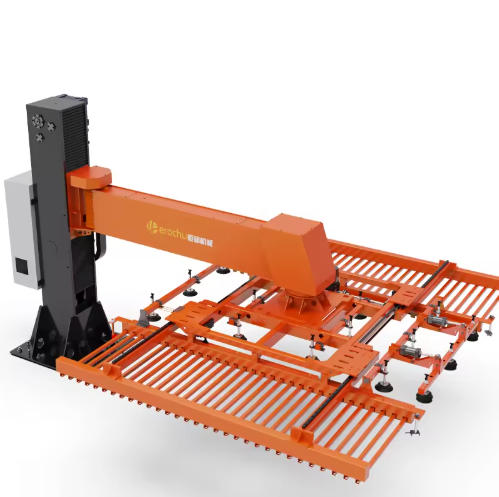

Laser Cutting machine Loading & Unloading Metal Sheet Suction Crane Vacuum Lifter for Sheet Metal

Laser Cutting machine Loading & Unloading Metal Sheet Suction Crane Vacuum Lifter for Sheet Metal

Herochu presents its premium Sheet Metal Suction Crane System, a state-of-the-art vacuum lifter solution designed to transform your laser cutting operations. Our CE, UE, and ISO 9001 certified robotic handling system delivers unmatched efficiency, safety, and precision in sheet metal loading and unloading. With custom configurations starting at $22,456, this advanced material handling solution adapts perfectly to your production requirements while optimizing workflow efficiency.

Laser Cutting machine Loading & Unloading Metal Sheet Suction Crane Vacuum Lifter for Sheet Metal

Key Advantages of Our Vacuum Lifting System

30-50% productivity boost through automated material handling
Elimination of manual lifting for improved worker safety
Precision vacuum control for damage-free material transfer
Modular design for easy adaptation to various sheet sizes
Energy-efficient operation with electric power system

Technical Specifications & Customization Options

Standard Model Configurations

Model	HC-R3015-500	HC-R3015-750	HC-R3015-1000	HC-R4020-500	HC-R4020-750
Max Sheet Size	3000×1500mm	3000×1500mm	3000×1500mm	4000×2000mm	4000×2000mm
Min Sheet Size	1250×1000mm	1250×1000mm	1250×1000mm	1250×1000mm	1250×1000mm
Max Weight	300kg	500kg	1000kg	300kg	500kg
Thickness Range	8mm	12mm	20mm	8mm	12mm
Suction Cups	15	15	18	15	15
Cup Diameter	150mm	200mm	250mm	150mm	200mm

Premium Features & Customization

Electric power system for clean, efficient operation
Adjustable vacuum pressure for different material types
Customizable suction cup configurations
Workshop-specific sizing options
Brand-matched color schemes

System Components & Intelligent Design

1. High-Performance Vacuum Lifting Module

Industrial-grade suction cups with wear-resistant materials
Precision vacuum control system maintains optimal grip
Automatic pressure adjustment for different sheet thicknesses

2. Robotic Manipulator Arm

6-axis freedom for maximum positioning flexibility
Programmable motion paths for optimized workflows
Collision detection sensors for equipment protection

3. Intelligent Control System

Touchscreen HMI with intuitive operation
Pre-programmed material profiles for quick changeovers
Real-time monitoring of vacuum pressure and system status

4. Safety & Protection Systems

Emergency stop buttons at multiple locations
Automatic braking system for power failure situations
Overload protection to prevent equipment damage
Visual and audible alarms for system alerts

Workflow Efficiency: How Our System Operates

1. Material Preparation

Sheets positioned in loading area
System automatically detects sheet dimensions

2. Vacuum Engagement

Suction cups deploy with perfect alignment
Vacuum pressure adjusts based on material type
Secure grip verification before lifting

3. Precision Transfer

Robotic arm follows optimized path to laser cutter
Smooth acceleration/deceleration prevents material shift
Perfect positioning on cutting bed

4. Unloading Process

Finished cuts automatically retrieved
Gentle placement in sorting area
Ready for next production cycle

Why Choose Herochu’s Vacuum Handling System?

Unmatched Productivity Gains

Continuous operation eliminates manual handling delays
Faster changeovers between different sheet sizes
Reduced material damage with controlled handling

Enhanced Workplace Safety

Eliminates dangerous manual lifting
Protected pinch points throughout system
Comprehensive emergency stop system

Smart Investment Value

Quick ROI through labor savings and efficiency gains
Low maintenance design with durable components
Future-ready for factory automation upgrades

Industry Applications

Our vacuum loading system excels in:

Metal fabrication shops
Automotive component production
Aerospace manufacturing
Industrial equipment production
Architectural metalwork

Implementation & Support

Needs Assessment – Our engineers evaluate your requirements
Custom Design – Tailored solution development
Factory Testing – Performance verification
Installation & Training – On-site setup and operator instruction
Ongoing Support – 24/7 technical assistance

Minimum Order Quantity: 1 system
Lead Time: 6-8 weeks for custom configurations
Warranty: 2 years comprehensive coverage

Upgrade Your Material Handling Today

Contact Herochu now for a free consultation and discover how our Vacuum Loading System can revolutionize your laser cutting operations. Our automation specialists are ready to design your perfect material handling solution.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
