Laser Cutting Loading With Servo Swing Steel Plate Suction Crane With Rocker Arm Socket Motor Core Compound Handling Manipulator

Revolutionizing Industrial Material Handling with Precision Automation

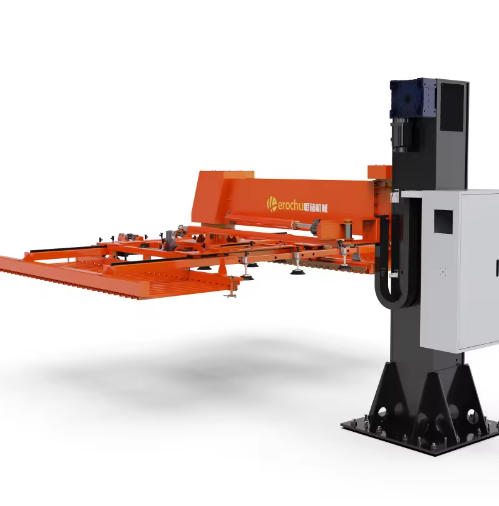

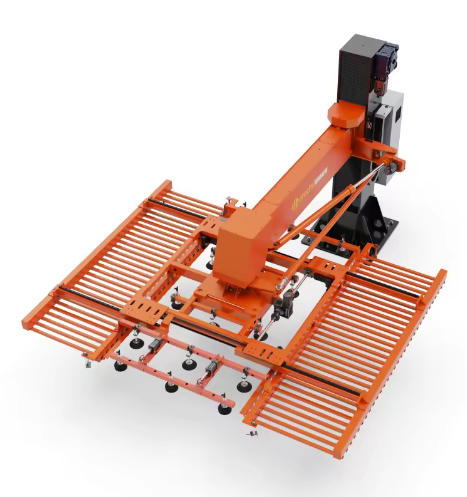

Herochu presents its Servo Swing Steel Plate Suction Crane with Rocker Arm Socket Motor Core Compound Handling Manipulator – an advanced fully-automated loading/unloading system designed specifically for laser cutting applications. This intelligent production solution combines servo-driven precision, high-capacity vacuum suction technology, and ergonomic design to deliver unmatched efficiency in sheet metal handling operations.

Why Choose Our Servo Swing Arm Manipulator?

1. Intelligent Automation

   • Programmable servo controls ensure millimeter-level positioning accuracy (±0.5mm repeatability)

   • Automatic plate recognition adjusts suction force based on material thickness (1-20mm)

2. Superior Load Capacity

   • 300kg to 1000kg capacity (configurable to your needs)

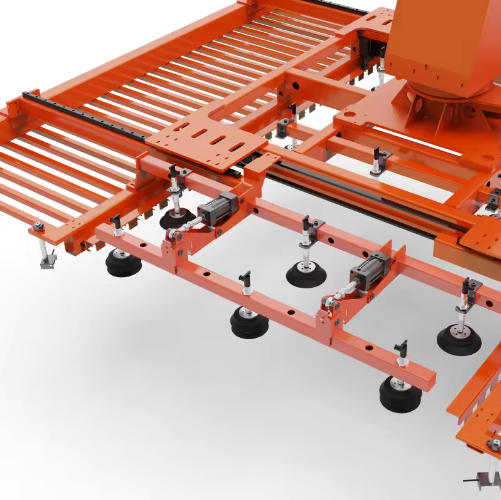

   • 8-18 high-performance suction cups (150mm-250mm diameter options)

3. Space-Optimized Design

   • Modular assembly structure for easy installation/relocation

   • Compact footprint (3800×1700×1700mm) maximizes workshop space

4. Enhanced Safety Features

   • Emergency stop protection with automatic braking

   • Real-time load monitoring prevents accidental drops

Technical Specifications

Key Applications

✔ Laser Cutting Machines – Automated loading/unloading of steel plates
✔ CNC Punch Presses – Precise material positioning
✔ Metal Fabrication – Handling of large format sheets (up to 4000×2000mm)
✔ Automotive Parts Manufacturing – High-precision component transfer

Customizable Solutions for Your Workshop

Our manipulator systems are fully customizable to match your specific requirements:

• Load capacity (300kg/500kg/750kg/1000kg options)

• Working envelope (3000×1500mm to 4000×2000mm)

• Suction configuration (8-18 cups with various diameters)

• Control interface (PLC, HMI, or integrated with existing systems)

Starting from just $20,300, we provide factory-direct pricing with OEM/ODM services available.

Why Herochu Stands Out

✅ Factory Direct Savings – Eliminate middleman markups
✅ 1-Year Comprehensive Warranty – Guaranteed performance
✅ CE/ISO/EU Certified – Meets strict international standards
✅ Energy Efficient – 600W servo motor reduces power consumption

Experience the Future of Material Handling

Upgrade your production line with Herochu’s intelligent loading system that delivers:

• 30-50% faster material transfer compared to manual handling

• 60% reduction in workplace injuries

• Precision alignment for improved cutting quality

• 24/7 reliable operation with minimal maintenance

📞 Contact us today for a custom quotation!
🔹 Brand: Herochu
🔹 Product: Servo Swing Arm Suction Crane
🔹 MOQ: 1 Set
🔹 Lead Time: 15-30 Days
🔹 Price: From $20,300 (custom solutions available)

Transform your metal fabrication process with Herochu’s advanced automation technology – where precision meets productivity!

Note: All specifications subject to customization based on application requirements. Images shown may include optional accessories.
