Laser Cutting Automated Load and Unload System

Optimize Material Flow & Maximize Uptime: The Herochu Automated Laser Load/Unload System

In today’s high-stakes manufacturing environment, the flow of raw materials and finished parts is the lifeblood of productivity. For sheet metal fabrication, the laser cutting station is often the critical first operation, and its efficiency dictates the rhythm of the entire shop floor. The development of high-power fiber laser sources has dramatically increased cutting speeds, creating a new bottleneck: material handling. A laser machine processing thin or medium-thickness sheets requires near-continuous loading and unloading, a task that is manually intensive, time-consuming, and prone to costly downtime.

Herochu addresses this fundamental challenge with our advanced Laser Cutting Automated Load and Unload System. This integrated solution is not merely an accessory but a transformative investment in factory organization, designed to automate storage, streamline workflow, and unlock the full productive capacity of your laser investment. By starting with the first station, you build a foundation for a smarter, more efficient, and scalable manufacturing operation.

The Imperative for Automation: From Manual Bottlenecks to Autonomous Flow

Well-equipped and organized companies may achieve an 85% utilization rate of their laser machine’s cutting capacity. The remaining 15% is often lost to the logistical challenges of material movement. Supplying laser machines manually gives rise to numerous issues: managing diverse material grades and thicknesses, moving heavy sheets from storage, organizing offcuts, and recording inventory changes. Each step—operating a forklift, extracting a pallet, separating sheets, transporting them, and loading them—consumes valuable time and introduces potential for error, damage, and safety concerns.

The Herochu system eliminates these inefficiencies. By automating the entire material handling process, it ensures that raw material is always available and that cut parts are systematically stored, directly addressing the poor upstream organization that often plagues this first production station.

A Data-Driven Approach to Sizing Your Automated Storage Solution

Investing in an automated storage system requires a strategic understanding of your current flow. Before implementation, we recommend an analysis based on key data points to ensure your Herochu system is perfectly tailored to your needs:

• Material References: Identify the number of different material grades, thicknesses, and sizes, and pinpoint those that represent 80% of your production volume.

• Process Mapping: List every step currently required to move a sheet from storage to the machine, including forklift operation, extraction, separation, transport, and data recording.

• Pain Point Identification: Observe difficulties like separating thin sheets, handling generated scraps, locating specific materials, and any safety issues during transport.

• Time Measurement: Calculate the average time to extract and load a single sheet. This quantifies the daily hours spent solely on supply tasks and helps justify the automation investment.

• Downtime Tracking: Estimate the specific downtime of your laser machine directly attributable to waiting for raw material.

This data confirms the return on investment and provides a clear vision for sizing a scalable Herochu solution that grows with your business.

The Herochu Solution: Intelligent, Robust, and Seamlessly Integrated

The Herochu Automated Load and Unload System is engineered for relentless performance and reliability, backed by CE, UE, and ISO 9001 certification.

How It Works:

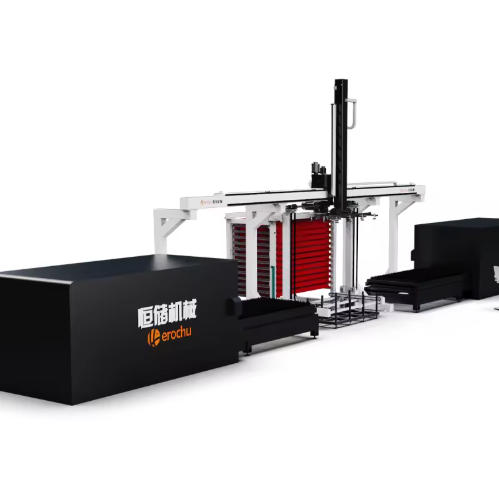

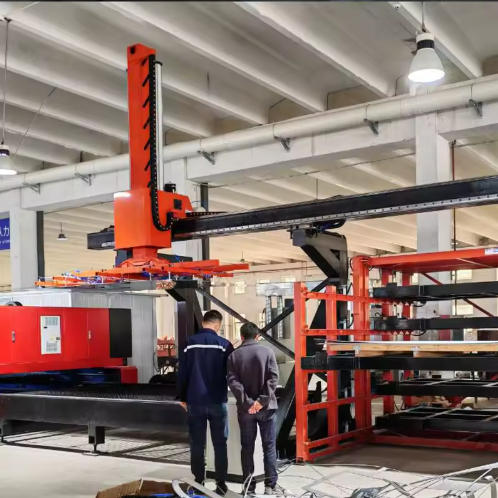

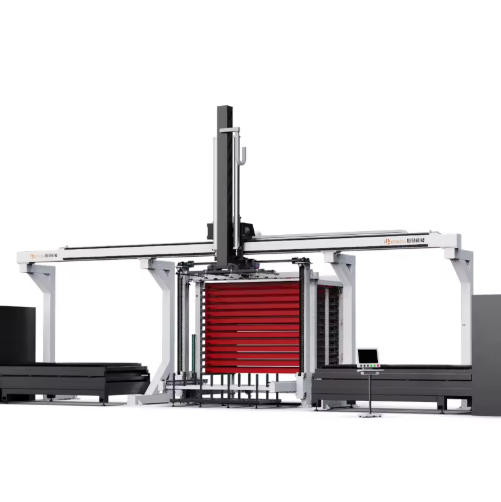

The system operates on a continuous, intelligent cycle. While the laser cutting head is processing a sheet on one pallet, the automation is already in motion. A robust comb-style unloader removes the previously cut sheet from the alternate pallet and transfers it to a processing station. Simultaneously, a high-precision suction cup gantry retrieves a new raw sheet from the integrated storage tower and loads it onto the now-empty pallet. This synchronized process ensures your laser beam is always active, enabling true lights-out manufacturing.

Key Specifications & Features:

• Comprehensive Model Range: Available in standard sizes (3015, 4015, 4020, 6015, 6020, 6025mm) to fit most laser cutting platforms.

• High-Capacity Storage: Features an 8 to 13-floor storage tower, providing a substantial buffer of raw material to support extended unmanned production runs.

• Exceptional Load Capacity: Built for heavy-duty use with a load capacity of 3T or 5T per layer, handling sheet weights from 100kg to 5000kg.

• Precision Movement: Utilizes a linear guide rail and chain drive transmission for flawless positioning. Achieves a vertical lifting speed of 9m/min and an inlet/outlet speed of 12m/min for rapid throughput.

• Superior Construction: Fabricated from high-tensile steel with a 6MM wire diameter structure and 6INCH industrial wheels. The system is protected by a durable powder-coated finish.

• Output Flexibility: Cut parts can be stored as complete sheets for later sorting or can be pre-sorted and placed into the system on pallets for digital tracking and easy retrieval, simplifying downstream management.

Your Customized Gateway to Industry 4.0

We understand that no two workshops are identical. The Herochu system can be fully customized according to your specific workshop layout, laser machine model, and unique production workflow. Our engineering team will collaborate with you to design a perfect fit.

This investment in foundational automation starts from $8,900, offering a rapid ROI through dramatic gains in machine uptime, significant labor savings, and the elimination of costly production bottlenecks.

Brand: Herochu
Product Name: Laser Cutting Automated Load and Unload System
Model Number: 3015/4015/4020/6015/6020/6025
Application: Automatic loading and warehouse system for laser cutting
Certification: CE, UE, ISO 9001
MOQ: 1 Set

Ready to structure your flow and achieve 24/7 productivity? Contact Herochu today for a consultation and a tailored quotation for the automated storage system that will become the cornerstone of your efficient factory.
