Revolutionize Material Flow with Automated Bar Stock Storage for Bars, Tube & Profiles

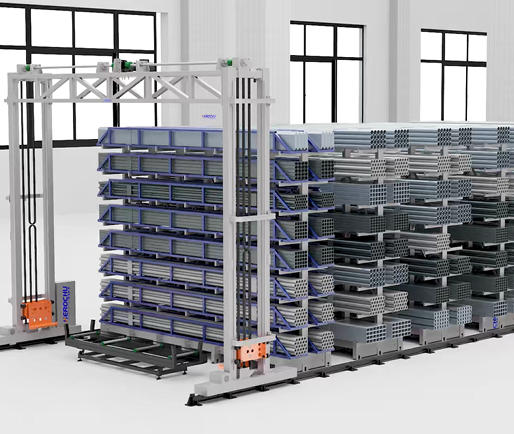

Ceiling-mounted smart section bar stereoscopic metal plate storage warehouse

Intelligent Fixed Profile Three-Dimensional Material Storage: The Ultimate Solution for High-Density Metal Stock Management

Efficiency in metal fabrication begins long before the first cut—it starts with how raw materials are organized, accessed, and tracked. Traditional storage methods, reliant on sprawling floor racks and manual handling, create hidden costs in lost time, mispicks, and wasted space. The Intelligent Fixed Profile Three-Dimensional Material Storage system addresses these challenges head-on by merging vertical engineering, smart inventory logic, and industrial automation into a single, cohesive platform.

Category Automated Storage Systems Tag Intelligent Fixed Profile Three-Dimensional Material Storage: The Ultimate Solution for High-Density Metal Stock Management

Intelligent Fixed Profile Three-Dimensional Material Storage: The Ultimate Solution for High-Density Metal Stock Management

Designed specifically for long-length stock—pipes, bars, tubes, and structural sections—this system reimagines warehouse geometry. Instead of spreading horizontally, it builds upward, creating a true three-dimensional matrix that maximizes cubic utilization without sacrificing accessibility. A typical installation stands 30–52 feet tall but occupies under 300 sq. ft. of floor space, offering a 5x reduction in footprint compared to conventional racking for equivalent capacity.

Each storage cell operates as an autonomous yet interconnected unit. Drawers are engineered for versatility: lengths from 10 to 40 feet accommodate everything from short blanks to full mill lengths; widths range from 1.3 to 6.5 feet to fit narrow rods or wide flange beams; and load capacities scale up to 11,000 lbs per drawer. Specialized configurations address material-specific needs—open bottoms for coolant drainage, side enclosures for round stock stability, and retention pins for strapped bundles.

The intelligence resides in the top-mounted control hub. Equipped with programmable logic controllers (PLCs) and intuitive HMIs, the system maintains a live inventory database. When integrated with a CNC saw or ERP platform, it responds dynamically to production demands. Request a specific alloy grade or lot number, and the system retrieves the exact drawer within seconds, presenting it at an operator-friendly height. This eliminates ergonomic risks associated with overhead lifting or ladder use—critical for OSHA compliance and worker safety.

Beyond retrieval speed, the system delivers operational transparency. It logs every transaction: who accessed what, when, and why. Heat-treated batches are flagged to prevent accidental mixing with untreated stock. Aerospace-grade materials are digitally quarantined until quality release. Low-stock alerts trigger automatic purchase orders, preventing line stoppages. With optional load cells, the system even detects anomalies—such as partial withdrawals or unexpected weight changes—and escalates them via email or dashboard notifications.

Integration capabilities are robust. The system supports industrial communication standards including Modbus TCP, Profinet, and EtherNet/IP, enabling direct dialogue with cutting, bending, and labeling equipment. ERP synchronization ensures that inventory levels in SAP or Epicor reflect real-time physical stock, closing the loop between planning and execution. Barcode scanners at access points enforce lot traceability from receipt to final part, satisfying AS9100 or ISO 9001 audit requirements.

Consider the impact on workflow continuity. In a double-tower configuration, while one drawer is being unloaded at the access bay, the shuttle simultaneously prepares the next requested drawer in the background. This parallel processing eliminates idle time during tool changes or material swaps—critical in high-mix, low-volume environments.

Documented case studies underscore its value. One structural steel fabricator reduced material search time by 87% and reclaimed 1,200 sq. ft. of floor space, which was repurposed for robotic welding cells. Another aerospace supplier eliminated mispicks entirely, achieving 100% material traceability across 150+ SKUs.

Manufactured by a direct OEM with 15+ years of experience, the system is built to last. Every unit undergoes static and dynamic load testing, complies with CE and ISO9001 standards, and ships with full documentation. Customization is included at no extra cost—simply provide your material specs, and engineers will design a solution optimized for your workflow.

Global support ensures smooth deployment. Technicians have installed and commissioned systems across six continents, providing on-site training and post-installation tuning. Whether you’re in Detroit, Doha, or Durban, local service is available.

In an era where agility equals survival, the Intelligent Fixed Profile Three-Dimensional Material Storage system transforms raw material handling from a cost center into a strategic asset—enabling faster throughput, higher accuracy, and scalable growth.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.

Customer visit

Herochu has always been adhering to the market-centric approach to meet customer requirements to the maximum extent, and the business philosophy of “creating brands with heart and gaining reputation with sincerity”. It provides customers with high-quality products and services with rigorous military quality, professionalism, and excellence, and has won unanimous praise in the Chinese aerospace, Chinese weapons, Chinese railways, automobile manufacturing, engineering machinery, non-ferrous metal titanium alloy and other industries.
