Industrial Robot Used to Assist Handling Palletizing: Automatic Column Robot for Metal Sheet Manipulator

The Fourth Industrial Revolution has brought automation to the forefront of manufacturing, with palletizing and material handling being primary targets for optimization. In industries dealing with metal sheets, the need for a reliable, high-speed, and intelligent handling solution is critical. The Industrial Robot Used to Assist Handling Palletizing has evolved beyond simple conveyors and manual forklifts. Today, the Automatic Column Robot for Metal Sheet Manipulator represents the pinnacle of this evolution, offering a seamless blend of vertical lifting, horizontal reach, and intelligent control. This article delves into the capabilities of this advanced system, focusing on its role as a dedicated Sheets handling manipulator for steel plates, its technical sophistication, and its profound impact on operational workflow.

Structural Integrity and Servo-Driven Precision

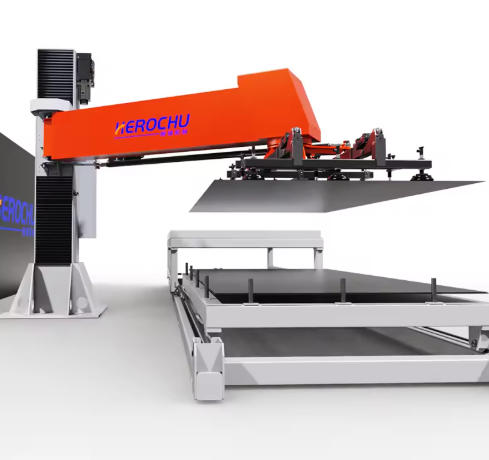

At the core of this automatic column robot is a structure designed for stability and speed. Unlike articulated arm robots that may require complex foundation work, the column design offers a robust, space-efficient footprint. The entire equipment is composed of the main body of the swinging-arm mechanical hand, which is mounted on a rigid column. This configuration allows for a wide range of motion while maintaining a compact operational area.

The machine’s performance is driven by its large-torque servo synchronous lifting mechanism. This is the component that provides the vertical motion, handling heavy steel plates with the delicacy required for stacking and unstacking. Paired with this is the servo swinging-arm positioning transmission, which controls the radial movement. Together, they create a system capable of high-speed cycles without sacrificing positional accuracy—a crucial requirement when palletizing materials that need to be perfectly aligned for the next stage of production.

Versatile Handling for Metal Sheets

Versatility is a key attribute of a true Industrial Robot Used to Assist Handling Palletizing. This model excels as a Automatic Column Robot for Metal Sheet Manipulator by accommodating a wide spectrum of materials. The suction system features multiple sets of heavy-load oil-resistant suction cups. These cups are designed to maintain a secure grip even on surfaces coated with protective oils, which are common in steel mills and fabrication shops.

The inclusion of an opening and closing valve on each suction cup is a game-changer for operational flexibility. When handling smaller sheets or those with pre-cut holes, operators can selectively deactivate cups to maintain optimal vacuum pressure on the active ones. This adaptability ensures that the machine functions effectively as a Sheets handling manipulator for steel plates, regardless of the specific dimensions or configuration of the material being moved.

Safety, Control, and the Omron Advantage

In automated palletizing, system reliability directly correlates with production uptime. This machine is powered by an original imported Omron numerical control system and electrical system. Omron’s reputation for industrial automation ensures that the controller is both robust and user-friendly, offering precise management of the servo drives and pneumatic components.

Safety is embedded in the machine’s operating logic. The SNS pneumatic system and power-off safety protection system work in tandem to provide a fail-safe environment. If the device is running and experiences a power or air cut-off, the material will not fall from the suction cup within 5 minutes. This safety feature is critical in a palletizing operation, where the robot may be operating in close proximity to other equipment or personnel. The emergency stop braking system provides an additional layer of protection, allowing for immediate halting of all motion if a safety hazard is detected.

User Experience and Maintenance Protocols

Simplifying complex machinery for the end-user is a primary design goal. The device offers two operating states: manual and automatic. Manual mode is essential for teaching the robot new palletizing patterns or for performing maintenance tasks. Automatic mode is for high-throughput production, where the robot executes pre-programmed cycles with unwavering consistency. The touchscreen interface, which communicates with the PLC via a network cable, is intuitive and displays status information clearly, with button function identifiers in Chinese and English.

Ease of maintenance is a hallmark of well-designed industrial equipment. To this end, all gas pipes required by the device use red (orange) and blue pipes, with blue for input and red for output. This color-coding system is complemented by labeled gas pipe connectors, allowing maintenance technicians to quickly diagnose and resolve pneumatic issues. Furthermore, the device is affixed with safety warning labels, maintenance labels, and operation instructions for key steps, ensuring that best practices are always front of mind.

Professional Installation and Performance Benefits

Acquiring advanced automation is only the first step; proper integration is what unlocks its full potential. The product installation is guided by experienced technical engineers throughout the process. These specialists oversee the installation and debugging, ensuring that the column robot is perfectly aligned, the suction system is calibrated for the specific materials, and the control software is optimized for the customer’s workflow.

The benefits of deploying this system are tangible. As a servo cantilever manipulator variant, it delivers fully automated and unmanned operation, which directly translates to increased production capacity and cost savings. By eliminating the variability of manual labor, it ensures consistent cycle times and precise placement. This improvement in production quality reduces the defective rate of products during subsequent processing steps. The machine’s ability to handle heavy loads (up to 1000kg) without fatigue means production lines can run longer shifts with consistent output, effectively shortening delivery cycles and increasing customer satisfaction.

Conclusion

The Industrial Robot Used to Assist Handling Palletizing in the form of this Automatic Column Robot for Metal Sheet Manipulator is a transformative asset for any metal fabrication or construction material supplier. It bridges the gap between heavy lifting and intelligent automation, offering a solution that is safe, efficient, and remarkably versatile. With its robust servo-driven mechanics, advanced safety features, and user-centric design, this Sheets handling manipulator for steel plates is not merely a piece of equipment; it is a strategic investment in productivity and safety for the modern industrial facility.
