Industrial Manipulators for Sheet Metal Handling Solution

Industrial Manipulators for Sheet Metal Handling Solution

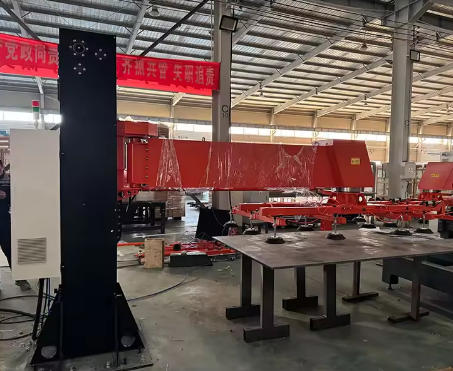

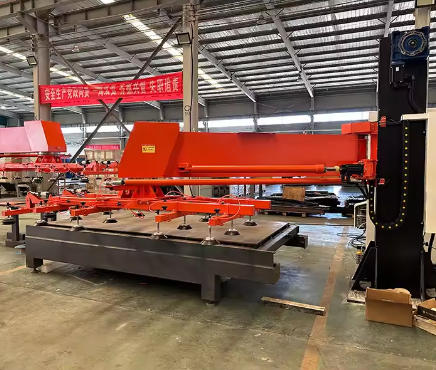

Herochu’s Industrial Manipulators for Sheet Metal Handling Solution is engineered as a next-gen intelligent tool, built to eliminate human error and streamline production. Classified as a “Compound Servo Swing Arm Handling Manipulator,” it operates fully automatically, with a pick-load function that delivers millimeter-accurate positioning—critical for tasks like feeding laser cutting machines, loading CNC machining centers, or stacking metal sheets.Powered by a 600W electric system, the manipulator offers impressive movement ranges: 1850mm vertical travel and 3000mm horizontal travel, ensuring it covers large workspaces without compromising stability. Its servo swing design enables smooth, 360° flexible movement, adapting to tight workshop layouts or long-distance transfers between production stations. Unlike manual handling or basic lifting tools, this fully automatic system runs consistently, reducing cycle times for frequent sheet metal tasks and freeing up workers to focus on higher-value operations.

Industrial Manipulators for Sheet Metal Handling Solution

In modern manufacturing, sheet metal handling often becomes a bottleneck—cumbersome manual labor slows production, inconsistent operations risk material damage, and safety hazards threaten workplace well-being. Herochu’s Industrial Manipulators for Sheet Metal Handling Solution solves these pain points head-on. As a fully automatic, CE, UE, and ISO 9001 certified solution, it redefines sheet metal handling with intelligent control, robust safety features, and flexible customization—all designed to cut labor costs, boost productivity, and ensure seamless factory operations. Whether you’re handling 300kg or 1000kg metal sheets, this manipulator turns once-challenging tasks into precise, efficient workflows.

Intelligent Production Solution: Fully Automatic for Unmatched Precision

Powered by a 600W electric system, the manipulator offers impressive movement ranges: 1850mm vertical travel and 3000mm horizontal travel, ensuring it covers large workspaces without compromising stability. Its servo swing design enables smooth, 360° flexible movement, adapting to tight workshop layouts or long-distance transfers between production stations. Unlike manual handling or basic lifting tools, this fully automatic system runs consistently, reducing cycle times for frequent sheet metal tasks and freeing up workers to focus on higher-value operations.

Safety & Efficiency: Dual Priorities for Industrial Reliability

Safety is non-negotiable in industrial settings—and Herochu’s Industrial Manipulators for Sheet Metal Handling Solution sets the bar high. It’s equipped with dual safety mechanisms: an emergency stop protection that halts operations instantly in case of anomalies, and automatic braking that secures the manipulator (and load) if power fluctuations or system issues occur. These features eliminate risks of load drops, collisions, or operator injuries, ensuring every handling task is as safe as it is efficient.

Efficiency is baked into every component. The manipulator’s ergonomic design simplifies loading operations—workers only need minimal oversight to monitor its automatic functions, making the handling process easy, coherent, and fast. With a load capacity ranging from 300kg to 1000kg and feeding plate thickness compatibility of 1-20mm, it handles diverse sheet metal sizes and weights without sacrificing speed. For factories struggling with labor shortages or high turnover, this manipulator becomes a reliable workhorse, maintaining consistent productivity even during staffing gaps.

Flexible & Convenient: Modular Design for Easy Integration

Herochu understands that workshop layouts and needs vary—and the Industrial Manipulators for Sheet Metal Handling Solution is built to adapt. Its modular assembly structure allows easy assembly and disassembly, reducing space waste when not in use and enabling quick reconfiguration if your workshop layout changes. This flexibility is a game-changer for growing factories: you can expand or adjust the manipulator’s placement without overhauling your entire production line.

The manipulator’s compact dimensions (3800x1700x1700mm) and 500kg weight balance power with portability. It fits into most industrial spaces without crowding work areas, and its rail-mounted design (optional for some configurations) enables seamless movement across large workshops. Whether you’re operating in a small-scale sheet metal shop or a large manufacturing plant, this modular solution integrates smoothly into your existing workflow.

Economical Factory Direct Sales: Wholesale Prices & OEM/ODM Services

Cost-effectiveness is a key advantage of Herochu’s Industrial Manipulators for Sheet Metal Handling Solution. As a factory-direct supplier, we skip middlemen to offer wholesale prices, ensuring you get premium quality at a competitive cost. Customization starts at just $20,300—a fraction of the long-term savings it delivers: reduced labor costs (one manipulator replaces multiple workers), minimized material waste (no scratches or drops from manual handling), and lower maintenance expenses (backed by a 1-year warranty).

We also provide OEM/ODM services to tailor the manipulator to your unique needs. Whether you require a specific number of suction cups (8-18, depending on load), custom color matching to your factory branding, or modified travel ranges to fit tight spaces, our engineering team works with you to design a solution that aligns with your workflow. This level of customization ensures the manipulator doesn’t just “work for you”—it’s built for you.

Standard Models: Ready-to-Use Solutions for Common Needs

For businesses seeking immediate deployment, Herochu offers five standard models of the Industrial Manipulators for Sheet Metal Handling Solution, each optimized for specific sheet metal sizes and weights. Below is a breakdown of key specifications:

Model	Feeding Plate Thickness	Max Feeding Width	Min Feeding Width	Max Plate Weight	Number of Suction Cups	Suction Cup Diameter
HC-R3015-500	8mm	3000×1500mm	1250×1000mm	300kg	15	150mm
HC-R3015-750	12mm	3000×1500mm	1250×1000mm	500kg	15	200mm
HC-R3015-1000	20mm	3000×1500mm	1250×1000mm	1000kg	18	250mm
HC-R4020-500	8mm	4000×2000mm	1250×1000mm	300kg	15	150mm
HC-R4020-750	12mm	4000×2000mm	1250×1000mm	500kg	15	200mm

All standard models use an electric power mode for consistent performance, with suction cups designed to create a strong, airtight seal—preventing sheet metal slippage even for heavy or thin materials (1mm thickness). Whether you’re handling small, 1250×1000mm sheets or large, 4000×2000mm panels, there’s a Herochu model ready to meet your needs.

Versatile Applications: Beyond Sheet Metal Handling

While designed as Industrial Manipulators for Sheet Metal Handling Solution, their versatility extends to other industries and materials. In machinery manufacturing, they handle metal components and assemblies with precision. In the construction sector, they lift and position large metal panels for prefabricated buildings. Even in the automotive industry, they assist with feeding metal sheets into stamping or welding machines.

Their ability to handle diverse materials—from steel and aluminum sheets to PVC panels—makes them a multi-purpose tool for factories with varied production needs. With a minimum order quantity (MOQ) of 1 set, even small businesses can invest in this solution to upgrade their operations.

Why Choose Herochu’s Industrial Manipulators for Sheet Metal Handling Solution?

Intelligent Automation: Fully automatic operation with servo swing technology for precise, consistent handling.

Certified Safety: Emergency stop, automatic braking, and CE/ISO 9001 certifications for risk-free use.

Flexible Customization: Modular design, OEM/ODM services, and customization starting at $20,300.

Cost-Effective: Factory-direct wholesale prices and 1-year warranty for long-term ROI.

Proven Versatility: Handles 300-1000kg loads, 1-20mm sheets, and fits diverse industrial workflows.

Invest in Your Factory’s Future—Start Handling Smarter Today

Herochu’s Industrial Manipulators for Sheet Metal Handling Solution isn’t just a piece of equipment—it’s an investment in your factory’s efficiency, safety, and growth. By replacing manual labor with intelligent automation, you reduce operational costs, minimize errors, and unlock higher productivity. Every model—whether standard or customized—is built to the highest quality standards, backed by our 1-year warranty and global support.

Don’t let outdated sheet metal handling hold your factory back. Contact Herochu today to discuss your needs and discover how our Industrial Manipulators for Sheet Metal Handling Solution can transform your workflows. With factory direct sales, wholesale prices, and tailored designs, we’re here to help you build a more efficient, safer, and profitable operation.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
