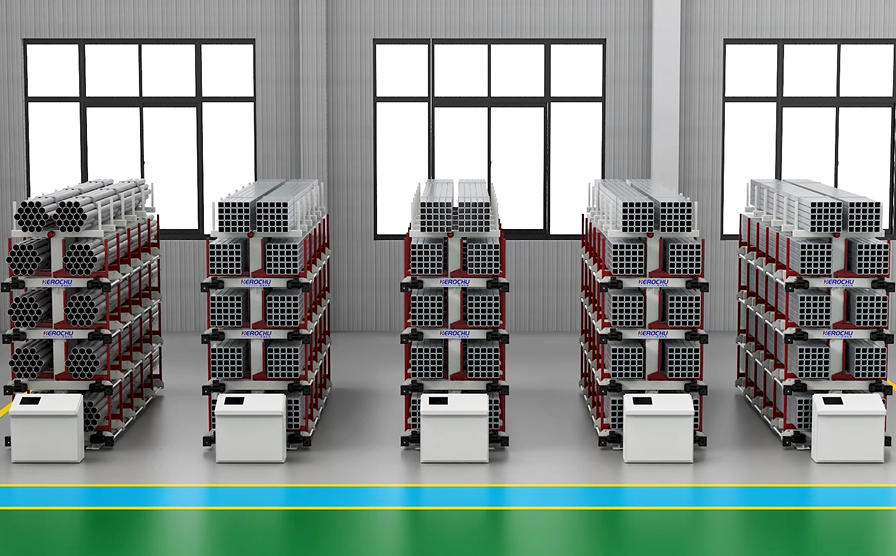

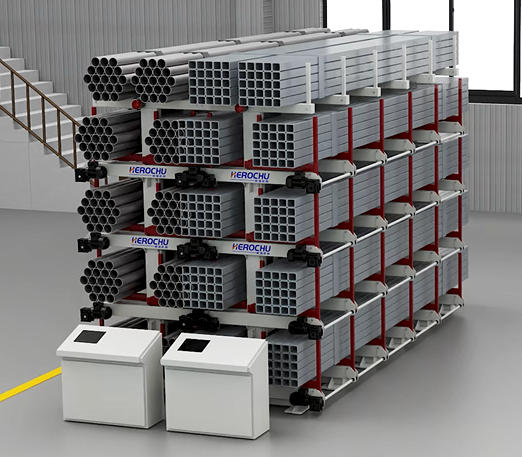

High Load Extendable Cantilever Rack for Profile Material

High Load Extendable Cantilever Rack for Profile Material

Engineered for Safety & Stability: The High Load Extendable Cantilever Rack for Profile Material

Storing long, heavy profile materials such as steel bars, aluminum extrusions, and structural beams requires a racking system that prioritizes unwavering stability above all else. The High Load Extendable Cantilever Rack for Profile Material is meticulously engineered to meet this critical need, offering a blend of immense strength and intelligent safety features that provide operators with complete peace of mind. This system goes beyond mere storage; it is a comprehensive safety solution designed to prevent accidents, protect inventory, and safeguard personnel. Every component, from the angled cantilever arms to the high-tensile base bolts, is calculated to enhance the rack’s resilience and operational security, making it the preferred choice for industries where load integrity is non-negotiable.

A key innovation in our design is the pre-set upward tilt of the cantilever arms. While under load, arms may naturally deflect slightly downward. Our arms are manufactured with a deliberate 2° to 4° upward angle. This proactive design effectively counteracts load-induced sagging, ensuring stored profiles and tubes remain securely in position and preventing them from rolling inward and scattering. Complementing this are the strategically placed retainer stops. Installed at the outer ends of each cantilever arm and on the base frame, these retainers create a physical barrier that stops goods from accidentally rolling off the sides or back of the rack. This dual-layer containment is crucial for pipe storage rack applications, where cylindrical items can easily become unstable, directly safeguarding operators during loading and unloading processes.

The foundation of any secure racking system is its connection to the ground and the integrity of its joints. Our Telescopic Cantilever Rack utilizes a premium-quality bolt fastening system that sets a new standard for stability. The base is anchored to the concrete floor using high-grade 8.8 expansion bolts (M12*110), ensuring a rock-solid grip that withstands dynamic loads and seismic shifts. The connection between the upright columns and the extended base is fortified with high-strength bolts—nine M16x120 bolts for light-duty configurations and four M18x290 bolts for heavy duty cantilever racks. These robust fasteners reinforce the entire structure’s core, eliminating any potential for wobbling or toppling. Coupled with the extended base that acts as a lever-arm stabilizer, this racking system delivers a level of practical, day-to-day safety that is simply unmatched by conventional storage solutions.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
