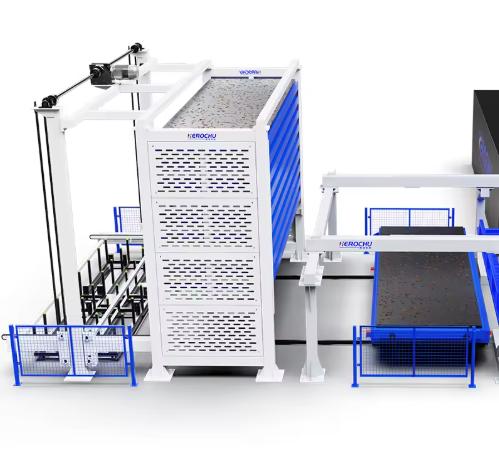

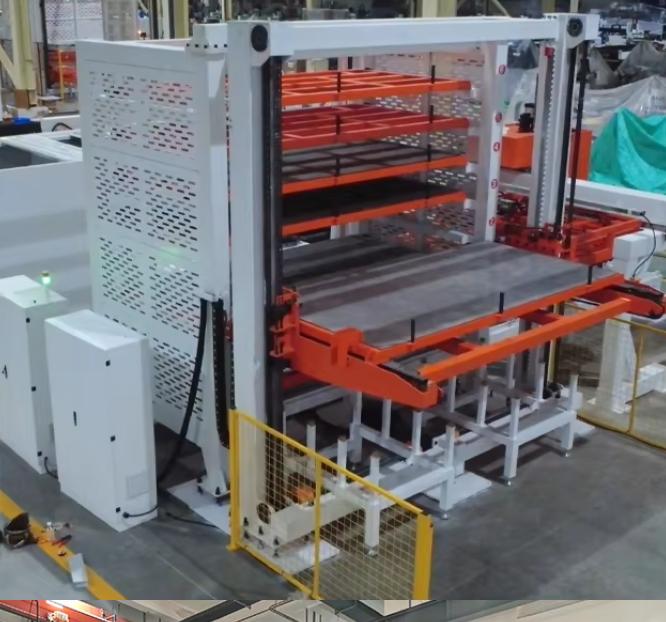

High-Density Vertical Sheet Metal Storage System with Robotic Handling

In the competitive world of metal fabrication, every square foot of floor space counts, and every second of production time matters. Traditional storage methods, characterized by sprawling horizontal racks and manual handling, are increasingly becoming liabilities rather than assets. They consume valuable floor space, hinder workflow, and introduce inefficiencies that erode profit margins. The High-Density Vertical Sheet Metal Storage System with Robotic Handling offers a transformative alternative, leveraging verticality and automation to maximize space utilization while minimizing operational costs.

Category Automated Storage Systems Tag High-Density Vertical Sheet Metal Storage System with Robotic Handling

High-Density Vertical Sheet Metal Storage System with Robotic Handling

The Vertical Advantage

The most immediate benefit of this system is its ability to exploit vertical space. By stacking storage layers up to 15 meters high, the High-Density Vertical Sheet Metal Storage System converts unused air space into high-capacity storage. With 8 to 13 configurable floors, each supporting loads of 3 to 5 tons (or up to 8,000 kg), the system provides immense storage capacity within a minimal footprint. This vertical approach allows facilities to store significantly more material without expanding their building, a crucial advantage in urban areas or industrial parks where land is scarce and expensive.

This density is not just about quantity; it is about organization. Each sheet is stored in a dedicated, indexed location, eliminating the chaos of stacked piles. This organized structure facilitates quick and accurate retrieval, ensuring that the right material is always available when needed. The system accommodates a wide variety of sheet sizes, including 3015, 4015, 4020, 6015, 6020, and 6025mm, as well as long pipes and rods, making it a versatile solution for diverse inventory profiles.

Robotic Handling: Precision and Speed

Central to the system’s efficiency is its robotic handling mechanism. This automated arm operates with remarkable precision and speed, navigating the vertical columns to retrieve and store sheets effortlessly. Driven by a robust chain transmission and linear guide rails, the robot achieves vertical speeds of 9m/min and horizontal speeds of 12m/min. This rapid movement ensures that material flow keeps pace with high-speed production lines, preventing delays and idle time.

The robotic handler is equipped with advanced sensing capabilities. Upon receiving a sheet, it automatically weighs and measures the material, verifying its specifications against the system database. This automatic verification step is critical for maintaining inventory accuracy and preventing the use of incorrect materials. If a mismatch is detected, the system flags the issue immediately, avoiding downstream errors in production.

Once verified, the robot places the sheet in its assigned slot with pinpoint accuracy. When a sheet is needed for production, the robot retrieves it and delivers it to the loading station at waist height, ready for the operator or the next machine in the line. This ergonomic delivery reduces physical strain on workers and speeds up the loading process.

Intelligent Management and Cost Savings

Beyond physical handling, the High-Density Vertical Sheet Metal Storage System offers profound cost savings through intelligent management. The integrated WMS provides real-time visibility into inventory, tracking every sheet from receipt to consumption. Features like batch traceability, expiration warnings, and remnant management help optimize material usage, reducing waste and lowering material costs.

By connecting to ERP systems, the storage tower becomes part of a larger intelligent ecosystem. Production schedules drive material retrieval, ensuring that inventory levels align with demand. This synchronization reduces the need for safety stock, freeing up working capital. Additionally, the system’s ability to track material usage patterns helps managers make informed purchasing decisions, avoiding overstocking and obsolescence.

Labor costs are also significantly reduced. The automation of storage and retrieval tasks minimizes the need for forklift drivers and warehouse staff. Workers can be redeployed to higher-value roles, such as quality control or machine operation, enhancing overall productivity. Furthermore, the reduction in manual handling lowers the risk of workplace injuries, leading to lower insurance premiums and fewer lost-time incidents.

Durability and Long-Term Value

Built for the long haul, the High-Density Vertical Sheet Metal Storage System is constructed from high-strength steel, ensuring durability and stability under heavy loads. Its robust design withstands the demands of continuous industrial use, providing a reliable solution for decades. The system’s modular nature allows for easy expansion or reconfiguration as business needs change, protecting the investment against future obsolescence.

Maintenance requirements are minimal, thanks to the high-quality components and intelligent monitoring systems that predict potential issues before they cause downtime. This reliability ensures consistent performance and maximizes the return on investment.

Conclusion

The High-Density Vertical Sheet Metal Storage System with Robotic Handling is a strategic imperative for modern manufacturers seeking to optimize space, reduce costs, and enhance efficiency. By transforming vertical space into a high-capacity, automated asset, it solves the critical challenges of traditional storage. As the industry moves towards leaner, smarter operations, this system stands out as a vital tool for achieving operational excellence. Investing in this technology is not just about storing metal; it is about securing a competitive edge in a rapidly evolving market.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
