High Density Sheet Metal Rack System for Heavy Duty Warehouse Storage

Designed specifically for Heavy Duty Warehouse Storage, this system moves beyond the limitations of standard pallet racking. It is engineered to handle the unique geometry of sheet metal—flat, heavy, and often cumbersome. By utilizing a vertical, drawer-based architecture, we provide a solution that increases storage density significantly while maintaining 100% selectivity of the stored goods.

Category Automation Sheet Metal Material Warehouse Tag High Density Sheet Metal Rack System for Heavy Duty Warehouse Storage

High Density Sheet Metal Rack System for Heavy Duty Warehouse Storage

Space is the most valuable currency in warehouse management. As manufacturing demands grow, the footprint of storage facilities often remains static. The challenge becomes: how do you store more material in the same amount of space without compromising accessibility or safety? The answer is a High Density Sheet Metal Rack System.

Maximizing Vertical Space

The core philosophy of our high-density system is vertical integration. Traditional methods of storing metal sheets involve stacking them flat on the floor or on low pallets. This “flat stacking” consumes massive amounts of floor space and makes it nearly impossible to access specific sheets without moving others.

Our Warehouse Storage Rack Material Storage Tower utilizes the vertical height of the building. With configurations allowing for 5, 6, 8, or even 10 layers of drawers, a single unit can store the equivalent of dozens of floor stacks.

Space Saving: By stacking drawers vertically, we reduce the aisle space required.
Organization: Each drawer acts as a dedicated bin for a specific type of material (e.g., 3mm Stainless Steel, 10mm Carbon Steel).
Density: The compact skeletal structure minimizes the steel footprint, allowing more weight to be stored in less volume.

This high-density approach is essential for facilities dealing with high inventory turnover. It transforms a chaotic storage yard into a streamlined, organized library of metal.

Engineered for Heavy Duty Environments

The term “Heavy Duty” is often thrown around loosely, but in the context of sheet metal storage, it has a specific engineering meaning. Our racks are built to handle Heavy Load Capacities ranging from 1,000 kg to 10,000 kg per layer.

The structural integrity is achieved through the use of Q235 Industrial Steel. This high-strength carbon steel provides the necessary rigidity to support tons of weight without bowing or bending. The connection points—where the drawers meet the uprights—are reinforced to handle the shear forces generated during the loading and unloading process.

Furthermore, the system is designed with a Skeletal Structure that provides robust stability. The uprights are anchored to the ground using expansion bolts, creating a fixed base that resists lateral movement. This is crucial for high-density storage, as the center of gravity can shift when multiple heavy drawers are extended simultaneously. To counter this, our design includes anti-sway bracing and heavy-duty foot protection.

Corrosion Protection and Durability

Warehouses are not always climate-controlled environments. Humidity, temperature fluctuations, and industrial pollutants can wreak havoc on unprotected steel. A major advantage of our rack system is its Corrosion Protected & Powder Coated finish.

The manufacturing process involves:

Surface Preparation: The steel is cleaned and treated to remove oils and mill scale.
Powder Coating: A dry powder is electrostatically applied and cured under heat. This creates a hard, durable finish that is tougher than conventional paint.
Rust Resistance: The coating acts as a barrier against moisture, ensuring the rack maintains its structural integrity and appearance for over a decade.

This durability makes the system ideal for storing not just steel, but also aluminum and copper, where preventing cross-contamination (rust transfer) is vital.

Operational Efficiency and Safety

High density should never come at the cost of safety. Our system incorporates several safety features designed to protect both the operators and the inventory.

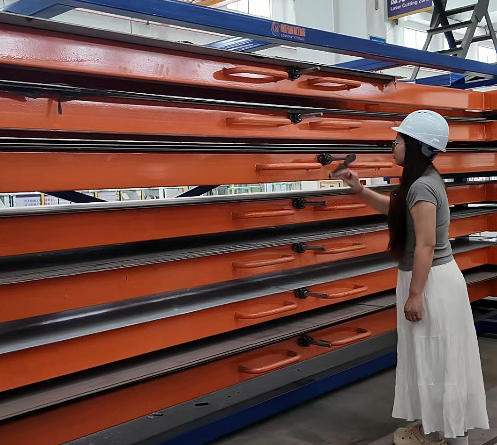

Smooth Operation: Despite the heavy loads, the Drawer Type Roll Out mechanism utilizes high-quality ball bearing rails. This ensures that a fully loaded drawer can be pulled out by a single operator with minimal effort.
Forklift Compatibility: The design allows for easy forklift loading. The open structure means forklifts can approach the rack to deposit heavy plates directly into the drawers without obstruction.
Material Protection: The drawers can be fitted with inclined plastic supports or continuous trays. These prevent the metal sheets from slipping and protect sensitive surfaces from scratches, which is a common issue with crane lifting.

Customization for Specific Needs

We recognize that “High Density” means different things to different users. Our Custom OEM Design service allows clients to tailor the system to their exact specifications.

Plate Size Accommodation: Whether you store standard 20001500mm sheets or extra-long 60002000mm plates, the rack depth and width can be customized.
Layer Configuration: Users can choose the number of layers (e.g., 5+1, 8+1) and the height of each layer to optimize for their specific inventory mix.
Extension Methods: Options include manual pulling for cost-effectiveness or electric extension for fully automated retrieval.

Conclusion

The High Density Sheet Metal Rack System is the definitive solution for modern Heavy Duty Warehouse Storage. It addresses the twin challenges of space optimization and heavy-load management with elegance and efficiency. By investing in this system, warehouses can significantly increase their storage capacity, streamline their inventory management, and ensure the safety of their workforce and materials.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
