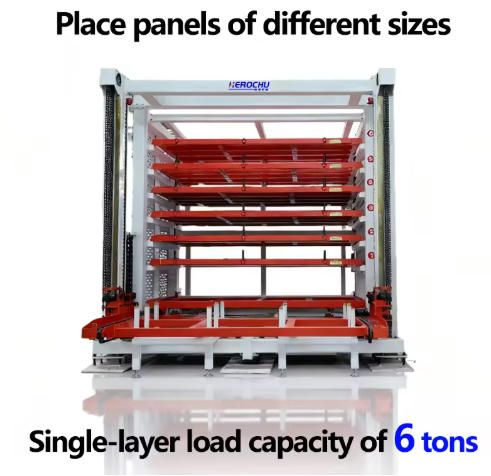

High-Capacity Sheet Metal Storage: Standard Model Plate Steel Racks for Reliable, Low-Cost Bulk Inventory

Not every metal fabrication facility requires the complexity or capital investment of fully automated vertical lift systems. For shops storing large volumes of identical sheet sizes—coil-fed operations with surplus cut-to-length plates, service centers holding monthly buffer stock, or heavy plate fabricators working with limited variety—standard model plate steel racks for sheet metal storage provide proven, cost-effective high-capacity sheet metal storage without motors, sensors, or software updates. Herochu’s standard racking line bridges the gap between improvised floor stacking and full automation, offering engineered durability at a fraction of the cost.

The Unseen Costs of Floor Stacking and Why Racks Win

Many shops default to stacking sheets directly on concrete floors, separated by wooden battens or plastic dunnage. This practice appears inexpensive initially but carries hidden expenses: sheets at the bottom of a stack suffer edge damage from overhang, surface scratches from shifting loads, and permanent bending from uneven weight distribution. Retrieving a sheet from the middle of a five-ton stack requires a forklift driver to carefully extract it while balancing the upper layers—a slow, dangerous maneuver that frequently damages both the retrieved sheet and those remaining.

Herochu’s standard model plate steel racks eliminate these problems through cantilevered arm designs that support each sheet individually. Constructed from hot-rolled structural steel with full-penetration welds, these racks hold each plate in a dedicated position, allowing any sheet to be accessed directly without disturbing others. The open-front cantilever configuration also enables side-loading from a forklift without requiring the truck to enter the rack structure, reducing collision risks.

Capacity Configurations for Real-World Inventories

Herochu offers three standard series of high-capacity sheet metal storage racks:

• Series HCS-3000: Designed for light-gauge sheets up to 3,000 mm long and 3,000 kg per arm. Ideal for HVAC shops, sign fabricators, and automotive stamping suppliers.

• Series HCS-5000: Mid-range capacity handling 5,000 kg per arm with 5,000 mm length. Common in general fabrication, shipyard subcontractors, and structural steel shops.

• Series HCS-8000: Heavy-duty units rated for 8,000 kg per arm and 8,000 mm length, used by pressure vessel manufacturers, mining equipment fabricators, and large service centers.

Each rack features adjustable arm spacing on 100 mm centers, allowing reconfiguration as inventory changes. Floor anchors secure the structure against seismic or impact loads, and optional back stops prevent sheets from sliding through. For shops with unusually wide plates, Herochu provides custom arm extensions up to 3,000 mm projection.

Integrating Standard Racks into a Productive Workflow

While automated tower storage system for sheet metal plates excels in high-mix, low-volume environments, standard model plate steel racks shine in high-volume, low-mix scenarios. A typical application: a plate processing center that receives weekly shipments of 12 mm, 16 mm, and 20 mm mild steel in 6,000 mm lengths. The shop dedicates one rack to each thickness, arranges racks in a U-shaped layout around a central forklift aisle, and color-codes arm positions for first-in-first-out (FIFO) rotation.

This configuration, when combined with a simple inventory log or barcode system, achieves retrieval times of 90–120 seconds per sheet—fast enough for many operations and significantly better than floor stacking. The capital cost per storage position is roughly one-tenth that of an automated vertical tower, making standard racks the rational choice for shops where throughput does not justify automation.

Durability Engineered for Decades of Service

Herochu builds every steel plate storage tower in its standard line with a 2.5:1 safety factor against rated capacity. Arm deflection under full load stays below L/200 (where L is arm length), preventing the “sag” that causes sheets to slide off over time. All exposed surfaces receive a three-step coating: sandblasting to SA 2.5, zinc-rich epoxy primer, and a polyurethane topcoat resistant to cutting fluids, oils, and welding spatter. For shops in corrosive environments—coastal areas or chemical plants—Herochu offers hot-dip galvanizing as an upgrade.

Field data from Herochu installations shows standard racks operating without structural failure for 25+ years, with only occasional replacement of plastic wear pads or rubber bumpers. This longevity drives a total cost of ownership that often undercuts cheaper imported racks, which may use thinner steel or inferior welds that fail within a decade.

When to Choose Standard Racks Over Vertical Lift Systems

The decision between standard model plate steel racks and an automated single-tower sheet metal storage system hinges on three factors:

1. Inventory mix: Fewer than 15 distinct sizes/thicknesses favors standard racks. More than 30 favors automation.

2. Retrieval frequency: Less than 50 retrievals per shift works well with racks. Over 100 retrievals per shift justifies the speed of automation.

3. Floor space value: If square footage is abundant and cheap, racks win. If space costs exceed $15 per square foot per year, automation’s space savings often pay for itself.

Herochu’s sales engineers provide free storage audits to help shops model these variables. For many customers, a hybrid solution emerges: standard racks for high-volume common plates, plus a single-tower system for low-volume, high-variety materials.

Installation and Maintenance Simplicity

Unlike automated systems requiring certified electricians and programmers, Herochu’s standard model plate steel racks for sheet metal storage install with basic tools and a laser level. Anchoring to a 4-inch reinforced concrete floor with 5/8-inch epoxy bolts takes one day for a six-rack array. Maintenance consists of annual torque checks on bolts, visual inspection for weld cracks, and replacing worn arm bumpers every three to five years.

For shops committed to lean manufacturing but not yet ready for full automation, Herochu’s standard racks deliver reliable high-capacity sheet metal storage with minimal overhead—proving that sometimes the most advanced solution is simply a well-built steel rack.
