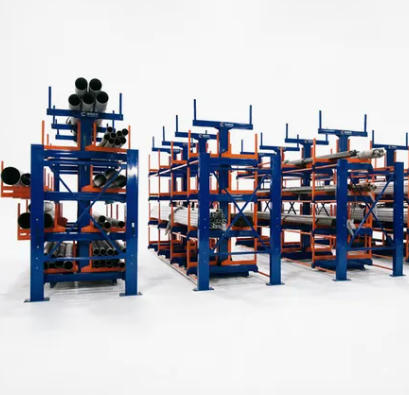

Heavy Load Telescopic Cantilever Rack for Pipe Warehouse | 6-Ton Capacity per Arm | CE Certified

In high-density pipe storage environments, conventional fixed cantilever racks create significant limitations in space utilization and operational flexibility. The Heavy Load Telescopic Cantilever Rack for Pipe Warehouse represents a fundamental engineering advancement for facilities managing steel pipes, aluminum profiles, bars, rods, and other long materials. Designed specifically for pipe warehouses processing 6-meter to 12-meter (20ft to 40ft) stock lengths, this system eliminates the inefficiencies of ground stacking and fixed-arm racking.

Engineering Specifications and Load Performance

The telescopic cantilever rack system delivers a single-layer load-bearing capacity ranging from 3 to 8 tons, with each individual cantilever arm supporting up to 6 tons. This performance rating is validated through rigorous load testing conducted before shipment, ensuring structural safety and reliability under real-world warehouse conditions. The cantilever extension rate reaches 100% fully extended, providing complete access to stored materials without requiring forklift repositioning.

Constructed from carbon steel, the rack structure incorporates 4 to 12 customizable layers depending on warehouse height and storage density requirements. The bottom floor height from ground measures 330 mm, facilitating easy cleaning and accommodating pallet jack or forklift operations when required. Movement modes include single-side assisted and double-side assisted configurations, allowing operators to tailor the system to specific aisle layouts and crane access patterns.

Operational Advantages for Pipe Warehouses

Traditional ground stacking of 6-meter steel pipes typically requires 30 to 60 minutes of forklift maneuvering to retrieve a single specific pipe. This process risks edge damage to materials and potential worker injuries. The telescopic cantilever rack eliminates these inefficiencies by transforming chaotic floor storage into a high-density vertical system. Each layer operates independently, allowing overhead crane access to any stored pipe without shuffling surrounding materials.

Warehouses implementing this system typically recover 50% of previously wasted floor space. The elimination of forklift aisles between stacked pipe bundles means that space previously dedicated to material movement can be repurposed for production lines, additional storage, or processing equipment. For facilities operating L-shaped or irregular layouts, single-sided configurations placed against walls revitalize dead corners. Double-sided configurations positioned in warehouse centers double storage capacity while enabling access from both sides.

Application Scope and Material Compatibility

This telescopic cantilever rack accommodates an extensive range of long or irregular-shaped materials beyond standard steel pipes:

• Steel pipes and tubes (square, round, rectangular)

• Aluminum profiles and extrusions

• Bars, rods, and shafts

• Channels, angles, and beams

• Sheets, plates, and rails

• Flat bars and structural sections

Industries benefiting from this system include steel pipe manufacturing, heavy machinery production, aluminum profile processing, shipbuilding, metal fabrication, and general industrial warehousing. The rack’s modular design supports material lengths from 6 meters to 12 meters without requiring structural modifications.

Quality Assurance and Certification

As a China-based leading retractable cantilever rack manufacturer, the production facility operates under ISO 9001 quality management standards. A dedicated quality control department monitors all manufacturing phases, from raw material inspection to final assembly. All export units carry CE certification, confirming compliance with European safety standards. The quality assurance protocol includes a team of over 40 technical engineers responsible for professional debugging and ongoing support.

Customization and Layout Options

Clients may specify custom colors including white, blue, or any RAL code, with no minimum order quantity restrictions. Layout configurations include:

• Single-Sided: Wall-mounted placement ideal for L-shaped warehouses and corner spaces

• Double-Sided: Center-aisle placement enabling access from both sides, maximizing storage density

• Back-to-Back Combination: Multi-group arrangements for large-scale uniform storage with modular expansion capability

Global Installation and Support

Technical personnel provide on-site installation and debugging services worldwide, with documented installations in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon. Virtual video factory tours and on-site visits to the 10,000-square-meter manufacturing facility in Jiyang Industrial Park, Jinan, Shandong, China are available for capability evaluation.
