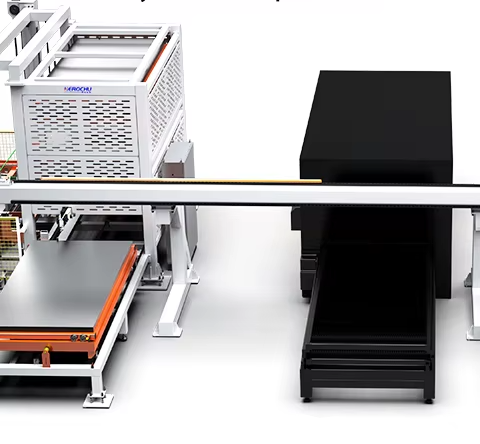

Heavy Duty Warehouse Storage Tower:Fully Automatic 8-Layer Rack with Robotic Integration

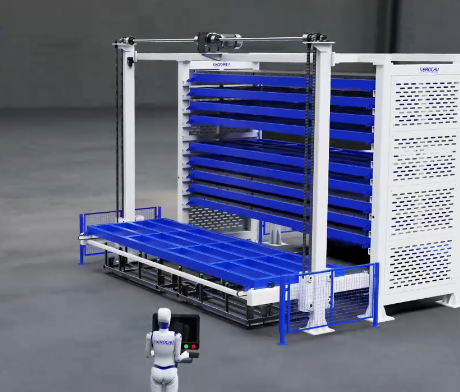

The evolution of warehouse logistics has reached a tipping point. Manual forklifts, handwritten logs, and static shelving are giving way to fully autonomous, vertically integrated storage ecosystems. Leading this shift is the Heavy Duty Warehouse Storage Tower—an 8-layer automated rack system that merges industrial-grade construction with AI-driven material flow control, enabling true 24/7 unmanned production.

Heavy Duty Warehouse Storage Tower:Fully Automatic 8-Layer Rack with Robotic Integration

The evolution of warehouse logistics has reached a tipping point. Manual forklifts, handwritten logs, and static shelving are giving way to fully autonomous, vertically integrated storage ecosystems. Leading this shift is the Heavy Duty Warehouse Storage Tower—an 8-layer automated rack system that merges industrial-grade construction with AI-driven material flow control, enabling true 24/7 unmanned production.

Beyond Storage: A Production Enabler

This isn’t just a rack. It’s a production node. Positioned between raw material intake and machining centers, the tower acts as a buffer, sorter, and sequencer—all in one. Each of its 8 levels supports up to 3000kg, accommodating everything from coiled steel to pre-cut blanks. But what truly sets it apart is its native compatibility with 6-axis robotic arms, vision systems, and PLC-controlled workflows.

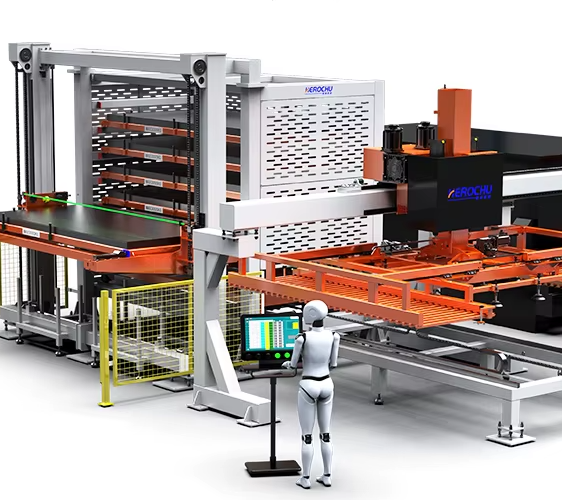

Imagine this: a production order triggers the system. The tower’s internal shuttle moves to Level 5, retrieves a stack of 3mm carbon steel sheets, and presents them to a waiting robot. The robot grips, transports, and loads the material into a press brake—all within 8 seconds. After forming, the part is returned to Level 2 for quality inspection or onward shipping. No human touches the material. No delays. No errors.

Core Engineering Features

  • Structure: Welded heavy-duty steel frame with seismic reinforcement
  • Layers: Fixed at 8 for optimal balance of speed and capacity (expandable in clusters)
  • Max Load: 3T per layer, 24T total system capacity
  • Vertical Speed: 9m/min via servo-driven lift mechanism
  • Control System: Siemens or Mitsubishi PLC with touchscreen HMI
  • Connectivity: Supports OPC UA, Modbus TCP, and direct MES integration
The tower’s compact footprint (as narrow as 3015mm wide) allows installation in tight production cells. Its closed-loop architecture prevents dust ingress and unauthorized access—critical in cleanroom or high-security environments.

How It Transforms Operational Metrics

Factories using this system report:
  • 70% reduction in material handling labor
  • Cycle time consistency within ±0.5%
  • Zero misloads due to barcode/RFID verification
  • 50% faster changeovers between product batches
Moreover, because every action is logged, managers gain unprecedented visibility into bottleneck points, machine utilization, and material consumption trends—data that fuels continuous improvement.

Safety and Compliance as Standard

With moving parts enclosed and emergency stops at every access point, the tower meets CE Machinery Directive 2006/42/EC requirements. Optional light curtains and area scanners further enhance personnel protection. All electrical components are IP54-rated for industrial dust and splash resistance.

Ideal for High-Mix, Low-Volume Manufacturing

Unlike bulk-storage AS/RS systems, this 8-layer tower thrives in environments with frequent SKU changes—such as custom fabrication shops or job shops serving diverse clients. Its selective access means you can store 8 different materials simultaneously and retrieve any one instantly.
Pair it with a Smart Sheet Metal Storage System, and you create a responsive, self-optimizing material pipeline that adapts to daily production demands without reconfiguration.

The Road to Lights-Out Manufacturing

As labor shortages intensify and quality expectations rise, automation is no longer a luxury. The Heavy Duty Warehouse Storage Tower provides a scalable entry point into full autonomy. Start with one tower feeding a single machine; later, network multiple towers across your plant floor via central control software.
In conclusion, this system embodies the convergence of strength, intelligence, and efficiency. For manufacturers ready to eliminate manual handling, reduce footprint, and unlock predictive production, it’s not just an upgrade—it’s a necessity.
