For manufacturing plants, metal fabricators, and large-scale warehouses, storing heavy, flat materials like sheet metal, wood panels, or composite plates has long been a balancing act: maximize space without sacrificing efficiency, ensure safety without slowing down workflows, and keep costs in check while scaling operations. That’s where Herochu’s Heavy Duty Warehouse Racking Systems come in. More than just shelving—these CE, UE, and ISO 9001-certified solutions leverage PLC control, automated handling, and vertical storage to solve your biggest storage pain points. Fully customizable to your workshop’s needs and starting at just $4,099, they’re the backbone of a streamlined, future-ready warehouse.

Category Automation Sheet Metal Material Warehouse Tag Heavy Duty Warehouse Racking Systems

Heavy Duty Warehouse Racking Systems

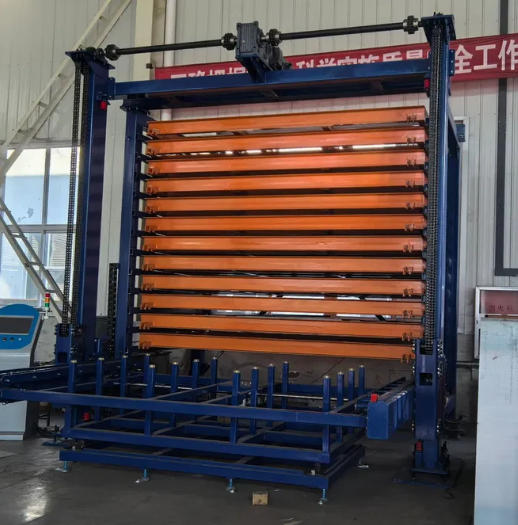

What Are Herochu Heavy Duty Warehouse Racking Systems?

Forget static, one-size-fits-all racks that force you to work around them. Herochu’s systems are engineered as dynamic extensions of your operations—designed to handle heavy loads (up to 5 tons per layer), integrate with your production machines, and turn unused vertical space into valuable storage. At their core, these are automated plate storage warehouses that use stacker cranes, motorized reducers, and linear guide rails to move, store, and retrieve materials with precision. Whether you’re storing 10-foot sheet metal for automotive parts or large wood panels for furniture manufacturing, our racks adapt to your materials—not the other way around.

Let’s break down the key components that make these systems stand out:

PLC-Controlled Automation: Every outbound and inbound process is managed by a programmable logic controller (PLC), ensuring consistent, error-free handling. No more manual data entry or misplaced inventory—your WMS (Warehouse Management System) syncs in real time, so you always know where every plate is.

Motorized Precision: Enhanced motor reducers control the lifting platform’s ascent/descent, while feed motor reducers pull out or feed in trays smoothly. This eliminates the jerky movements that damage materials and slow down workflows.

Heavy-Duty Steel Construction: Built with industrial-grade steel, each rack supports up to 500kg of total weight (with 3–5 tons per layer) and stands 5–15 meters tall—tall enough to maximize vertical space but sturdy enough to handle daily wear and tear.

Drawer-Style Structure with Linear Guide Rails: The multi-level, drawer-style design uses linear guide rails + chains for seamless tray movement. Loading a tray with a forklift or overhead hoist? The rails ensure it slides in perfectly, every time.

How Herochu’s Heavy Duty Warehouse Racking Systems Work (Step-by-Step)

The magic of our systems lies in their simplicity—even with all their advanced features. Here’s a look at how they fit into a typical industrial workflow (think a metal fabrication shop using sheet metal for laser cutting):

Loading: Safe, Efficient Material Intake

Your team uses a forklift or overhead hoist to place sheet metal onto the rack’s tray. Unlike manual racks, there’s no need to maneuver around tight spaces or risk dropping heavy materials—our trays are designed to align with your lifting equipment, making loading quick and safe. The steel construction of the tray ensures it holds even 5-ton loads without bending.

Storage: PLC-Controlled, Vertical Optimization

Once loaded, the PLC takes over. It sends a signal to the feed motor reducer, which pulls the tray into the rack. Simultaneously, the enhanced motor reducer adjusts the lifting platform to the correct level—no human intervention needed. The system stores the plate vertically, leveraging your warehouse’s height (up to 15 meters) to cut floor space usage by up to 80%. For example, a shop that previously stored 100 sheet metal plates on the floor can now store 500+ with our vertical design.

Retrieval: Faster Outbound for Production

When your laser cutter needs a sheet metal plate, the WMS sends a request to the PLC. The system identifies the plate’s location, lowers the lifting platform to the correct level, and uses the feed motor reducer to slide the tray out. Your team (or even an automated robot) can then move the plate directly to the laser cutter—no more wasting time searching for materials or transporting them across the warehouse.

Integration: Seamless Link to Production Machines

The real efficiency boost comes from direct integration. Our racks connect to laser cutters, CNC machines, and other production equipment, creating a “flow” from storage to production. When the laser cutter is low on material, it sends a signal to the WMS, which triggers the rack to retrieve the next plate automatically. This eliminates bottlenecks and keeps your production line running 24/7 if needed.

Key Features: Why Herochu’s Racks Outperform Traditional Storage

Traditional warehouse racks rely on manual labor, wasted space, and guesswork. Herochu’s Heavy Duty Warehouse Racking Systems replace that with features designed for industrial productivity:

1. Automated Handling: No More Manual Lifting

Manual handling of heavy plates is slow, costly, and dangerous. Our systems use stacker cranes, shuttles, and vertical lift modules to move materials—reducing the need for workers to lift or carry heavy loads. This cuts down on workplace injuries (a major cost for industrial businesses) and frees up your team to focus on skilled tasks, not material transport.

2. Vertical Storage: 80% Less Floor Space

Floor space is the most valuable asset in any warehouse. Our racks store plates vertically, turning unused height (5–15 meters) into storage space. A warehouse that once used 1,000 sq. ft. to store sheet metal can now store the same amount in just 200 sq. ft.—freeing up 800 sq. ft. for production, additional inventory, or new equipment. For urban warehouses where space is at a premium, this is a game-changer.

3. Integrated PLC & WMS Control: Real-Time Inventory Tracking

Lost or misplaced materials cost businesses thousands annually. Our racks sync with your WMS via PLC, providing real-time tracking of every plate: when it was stored, where it’s located, and when it was retrieved. The system also includes automatic weight detection and classification—so you can sort materials by size, type, or priority with zero manual effort. Need to know how many 10mm aluminum plates you have left? Check your WMS—no more counting inventory by hand.

4. Customization: Built for Your Workshop

No two warehouses are the same. Herochu’s racks are fully customizable to your needs:

Load Capacity: Choose between 3 tons or 5 tons per layer, depending on your materials (e.g., 5 tons for thick steel plates, 3 tons for wood panels).

Number of Layers: Customize the number of layers to match your warehouse height—whether you need 3 layers for a 5-meter space or 10 layers for a 15-meter high-bay.

Color: Pick orange, blue, or a custom color to match your workshop’s branding or safety standards (e.g., orange for high-visibility areas).

Size: Adjust tray dimensions to fit your materials—from small 4×8 ft. sheets to large 12×16 ft. composite plates.

5. Direct Production Integration: Streamline Workflows

The biggest efficiency gain comes from linking our racks to your production machines. For example, a furniture manufacturer using our racks can set up a “closed-loop” system: the rack stores wood panels, retrieves them when the CNC router needs them, and then stores the cut pieces for assembly. This eliminates the “middleman” (workers transporting materials) and keeps production moving at full speed.

Benefits That Bottom-Line Impact for Your Business

Herochu’s Heavy Duty Warehouse Racking Systems aren’t just about storage—they’re about improving your bottom line. Here’s how they deliver tangible results:

1. Increased Efficiency: 30% Faster Material Handling

Time spent waiting for materials is time your production line isn’t running. Our automated system cuts loading/unloading time by 30% compared to manual racks. Let’s do the math: if your team spends 3 hours daily handling materials, our racks save you 54 hours per month—that’s over 600 hours per year. For a business running two shifts, that’s enough time to complete 10+ extra production orders annually.

2. Improved Safety: Fewer Accidents, Lower Costs

Workplace injuries from heavy lifting cost U.S. businesses over $1 billion annually—and that’s not counting downtime or legal fees. Our racks eliminate manual lifting, reducing the risk of back injuries, dropped materials, and collisions. The CE, UE, and ISO 9001 certifications mean our systems meet the strictest global safety standards, so you can rest easy knowing your team is protected.

3. Space Optimization: Save Money on Warehouse Expansion

Expanding your warehouse costs

50-

150 per sq. ft.—a cost most businesses can avoid with our vertical storage. By cutting floor space usage by 80%, you can store more inventory without moving to a larger facility. For example, a metal fabricator that was planning a

100, 000 w a re h o u see x p an s i o n c anin s t e a d in v es t in o u rr a c k s (

4,099–$15,000) and use the savings for new production equipment.

4. Reduced Costs: Lower Labor & Inventory Expenses

Automation means fewer workers are needed for material handling—cutting labor costs by 20–30%. Additionally, real-time inventory tracking prevents overstocking (you only order what you need) and stockouts (you never run out of critical materials). Over a year, this can save a medium-sized warehouse $20,000+ in labor and inventory costs.

5. Enhanced Stock Management: No More Lost Materials

Misplaced or lost materials are a hidden cost for many businesses. Our PLC-controlled system tracks every plate, so you never have to write off “missing” inventory again. The WMS also generates reports on material usage, so you can identify trends (e.g., which plates are used most often) and optimize your ordering process.

Technical Specifications: Choose the Right Rack for Your Needs

Herochu offers both standard and fully customizable Heavy Duty Warehouse Racking Systems. Here’s a breakdown of the basic specs to help you start:

Category	Details
Usage	Tool Rack, Industrial Storage, Warehouse Plate Storage (sheet metal, wood, composites)
Material	Industrial-Grade Steel
Structure	Drawer-Style, Multi-Level Racking
Mobility	Adjustable (Linear Guide Rail + Chain for Tray Movement)
Height	5–15 meters (Vertical Storage Optimization)
Weight Capacity	Total: 500kg; Per Layer: 3 tons or 5 tons (Customizable)
Number of Layers	Fully Customizable (Based on Warehouse Height)
Color	Orange, Blue, or Custom Color (Per Your Request)
Control System	PLC-Controlled (Integrates with WMS)
Motor Components	Enhanced Motor Reducer (Lifting Platform), Feed Motor Reducer (Tray Movement)
Loading Equipment	Compatible with Forklifts or Overhead Hoists
Packaging	Standard Export Packaging (Protects During Shipping)
Certifications	CE, UE, ISO 9001
Starting Price	$4,099 (Standard Models); Customizable Models Priced Based on Requirements

Customization Options to Fit Your Workshop

If our standard specs don’t match your needs, we’ll build a rack that does. Common customizations include:

Tray Size: Adjust width/length to fit oversized materials (e.g., 12×20 ft. composite plates).

Load Capacity: Upgrade to 7 tons per layer for extra-heavy materials (e.g., thick steel for construction).

Height: Extend to 20 meters for high-bay warehouses.

Integration: Add sensors or robotic arms for fully automated loading/unloading.

Color: Match your brand colors or safety standards (e.g., yellow for fire safety zones).

Why Herochu? Your Partner in Industrial Storage

Choosing a warehouse racking system is about more than buying equipment—it’s about partnering with a company that understands your industry. Here’s why businesses worldwide choose Herochu:

1. Experience in Industrial Solutions

We’ve been designing heavy-duty storage systems for 10+ years, working with metal fabricators, automotive suppliers, furniture manufacturers, and construction firms. We don’t just sell racks—we solve your unique storage challenges.

2. End-to-End Support

From design to installation to maintenance, we’re with you every step of the way:

Design: Our team will visit your workshop (or review photos/blueprints) to design a rack that fits your space and materials.

Installation: Our certified installers will set up the system with minimal disruption to your operations—we work around your shifts to avoid downtime.

Training: We’ll train your team on how to use the PLC, WMS, and rack controls—so you can start using the system on day one.

Maintenance: We offer annual maintenance checks to keep your rack running smoothly. If parts need replacement, we ship them quickly (no long wait times).

3. Transparent Pricing

Starting at $4,099, our pricing is clear—no hidden fees for customization or installation. We’ll provide a detailed quote upfront, so you know exactly what you’re paying for.

Ready to Transform Your Warehouse?

If you’re tired of:

Wasting floor space on manual racks.

Losing time to slow, error-prone material handling.

Worrying about workplace injuries or lost inventory.

Then Herochu’s Heavy Duty Warehouse Racking Systems are the solution you need. With:

80% less floor space usage.

30% faster material handling.

CE, UE, and ISO 9001 certification.

Customizable designs starting at $4,099.

Direct integration with your production machines.

We’re not just selling a rack—we’re helping you build a more efficient, safer, and profitable warehouse. Whether you’re a small metal shop in Texas or a large manufacturing plant in Germany, we’ll design a system that fits your workshop like a glove.

Contact Herochu today to schedule a free consultation. Our team will:

Assess your storage needs (send us photos of your space or a list of your materials).

Design a custom racking solution (with a detailed 3D model, so you can see how it fits).

Provide a transparent quote (no hidden fees).

Answer all your questions (about PLC integration, maintenance, or customization).

Let’s turn your warehouse from a bottleneck into a competitive advantage. Contact us now—your streamlined storage journey starts today.

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
